Brush Type Automatic Self Cleaning Type Filter For Cooling Water Filtration

The Brush Type Automatic Self Cleaning Type Filter For Cooling Water Filtration adopts brush self-cleaning technology to realize automatic cleaning and regeneration of filter screen without manual intervention, and has the advantages of high filtration accuracy, strong processing capacity, stable operation and simple maintenance, mainly used in industrial circulating cooling water system to filter and protect water quality.



Structure

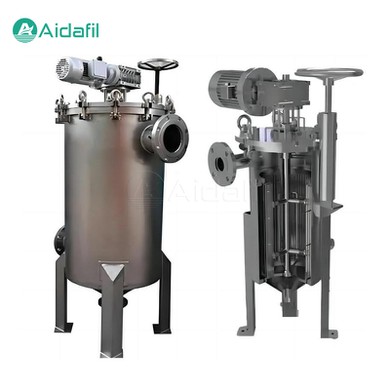

The Brush Type Automatic Self Cleaning Type Filter For Cooling Water Filtration is mainly composed of filter body, driving device, control system, filter screen, cleaning brush and other components.

(1) Filter body: used to contain circulating cooling water, with a filter screen inside to intercept suspended matter and particulate matter in the water.

(2) Drive device: Drive the filter screen for cleaning and regeneration, usually by pneumatic or electric drive.

(3) Control system: It is used to control the operating status, cleaning time and frequency of the filter, etc., enabling automated control.

(4) Filter: used to intercept suspended matter and particulate matter in water, usually made of stainless steel wire or polyester fiber.

(5) Cleaning brush: used to clean the filter to remove dirt from the filter, usually made of polyester fiber.



Parameters

Comprehensive Parameters
Operating flow		50m³/h - 2500m³/h
Working pressure		2bar - 16bar (230psi)
Filter area		3000cm² - 20000 cm²
Inlet / outlet diameter		DN50 - DN900
Ultra-high operating temperature		80°C
Cleaning Parameters
Blow-down valve	Cleaning time		Water consumption per cleaning
DN25, DN50, DN80	15 - 60S		≤ 1%



Working principle

The working principle of the Brush Type Automatic Self Cleaning Type Filter For Cooling Water Filtration is as follows:

When the circulating cooling water passes through the filter, the suspended solids and particles in the water are intercepted by the filter screen, so as to realize the filtration effect. As the filtration time passes, the dirt on the filter screen gradually increases, and the pressure in the filter increases. When the pressure reaches the set value, the control system starts-up drive device to drive the cleaning brush to clean the filter screen. During the cleaning process, the dirt on the filter screen is removed by the cleaning brush and discharged through the drainage system. After the cleaning is completed, the filter returns to the filtered state and continues to filter the circulating cooling water.



Characteristics and advantages

1. High-efficiency filtration. The brush type automatic self-cleaning filter for cooling water adopts a high-efficiency filter screen, which can effectively intercept suspended solids and particulate matter in the water and ensure the quality of circulating cooling water.

2. Automatic cleaning. The brush type automatic self-cleaning filter has an automatic cleaning function, eliminating the need for manual intervention and reducing maintenance costs.

3. Thorough cleaning. The cleaning brush cleans the filter screen in an all-round way to ensure that the surface of the filter screen is clean and the filtration effect is stable.

4. Stable operation. The brush type automatic self-cleaning filter for cooling water adopts an advanced control system for stable and reliable operation.

5. Simple maintenance. The filter structure is simple, maintenance is convenient, and operation and maintenance costs are reduced.

6. Energy conservation and environmental protection. Through automatic cleaning and regeneration, water consumption is reduced, which is conducive to environmental protection.

7. Wide range of applications. The brush type automatic self-cleaning filter is suitable for cooling water systems of all sizes, and can be designed and customized according to actual conditions.



Application field

1. Industrial sector. Circulating cooling water systems for manufacturing, petrochemical, power plants, steel mills, textile mills, and other enterprises.

2. Construction field. Central air-conditioning cooling water systems for large venues, office buildings, hotels, apartments, and other buildings.

3. Environmental protection. Cooling water systems in environmental protection projects such as wastewater treatment and wastewater reuse.

4. Agriculture. Cooling water systems in agricultural fields such as farmland irrigation and aquaculture.

5. Other fields. Cooling water systems for transportation such as subways, tunnels, and airports.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
