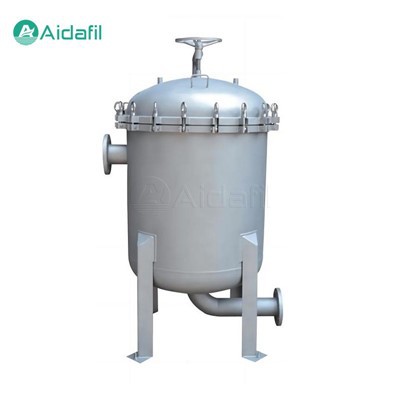

Efficient Multi-Bag Filter Housing

In modern industrial production, especially in chemical, pharmaceutical, food processing and other fields, pure liquid medium is the key to ensure product quality and production safety. In order to achieve this goal, the efficient multi-bag filter housing plays an indispensable role as an efficient and reliable filtration equipment. Its design is exquisite and easy to operate, especially suitable for handling large flow liquids, and the filter bag needs to be replaced after long-term operation, which greatly reduces maintenance costs and operation complexity.



Structure Revealing --- Core Component Analysis

- Filter bag system. The core of the efficient multi-bag filter housing is its multiple filter bags, which are usually made of polypropylene, nylon or other chemically resistant materials. Filter bags of different materials and precision are selected according to different filtration requirements. Each filter bag works independently and together forms a large-area filtration interface.

- Support structure. The filter bag is placed in a fine metal basket or filter blue, which is electropolished and punched to not only support the filter bag, but also ensure the uniform distribution of liquid, reduce turbulence, and improve filtration efficiency.

- Liquid inlet and outlet. The equipment is designed with a clear liquid inlet and outlet, and the liquid medium enters from one side or the top. After being filtered through the filter bag, the clean liquid flows out from the other side or the bottom, while impurities are trapped in the filter bag.

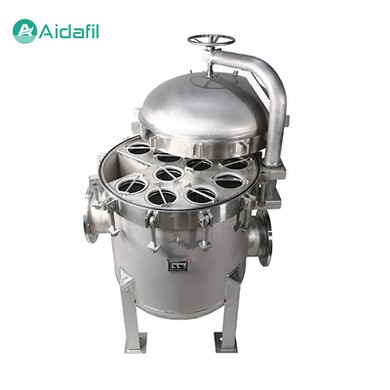

- Quick-opening design. In order to facilitate maintenance, multi-bag filters are usually equipped with a quick-opening and closed upper cover, which makes the inspection and replacement of filter bags simple and fast, greatly reducing downtime.



Filtration principle and efficiency improvement

- Precise filtration, efficient separation

The working principle of the efficient multi-bag filter is based on the pressure-driven solid-liquid separation process. When a liquid containing impurities is pumped into the filter, under the action of pressure, the liquid is forced through the filter bag, while impurities such as particulate matter and suspended matter are intercepted by the filter bag. Due to the large number of filter bags and the large total filtration area, it can maintain good filtration speed and effect even in the face of large flow of liquid.

- Evenly distributed, turbulence slowed down

The liquid medium flows uniformly from the top of the filter bag, ensuring that the fluid distribution on the entire surface of the filter bag is almost uniform, reducing the filtration unevenness caused by turbulence, and further improving the precision and efficiency of filtration.



Wide application field

- Industry coverage is extensive

The efficient multi-bag filter housing plays an important role in chemical, pharmaceutical, food and beverage, water treatment, petroleum refining, paint manufacturing and other industries due to their high efficiency and reliability. Whether it is pre-filtration or end point filtration, its shadow can be found.

- Customized service

For different industries and applications, manufacturers usually provide customized services, including but not limited to special material filter bags, non-standard size designs, etc., to meet the individual needs of customers.



Multi-bag model table

Model	Reference flow rate	Inlet & outlet	Cylinder Specifications	Filter bag specification / number	Design pressure	Opening method
ADB-2 II	40-100 T/H	DN80 - DN125	ø 460*1530*3mm	2# / 2 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-3 II	60-150 T/H	DN100 - DN150	ø 510*1530*3mm	2# / 3 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-4 II	80-200 T/H	DN100 - DN150	ø 610*1530*4mm	2# / 4 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-5 II	100-250 T/H	DN100 - DN150	ø 660*1530*4mm	2# / 5 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-6 II	120-300 T/H	DN100 - DN150	ø 710*1530*5mm	2# / 6 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-8 II	160-400 T/H	DN150 - DN250	ø 810*1530*5mm	2# / 8 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-10 II	200-500 T/H	DN150 - DN250	ø 960*1530*5mm	2# / 10 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-12 II	240-600 T/H	DN150 - DN300	ø 1110*1530*6mm	2# / 12 filter bags	1.0MPA	Quick Open Eye Bolts



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
