Superior Quality Leaf Filter For Liquid Clarification

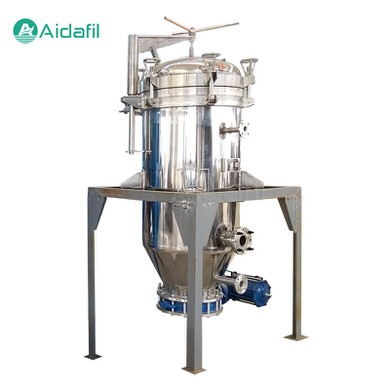

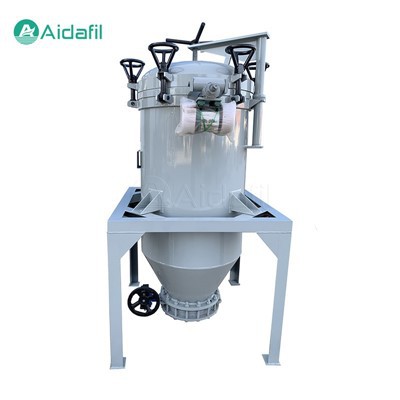

The superior quality leaf filter for liquid clarification is mainly composed of a stainless steel airtight cylinder and a double-sided filter plate. The stainless steel airtight cylinder has good corrosion resistance and wear resistance, which can ensure the stable progress of the filtration process. The double-sided filter plate is made of high-strength, high-rigidity material, which has a large filtration area and high filtration efficiency. Both sides of the filter plate are equipped with filter media, which can perform filtration and backwashing operations at the same time, which greatly improves the filtration efficiency.



The working principle of the superior quality leaf filter is that during the filtration process, the liquid to be filtered enters the filter from the feed port and is filtered through the filter medium of the filter cloth and filter plate. The filtered liquid flows out from the liquid outlet, while the filter residue is trapped on the filter medium. When the filter residue on the filter medium accumulates to a certain extent, the vibrating slag removal device is activated to remove the filter residue from the filter medium through vibration, and then discharged through the slag discharge port.



Product data

Model	Filtering area (m2)	Cylinder diameter (mm)	Inlet	Outlet	Overflow port	Slag outlet (mm)	Height (mm)	Weight (kg)
ADYP-4	4	550	DN50	DN80	DN40	300	2010	600
ADYP-8	8	700	DN50	DN80	DN40	400	2425	800
ADYP-10	10	800	DN50	DN80	DN40	400	2630	900
ADYP-15	15	900	DN50	DN80	DN40	400	2650	1100
ADYP-20	20	1100	DN50	DN80	DN40	400	3000	1500
ADYP-30	30	1200	DN50	DN80	DN40	500	3050	1750
ADYP-40	40	1300	DN65	DN80	DN50	500	3280	2100
ADYP-50	50	1400	DN65	DN80	DN50	600	3450	3000
ADYP-60	60	1500	DN65	DN80	DN50	600	3630	3100
ADYP-80	80	1600	DN65	DN80	DN50	700	3860	3600



Main features

The main features of the Superior Quality Leaf Filter For Liquid Clarification are as follows:

1. High efficiency. Due to the use of double-sided filter plates and vibrating slag removal devices, the filtration process is more efficient and the filtration time is greatly shortened.

2. Energy saving and environmental protection. The leaf filter adopts a closed design to avoid gas leakage during the filtration process and reduce environmental pollution. At the same time, the use of a vibrating slag removal device reduces energy consumption and realizes energy saving.

3. Fully automatic operation. The leaf filter adopts a PLC control system to achieve fully automatic operation, reducing the tedious manual operation and improving production efficiency.

4. Precision . The leaf filter uses a high-precision filter medium, which can effectively remove tiny particles in the liquid and ensure the filtration quality.

5. Widely used. The leaf filter is suitable for liquid filtration in a variety of industries, such as petroleum, paint, pigment, food, beverage, pharmaceutical, oil, chemical, etc., with high versatility.

6. Compact structure. The leaf filter is designed vertically, with a small footprint, making it easy to install and maintain.

7. Safe and reliable. The leaf filter is made of stainless steel, which has strong corrosion resistance and wear resistance, ensuring the safety and reliability of the equipment.



Application field

The Superior Quality Leaf Filter For Liquid Clarification is widely used in the following fields:

1. Petrochemical. Used for precision filtration of lubricating oil, transformer oil, fuel oil and other oils to ensure product quality.

2. Food and beverage. Used for decolorization and filtration of liquids such as beer, juice, and beverages to improve product taste and stability.

3. Pharmaceutical industry. Used for precision filtration of pharmaceutical liquids, solvents, activated carbon and other materials to ensure stable efficacy.

4. Oil industry. Used for decolorization and filtration of vegetable oils, animal oils and other oils to improve product quality.

5. Coatings and pigments. Used for precision filtration of paints, pigments and other pigments to ensure the purity of the color of the product.

6. Environmentally friendly water treatment. Used in wastewater treatment, wastewater reuse, and other fields to achieve the recycling of water resources.



Operation & Maintenance

1. Installation & Commissioning. Follow the manufacturer's installation manual, ensuring the equipment is correctly placed, all interfaces are sealed properly, and the backwashing system (if present) is connected correctly.

2. Monitoring. Regularly check parameters like filter inlet-outlet differential pressure, flow rate, backwashing frequency, adjusting operating conditions accordingly. When the differential pressure exceeds the set value, initiate backwashing or perform manual cleaning.

3. Maintenance. Based on usage, periodically conduct internal inspections of the equipment, removing scale buildup, checking blade wear, and replacing blades if necessary. Maintain the proper functioning of the backwashing system, regularly inspecting components like backwash pumps, valves, etc.

4. Fault Handling. In the event of decreased filtration efficiency, abnormal increases in differential pressure, leaks, etc., promptly stop the equipment for inspection, addressing the issues before resuming operation. For severe faults, consult professional personnel for repair.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
