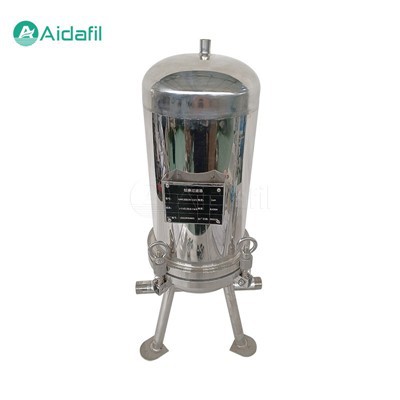

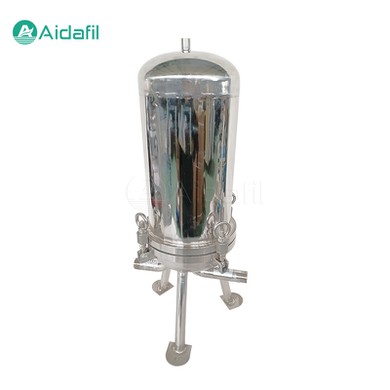

High-Precision Titanium Rod Filter

The high-precision titanium rod filter is a sophisticated filtration system that utilizes titanium powder sintered filter elements as its core component. It is primarily employed for coarse or intermediate filtration in various industries, including pharmaceutical, chemical, and water treatment.



The heart of the high-precision titanium rod filter is the titanium powder sintered filter element. These elements are made by compacting fine titanium powder and then sintering it at high temperatures to create a porous structure. This unique structure allows the filter to have a large surface area, enabling it to capture a wide range of contaminants.



Contaminant Removal Capabilities

The high-precision titanium rod filter has the capability to remove a wide range of contaminants:

1. Heavy Metals: Mercury, lead, cadmium, zinc, iron, manganese, and chromium can all be effectively removed from water or other liquids.

2. Radioactive Substances: Strontium and radium, which pose significant health risks, can be filtered out using these systems.

3. Polymer Compounds: Arsenic, hydrogen sulfide, sulfur compounds, and residual chlorine can also be eliminated, improving the overall water quality.



Parameters

Main material			304/316L stainless steel
Flow rate			3~100T/h
Working pressure			0.1-0.6Mpa
Specification of filter elements			5, 10, 20, 30, 40
Operating temperature			-10~200°C
Filtering precision			0.45~100um
Joint of filter elements			M20, M30, 222, 226
Specification of titanium rod			Φ60×300, Φ60×510, Φ60×750, Φ60×1000
Models	10 in. (diameter/height)	20 in. (diameter/height)		30 in. (diameter/height)	40in. (diameter/height)
1 filter element	102/708	102/958		102/1208	102/1048
3 filter elements	219/850	219/1100		219/1350	219/1600
5 filter elements	250/850	250/1100		250/1350	250/1600
7 filter elements	273/850	273/1100		273/1350	273/1600
9 filter elements	300/850	300/1100		300/1350	300/1600
11 filter elements	325/850	325/1100		325/1350	325/1600
15 filter elements	350/850	350/1100		350/1350	350/1600
17 filter elements	375/850	375/1100		375/1350	375/1600
19 filter elements	700/850	400/1100		400/1350	400/1600



Performance Features

1. High Corrosion Resistance

Due to the use of high-purity titanium, these filters exhibit excellent resistance to corrosion, making them suitable for use in aggressive chemical environments and saltwater applications.

2. High Temperature and Pressure Ratings

High-precision titanium rod filters can operate at elevated temperatures and pressures, making them ideal for use in high-stress industrial processes.

3. Long Service Life

The durable construction and lack of consumable parts contribute to a long service life with minimal maintenance requirements.

4. Reusability

These filters are designed to be cleaned and reused, reducing waste and contributing to a more sustainable production process.



Applications

The high-precision titanium rod filter is widely used in various industrial and commercial applications, including:

1. Water treatment. Drinking water purification, wastewater treatment, seawater desalination

2. Food and beverage. Beverage clarification, wine filtration, juice filtration

3. Pharmaceuticals. Biopharmaceutical production, vaccine manufacturing, sterile filtration

4. Chemical industry. Catalyst recovery, chemical purification, solvent filtration

5. Petroleum and natural gas. Crude oil filtration, natural gas purification, drilling fluid filtration

6. Removal of Heavy Metals, Radioactive Substances, and Polymeric Compounds



In addition to removing impurities, the high-precision titanium rod filter is particularly effective in removing heavy metals, radioactive substances, and polymeric compounds from fluids.

1. Heavy metals. The titanium rod filter can effectively remove heavy metals such as mercury, lead, cadmium, zinc, iron, manganese, and chromium. These metals are often found in industrial wastewater and can pose significant health and environmental risks.

2. Radioactive substances. The titanium rod filter can also remove radioactive substances such as strontium and radium from fluids. These substances can be found in nuclear waste and can be harmful to human health.

3. Polymeric compounds. The titanium rod filter can remove polymeric compounds such as arsenic, hydrides, sulfides, and residual chlorine from fluids. These compounds can cause taste and odor problems in water and can also be harmful to health.



Advantages

The high-precision titanium rod filter offers numerous advantages:

1. High filtration efficiency. The depth filtration mechanism effectively removes a wide range of impurities, including solid particles, bacteria, and viruses.

2. Excellent corrosion resistance. Titanium's high corrosion resistance makes these filters suitable for harsh environments with extreme pH values and corrosive chemicals.

3. High temperature resistance. The titanium rod filter can operate at high temperatures, making them ideal for applications involving high-pressure steam and high-temperature fluids.

4. Biocompatibility. Titanium's biocompatibility makes these filters suitable for use in the food, beverage, and pharmaceutical industries.

5. Easy to clean. The sintered titanium powder filter elements can be easily cleaned by backwashing or chemical cleaning, ensuring a long service life.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
