Agricultural Irrigation Filters

Agricultural irrigation systems come in a variety of shapes and sizes. Source water can come from a variety of sources: rivers, lakes, streams, storm ponds, canals, etc. Depending on the crop or material to be irrigated, the system may include a center pivot, drippers, sprinklers, or other method of application.

The level of protection to be furnished is dependent on the water source and the method of application. Certain water sources may be more contaminated with solids than others, requiring the use of multiple filters or filters with extended screen areas. In addition, the finer the openings in the application element, the finer the screen required, which also impacts filter selection. For example, a drip irrigation system drawing water from a canal requires much finer filtration and more screen area than a center pivot system taking water from a lake.
Particularly suitable for agricultural irrigation projects.
The equipment is backwashed by hydraulic control, the pressure difference inlet and outlet reaches 0.05Mpa, and the filtration precision can reach 25um-3000um. The capacity can reach 1300m3/h.

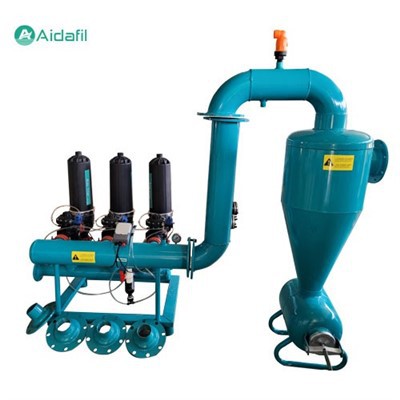

Agriculture Centrifugal Water Sand Filter for Drip Irrigation System
1. The Centrifugal Filter is applied to well water or U-shape channel water for separating impurity particles such as fine sand and stones contained in the water.
2. It is widely used in the separation of particles from tap water and water equipment to effectively protect the pipeline pump, water pipeline, valves and water tanks from wear and tear, and reduce maintenance costs.
3. Snail head structure design, can guide the water flow to the bottom of the vertebral body to rotate at high speed, resulting in stronger centrigugal force.
4. Reinforced nylon material, no rust, wear and corrosion resistance.
NOTED:
1. Centrifugal filter as a coarse filter, often with a mesh or laminated filter at the same time.
2. When is installing, install a straight pipe with the same diameter as the water inlet before the water inlet of the filter. Then length is 10-15 times the diameter of the water inlet to ensure the smooth flow of the water.
3. Centrifugal filter can use fertilizer tank together, will have wonderful fertlizer and filter affect.
