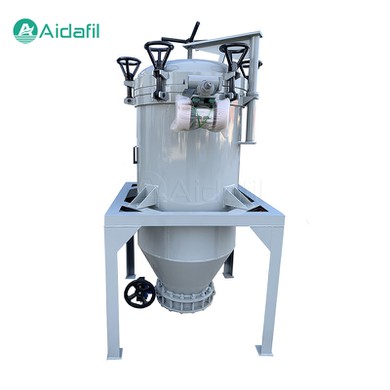

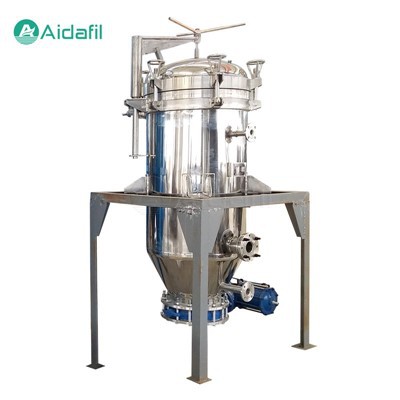

Robust Leaf Filter For Clarification Filtration

The Robust Leaf Filter For Clarification Filtration is an important industrial filtration equipment, mainly used for the filtration of various liquid materials to remove solid impurities. This filter is named after its unique blade structure, with high filtration efficiency and accuracy, and is widely used in oil, chemical, food, pharmaceutical and other industries. It relies on blades as the filter medium to effectively remove solid impurities from liquids. This kind of filter has high filtration efficiency and good sealing performance, which can achieve precise and efficient filtration results.



Structure and principle

A leaf filter is usually composed of a filter cylinder, a blade, a drive device, a seal, and a slag removal device. Its core component is a blade, which is usually made of metal or other materials, shaped like a fan blade, and arranged in a spiral along the inner wall of the filter cylinder. Small filter chambers are formed between the blades. When the liquid material passes through these chambers, solid impurities are trapped on the blades, and the filtered cleaning liquid flows out through the gaps between the blades.



The filtration process usually involves the following steps:

1. Feed. The liquid material to be filtered enters the filter cylinder through the feed port.

2. Filtration. The liquid is guided by the blade, solid impurities are trapped, and the cleaning liquid flows into the liquid collecting chamber through the blade gap.

3. Slag discharge. After the filtration has reached a certain period of time, the solid impurities accumulated on the blade need to be removed. This is usually achieved by opening the slag discharge port or rotating the blade to discharge the impurities.

4. Cleaning. After slag removal, in order to maintain filtration efficiency, the blades need to be cleaned. This can be done by manual or automatic cleaning devices.

5. Circulation. After cleaning, the blade is put back into use and the filtration operation continues.



Parameter data

Model	Filtering area (m2)	Cylinder diameter (mm)	Inlet	Outlet	Overflow port	Slag outlet (mm)	Height (mm)	Weight (kg)
ADYP-4	4	550	DN50	DN80	DN40	300	2010	600
ADYP-8	8	700	DN50	DN80	DN40	400	2425	800
ADYP-10	10	800	DN50	DN80	DN40	400	2630	900
ADYP-15	15	900	DN50	DN80	DN40	400	2650	1100
ADYP-20	20	1100	DN50	DN80	DN40	400	3000	1500
ADYP-30	30	1200	DN50	DN80	DN40	500	3050	1750
ADYP-40	40	1300	DN65	DN80	DN50	500	3280	2100
ADYP-50	50	1400	DN65	DN80	DN50	600	3450	3000
ADYP-60	60	1500	DN65	DN80	DN50	600	3630	3100
ADYP-80	80	1600	DN65	DN80	DN50	700	3860	3600



Features and advantages

The Robust Leaf Filter For Clarification Filtration has the following characteristics and advantages:

1. High filtration efficiency

Due to the special structure of the blade, the liquid material forms a continuous filtration layer during the filtration process, which helps to improve the filtration speed.

2. Precision filtration

The filter chamber formed between the blades can capture fine impurities and achieve precision filtration.

3. Maximum processing capacity

The large filtration area and efficient filtration process enable the vane filter to handle large amounts of liquid materials.

4. Easy to operate and maintain

Compared to other types of filters, blade filters are relatively simple to operate and maintain.

5. Wide applicability

Suitable for liquid materials of different properties, such as oils, chemical raw materials, food and beverages, etc.



Application field

The Robust Leaf Filter For Clarification Filtration has a wide range of application fields, including:

1. Oil industry

Used for refining and filtering vegetable oils, animal oils and other oils to remove impurities and pigments.

2. Chemical industry

Used for the filtration of chemical solvents, resins, coatings and other chemical products to ensure product purity.

3. Food industry

Used for the filtration of alcohol, beverages, syrups and other food raw materials to improve product quality.

4. Pharmaceutical industry

Used for the filtration of pharmaceutical solutions to ensure the purity and safety of medicines.

5. Environmental protection field

Used for wastewater treatment, removal of harmful substances, and recycling of water resources.



Maintenance

In order to ensure the long-term stable operation of the Robust Leaf Filter For Clarification Filtration, regular maintenance and maintenance is necessary.

1. Clean the blades

Clean the blades regularly to prevent the accumulation of solid impurities from affecting the filtration effect.

2. Check the seals

Check whether the seals are worn or damaged, and replace them if necessary to ensure the sealing performance of the equipment.

3. Lubricate moving parts

Lubricate the drive and other moving parts to reduce wear and extend service life.

4. Check the slag discharge device

Ensure that the slag discharge port is smooth, and if there is any blockage, it needs to be cleaned in time.

5. Regular replacement of parts

Regular replacement of wearing parts, such as filters, seals, etc., according to the usage.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
