High Mechanical Strength Titanium Rod Filter

The High Mechanical Strength Titanium Rod Filter represents an advanced filtration system that employs titanium powder sintered filter elements as its core components. It is primarily utilized for coarse or intermediate filtration applications. The filtration area of the titanium rod filter is large, which can meet the filtration requirements of large flow media.



The main features of the high mechanical strength titanium rod filter element include uniform structure, narrow pore size distribution, high separation efficiency, high porosity, low filtration resistance, good permeability, high temperature resistance, corrosion resistance, no particle shedding, good mechanical properties, low pressure difference, small footprint, large flow, strong antimicrobial ability, good molding process, overall non-welding length up to 1000mm, online regeneration, easy cleaning and long service life. The titanium rod filter are widely used in the pharmaceutical industry, water treatment industry, food industry, bioengineering, chemical industry, petrochemical industry, metallurgical industry and gas purification fields.



Construction and Materials

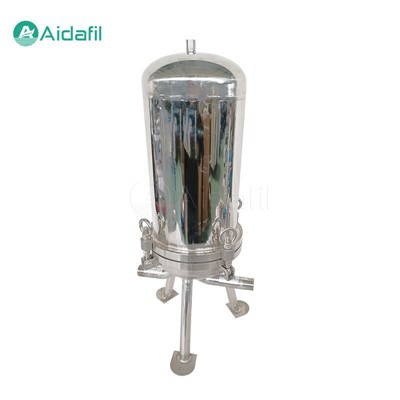

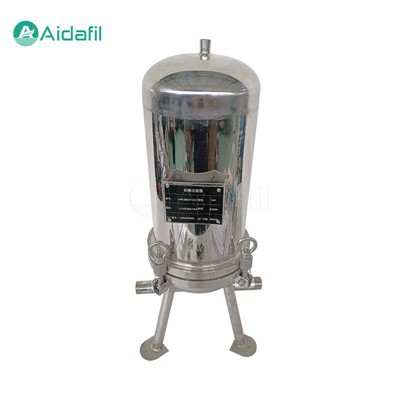

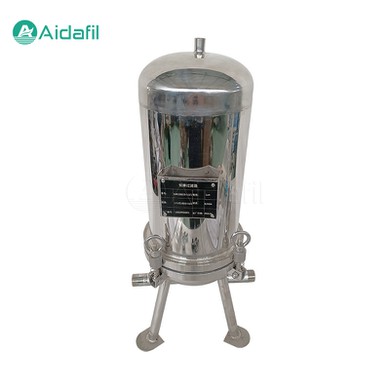

The high mechanical strength titanium rod filter comprises a filter element constructed from titanium powder sintered material, housed within an outer shell typically made of 316L or 304 stainless steel. The filter element is composed of a porous structure that traps impurities while allowing the passage of clean fluid. The stainless steel shell ensures durability and compliance with GMP standards.



Operating Principle

The working principle of the high mechanical strength titanium rod filter is to use the titanium rod filter element to intercept the impurities in the medium, so as to achieve the purpose of purifying the medium. When the medium containing impurities passes through the titanium rod filter element, the impurities are intercepted on the surface of the filter element, and the clean medium flows out through the internal channel of the filter element. Due to the high strength and toughness of the titanium rod filter element, it can maintain stable filtration performance in harsh environments such as high pressure and high temperature.



Key Parameters

Filtration accuracy : 0.45 - 100μm

Filter flow : 3 - 100m³/h

Joint of filter elements : M20,M30,222,226

Working temperature : -10 - 200°C

Working pressure : 0.1 - 0.6Mpa



Benefits

The main benefits of high mechanical strength titanium rod filters include:

1. High precision. Due to the microporous structure of the titanium powder sintered filter element, the titanium rod filter has high filtration accuracy and can effectively remove tiny solid particles and colloidal substances.

2. High temperature resistance and corrosion resistance. The characteristics of titanium material enable the titanium rod filter to operate normally in high temperature and corrosive environments, making it less susceptible to damage.

3. High mechanical strength. The high strength of titanium material makes the titanium rod filter have good pressure resistance and is not easy to break.

4. Long working life. Due to the stability and corrosion resistance of the titanium material, the titanium rod filter has a long working life.

5. Easy to clean. The filter element of the titanium rod filter can be cleaned by backwashing, etc., for easy maintenance.

6. Wide range of applications. Due to the above characteristics, titanium rod filters are widely used in food and beverage, water treatment, chemical industry, metallurgy, light industry, shipbuilding, medicine, and other industries.



Applications

The high mechanical strength titanium rod filter finds wide application in various industries, including:

1. Pharmaceutical Industry. Purification of water used in pharmaceutical manufacturing processes.

2. Food and Beverage Industry. Removal of impurities and contaminants from liquids used in food and beverage production.

3. Chemical Industry. Purification of water used in chemical processes.

4. Water Treatment. Removal of heavy metals, arsenic, and other contaminants from drinking water.

5. Other Applications. Purification of water in power plants, electronics manufacturing, and other industrial settings.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
