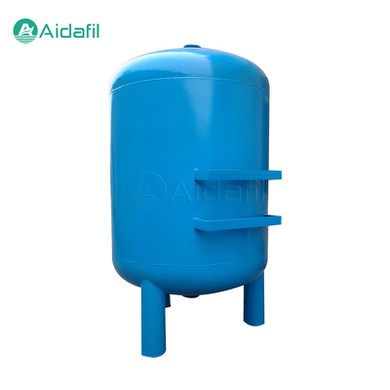

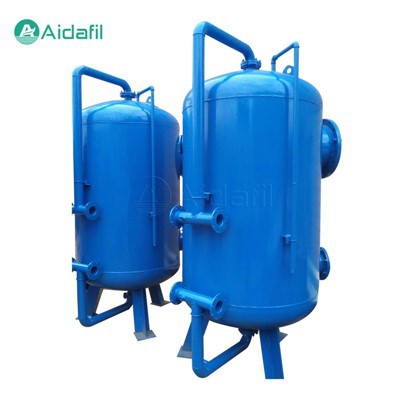

Iron And Manganese Removal Manganese Sand Filter

The iron and manganese removal manganese sand filter is designed to remove iron and manganese from water sources. This filtration system employs manganese sand as its primary filtering medium. Under specified working pressure, water flows through the filter layer from top to bottom, allowing the turbid water to pass through a certain thickness of granular filter media. The process not only oxidizes iron and manganese ions but also adsorbs and filters them out, effectively reducing their concentrations in the water.



The Oxidation Process

A key feature of the manganese sand filter is its ability to oxidize water contaminants. As water passes through the filter layer, the manganese sand catalyst facilitates the oxidation of ferrous (Fe2+) and manganous (Mn2+) ions to ferric (Fe3+) and manganic (Mn4+) ions, respectively. This oxidation process is crucial because it transforms the soluble, toxic ions into insoluble precipitates, which are then removed through filtration.



Importance of Removing Iron and Manganese

Iron and manganese are commonly found in groundwater, often occurring together. High levels of iron in water can lead to a metallic taste, affecting water quality and consumer satisfaction. In industrial applications such as paper manufacturing, textiles, dyeing, chemicals, and leather processing, high iron content can adversely impact product quality and cause equipment corrosion. Iron-rich water can also foster iron-oxidizing bacteria, leading to pipe blockages and the appearance of 'red water.' Similarly, water with high manganese content exhibits similar issues, including color, odor, and taste, which compromise the quality of various industrial products and household activities.



Parameters

Rated flow	1~200m³/h
Working pressure	0.75Mpa
Working temperature	5~50°C
Backwash strength	13~16L/m2S
Backwash duration	5~8min
Material	Q235 rubber / phenolic epoxy resin / 304, 316L
Before filtration	iron≤15mg/L manganese≤3mg/L
After filtration	iron<0.3mg/L manganese<0.1mg/L
Voltage	220V, 50Hz
Dimension	ф400~ф3200



The Manganese Sand Filter's Efficiency

The manganese sand filter is highly efficient in removing iron and manganese due to the nature of manganese sand. The filter medium's adsorption capacity is enhanced by regular backwashing, which also helps to prevent filter channeling and maintains the filter's overall performance. The filter's lifespan can be prolonged through proper operation and maintenance, ensuring a consistent supply of high-quality water.



Benefits of Manganese Sand Filter

The Manganese Sand Filter offers several advantages in water treatment:

1. Efficiency. It effectively removes iron and manganese, improving water quality.

2. Cost-Effectiveness. Once properly installed and maintained, the system operates at a low cost.

3. Scalability. The filter can be customized to accommodate various water flow rates and quality requirements.

4. Sustainability. Regular backwashing allows for the reuse of filter media, minimizing waste.

5. Safety. The filter medium does not release any harmful byproducts into the water.



Applications of Manganese Sand Filters

1. Drinking Water Treatment. Manganese sand filters are commonly used in municipal water treatment plants and household filtration systems to ensure safe and clean drinking water free from iron and manganese contaminants.

2. Industrial Processes. Industries such as papermaking, textile manufacturing, chemical production, and leather processing rely on manganese sand filters to maintain water quality and protect equipment from the adverse effects of iron and manganese.

3. Agricultural Sector. Manganese sand filters play a vital role in agricultural irrigation systems by preventing clogging of irrigation pipes due to iron and manganese precipitation, thereby improving crop yield and quality.

4. Environmental Remediation. Manganese sand filters are instrumental in environmental remediation projects aimed at treating contaminated water bodies and restoring ecosystem health.



Implementation and Maintenance

For optimal performance, the manganese sand filter must be installed and operated correctly. It is essential to monitor the water quality regularly to ensure that the filter is functioning as intended. Backwashing and chemical cleaning should be performed according to a predetermined schedule to prevent fouling and maintain the filter's efficiency.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
