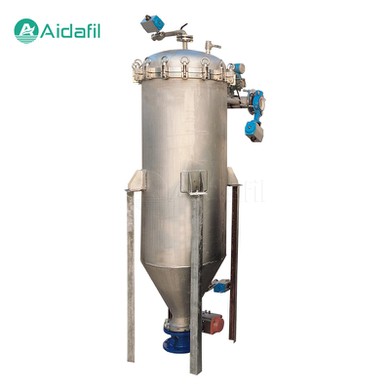

Top Quality Automatic Operation Candle Filter

The top quality automatic operation candle filter utilizes vertically arranged filter elements within a pressure vessel to achieve efficient filtration. It is specifically designed for clarifying liquids containing a relatively low concentration of solids. This compact filtration system offers high productivity, dry cake discharge, and versatile cake handling capabilities.



The candle filter consists of multiple porous filter elements, or candles, housed within a sealed container. Over these elements, a filter cloth or other suitable filter media is fitted to capture the solids.



During operation, slurry is pumped into the filter, where the liquid portion passes through the filter media and into the center of the filter elements. The clarified liquid, or filtrate, then flows to a collection point and is discharged. Before a filter cake has formed on the filter elements, the filtrate is recirculated back into the filter to continue the filtration process. This recirculation continues until a sufficient filter cake has built up to meet the filtration criteria.



Once the filter cake has reached the desired thickness, a signal is sent to stop the recirculation of the filtrate. At this point, the filtrate is directed through a three-way valve to the next stage of the process for further use. The filter cake, meanwhile, remains on the filter elements until it is ready to be discharged.



Specification

Filter rating	0.22–100 μm (depends on filter elements and functional design)
Standard design pressure rating	0.6 MPa, 1.0 MPa, 1.6 MPa, 2.0 MPa, higher pressures are available upon request.
Filter bag material	PP, PET, nylon, PPS, PVDF
Filter element material	SS316L, PP, PVDF
Flow rate range	10–300 m³/h
Filter area	0.9–60 m2, other sizes are available upon request.
Housing diameter	250–2500 mm
Back flushing differential pressure	0.2–0.3 MPa
Inlet & outlet size	2" – 24"
Housing material	SS304, SS316L, carbon steel or customized.
Inner corrosion protection	PTFE, PVDF (suitable for strong acids and bases and other corrosion resistance requirements)
Cake discharge nozzle	Soft seal or hard seal butterfly valve



Advantages of Candle Filters

1. High Productivity. Candle filters offer high filtration rates due to the large surface area provided by the multiple filter elements.

2. Dry Cake Discharge. The filter cake is discharged in a dry state, eliminating the need for additional drying processes.

3. Versatile Cake Handling. The filter cake can be handled in various ways, including manual discharge, automated discharge, or reslurrying for further processing.

4. Compact Design. Candle filters are compact and require minimal space for installation and operation.

5. Automatic Operation. The filtration process is fully automated, minimizing operator intervention and ensuring consistent performance.



Applications

Our top quality automatic operation candle filters are widely used in various industries for a range of applications, including:

1. Beverage Clarification. Filtration of beer, wine, and other beverages to remove solids and improve clarity.

2. Food Processing. Clarification of fruit juices, vegetable oils, and other food products.

3. Chemical Processing. Filtration of chemical solutions, pigments, and other process fluids.

4. Pharmaceutical Manufacturing. Clarification of active pharmaceutical ingredients (APIs) and other pharmaceutical solutions.

5. Water Treatment. Filtration of raw water, wastewater, and industrial process water.



Features of Top Quality Candle Filters

The top quality automatic operation candle filters incorporate advanced features to enhance their performance and reliability:

1. High-Quality Filter Media. The filter cloths are made from durable and high-efficiency materials that ensure optimal filtration and long service life.

2. Robust Construction. The filter vessel and other components are constructed from corrosion-resistant materials to withstand harsh operating conditions.

3. Advanced Control System. The filter is equipped with a sophisticated control system that monitors and adjusts filtration parameters automatically.

4. Safety Features. The filter incorporates safety features such as pressure relief valves and interlocks to ensure safe operation.

5. Easy Maintenance. The filter is designed for easy maintenance and cleaning, minimizing downtime and maintenance costs.



Maintenance

Regular maintenance is essential to ensure the optimal performance of the Candle Filter. This includes cleaning or replacing the filter media as needed, checking the integrity of the filter elements, and ensuring that all seals and valves are functioning correctly. Most modern candle filters are designed with easy access to these components, making maintenance and service straightforward.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
