Well Sealed Stainless Steel Duplex Filter

The well sealed stainless steel duplex filter is a highly versatile and adaptable filtration system, engineered for a wide range of applications. This sophisticated device is the result of ingenious design and manufacturing processes that have combined to create a filtering solution that is both robust and efficient.



Several Key Parameters

Material : Stainless steel

Working temperature : 5 - 80°C

Flow rate : 1 - 200m³/h

Design pressure : 0.6Mpa

Application : Chemical industry, refrigeration industry, food industry, pharmaceutical industry



Design and Construction

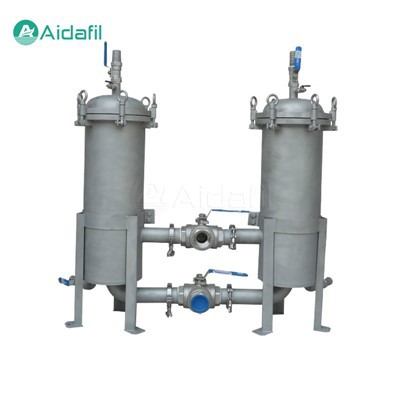

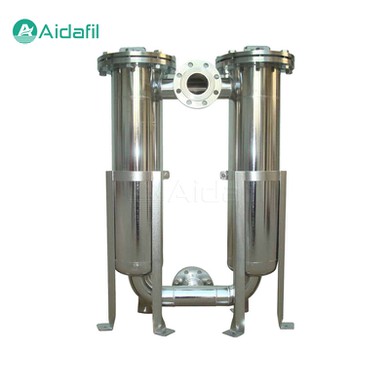

The well sealed stainless steel duplex filter boasts a novel and practical structure that sets it apart from conventional filters. It comprises two individual filter columns operating in parallel, each contributing to the overall efficiency and effectiveness of the system. The entire unit is fabricated using high-quality stainless steel, ensuring durability and resistance to corrosion in harsh environments.



Each column is a single-layer stainless steel welded structure that provides a robust framework for efficient filtration. The internal and external surfaces are meticulously polished to ensure there are no crevices for contaminants to accumulate, thus maintaining the purity of the filtered media.



One of the notable features of this filter is the inclusion of a vent valve at the top. This valve is crucial during the operation of the filter as it allows the release of trapped air, preventing any buildup that could potentially affect the filtration process or damage the system.



Connection and Seal

The piping connections on the well-sealed stainless steel duplex filter are made using an expansion fitting method. This type of connection is known for its secure hold and leak-proof capabilities, which have been verified through a stringent water pressure test of 0.3Mpa. Such testing ensures that the filter can withstand the pressure of fluids being filtered without any compromise in its structural integrity.



The three-way external threaded cock is another highlight of this design. It allows for flexible control over the flow of fluids through the filter, enabling users to direct fluids either through the filter columns or bypass them entirely. This feature greatly enhances the operational versatility of the equipment.



Operation and Maintenance

The well-sealed stainless steel duplex filter is renowned for its ease of operation and simplicity in maintenance. Its compact structure means it can be seamlessly integrated into existing systems without requiring significant modifications or additional space. The user-friendly design ensures that operators can manage the filtration process effectively with minimal training.



When it comes to maintenance, the dual-filter setup allows one side to be in service while the other undergoes cleaning or replacement. This arrangement significantly reduces downtime and keeps production lines running efficiently. The straightforward construction of the filter also facilitates easy disassembly for routine cleaning or component replacement, minimizing maintenance costs and labor.



Applications

The versatility of the well-sealed stainless steel duplex filter makes it suitable for a wide array of applications across various industries. Its ability to handle high flow rates while maintaining effective filtration makes it ideal for pharmaceutical, chemical, food and beverage, and power generation sectors, among others. The use of stainless steel not only provides exceptional resistance to corrosive substances but also ensures compliance with strict hygiene standards, which is particularly important in the processing of sensitive or consumable products.



In summary, the well-sealed stainless steel duplex filter is a versatile and efficient filtration system suitable for a wide range of applications. Its unique design, which includes parallel filtering, excellent sealing properties, high flow capacity, and ease of operation, makes it an ideal choice for industries that require reliable and effective filtration. The use of high-quality stainless steel materials ensures durability and resistance to corrosion, making the filter suitable for use in challenging environments. With its compact design and easy maintenance, the well-sealed stainless steel duplex filter is an excellent choice for any filtration requirement.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
