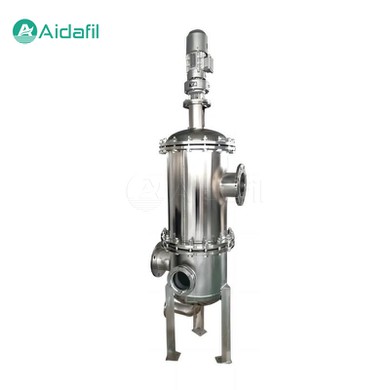

Smart Fully Automatic Backwash Filter

The smart fully automatic backwash filter is a high-efficiency filtration device, widely used in various fields, including metallurgy, chemical industry, petroleum, papermaking, medicine, food, mining, electric power and urban water supply. The design of this automatic backwash filter is simple and easy to operate. It has the functions of automatic cleaning and sewage discharge, which can effectively improve filtration efficiency and reduce labor costs.



Technical Parameters

Filtration precision	20 - 400 microns
System working pressure	0.2 - 1.0 Mpa
Water pressure required for backwashing	≥0.18 Mpa
Medium temperature	<60 degrees centigrade
Power supply voltage	AC 220V 1A
Control output voltage	DC 24V 1A per channel
Control mode	Differential pressure, timing, manual
Pipe material	Carbon steel, stainless steel, HDPE, etc.



Working principle: Self-cleaning water flow miracle

The core of the smart fully automatic backwash filter lies in its unique working principle. When water flows through the filter, impurities are trapped inside the filter screen. As impurities continue to accumulate, the water outlet of the filter screen will gradually narrow and the flow rate will decrease. At this time, the pressure sensor inside the filter will detect the change of the pressure difference and send a signal to the control system. The control system then starts the backwash program, and by changing the direction of the water flow or increasing the speed of the water flow, the impurities will fall off the filter screen and be discharged with the water flow. This process is fully automated without human intervention, achieving a true "self-cleaning" function.



Structural features: Durable, easy to maintain

The smart fully automatic backwash filter is usually composed of a shell, a filter screen, a pressure sensor, a control system, etc. The shell is made of high-strength material, which can withstand corrosion and wear in harsh environments. The filter screen selects the appropriate material and aperture according to different application scenarios to ensure efficient retention of impurities. The pressure sensor and control system are the "brain" of the filter, which monitors water quality changes in real time and responds accordingly. In addition, the fully automatic backwash filter is also designed with components that are easy to disassemble and replace, which is convenient for users to carry out daily maintenance and maintenance.



Application field: Extensive coverage, help green development

The smart fully automatic backwash filters have been widely used in many fields due to their high efficiency and intelligence. In industrial circulating cooling systems, it can effectively remove suspended solids and sediments in water to ensure cooling effects; in municipal water supply systems, it can filter out impurities such as sediment and rust in tap water to improve water quality; in agricultural irrigation systems, it can prevent impurities in irrigation water from clogging pipes and improve irrigation efficiency. In addition, fully automatic backwash filters can also be used in water treatment, chemical, pharmaceutical and other industries, contributing to environmental protection and sustainable development.



Advantage analysis: Energy conservation and emission reduction, significant benefits

The smart fully automatic backwash filter has many advantages over traditional filtration equipment. First, it can automatically clean impurities, avoiding the cost and trouble caused by frequent replacement of filter elements. Secondly, its backwash process consumes less water, and the cleaned water can be recycled, achieving the purpose of saving water resources. Finally, due to the high-efficiency filtration performance of the fully automatic backwash filter, it can prolong the service life of the water supply system, reduce the frequency of maintenance and replacement, and thus save a lot of manpower and material costs. These advantages make the smart fully automatic backwash filter one of the most competitive filtration equipment today.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
