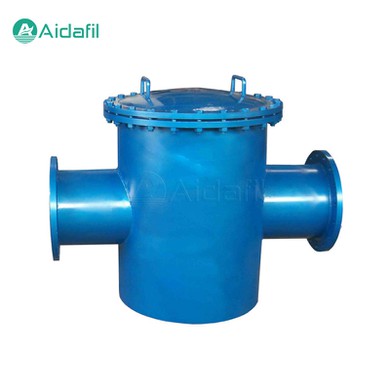

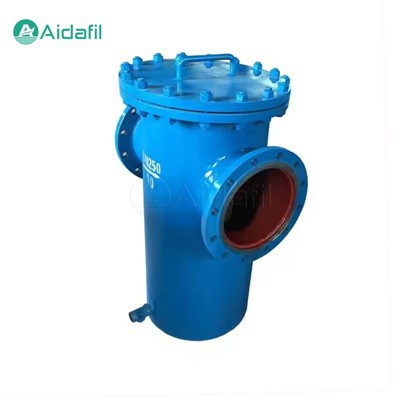

Cost-Effective Basket Type Filter

The cost-effective basket type filter serves as a commonly used solid-liquid separation equipment. It is widely used in chemical, food, medicine, environmental protection and other industries for its advantages of simple structure, convenient operation, high filtration efficiency and low maintenance cost.



This kind of filter equipment is mainly composed of the housing, the filter basket, the filter screen, the drive device, the inlet and outlet ports and other parts. The housing is usually made of high-quality stainless steel or other corrosion-resistant materials, which have good corrosion resistance and strength. The filter basket is installed in the shell, and a plurality of filter screens are installed inside it. The material and pore size of the filter screen can be selected according to the user request to adapt to the particle separation requirements of different particle sizes. The drive device can be manual or electric, which is used to drive the rotation of the filter basket to realize the cleaning and replacement of the filter screen. The inlet and outlet ports are used for the entry and exit of liquids.



Parameters

Material of housing	Cast iron, carbon steel	Stainless steel
Material of strainers	Stainless steel
Material of seal components	Oil-resistant asbestos, flexible graphite, PTFE
Working temperature	-30 ~ +380°C	-80 ~ +450°C
Filtration precision	10 ~ 300 meshes
Nominal pressure	0.6 ~ 6.4 Mpa (150Lb ~ 300Lb)
Connection	Flange, welding



Working principle

The working principle of the cost-effective basket type filter is to capture the solid particles in the liquid through the filter screen to achieve solid-liquid separation. The liquid containing solid particles enters the filter through the feed pipe. Under the action of gravity or pump, the liquid flows through the filter screen, the solid particles are captured by the filter screen, and the clean liquid flows out of the filter. As the filtration progresses, there will be more and more solid particles on the filter screen, and the filtration efficiency will gradually decrease. At this time, the filter screen needs to be replaced or cleaned in time to ensure the normal operation of the filter.



Advantages

1. Simple structure. The cost-effective basket type filter is relatively simple in structure, making it easy to install, operate, and maintain.

2. High filtration efficiency. The pore size of the filter screen can be selected according to demand, suitable for particle separation of different particle sizes, and the filtration efficiency is high.

3. Low maintenance cost. The filter screen is easy to replace and clean, resulting in lower maintenance costs.

4. Excellent material. The housing and filter screen are usually made of high-quality stainless steel or other corrosion-resistant materials, providing good corrosion resistance and strength.

5. Wide range of applications. The cost-effective basket type filter is widely used in chemical, food, pharmaceutical, environmental protection and other industries.



Application field

1. Chemical industry. Used to separate solid particles in the chemical production process to improve product purity and output.

2. Food industry. Used to separate solid particles during food processing to ensure food safety and hygiene.

3. Pharmaceutical industry. Used to separate solid particles in the pharmaceutical production process to ensure the quality and safety of medicines.

4. Environmental protection industry. Used to treat solid particles in industrial wastewater and domestic wastewater to achieve wastewater discharge standards.

5. Other industries. Solid-liquid separation processes in industries such as textiles, papermaking, metallurgy, ceramics, etc.



Precautions for purchase

1. Filtration accuracy. Choose the appropriate filter size according to actual needs to meet the requirements of solid-liquid separation.

2. Material selection. Choose the appropriate material according to the working environment, such as stainless steel, polytetrafluoroethylene, etc., to ensure the corrosion resistance and strength of the filter.

3. Dimensions. Select the appropriate filter size according to the actual application scenario to meet production requirements.

4. Brand reputation. Choose a brand with a good reputation and reputation to ensure the quality of the filter and after-sales services.

5. Price comparison. Consider the performance, brand, after-sales and other factors of the filter comprehensively, and choose a cost-effective product.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
