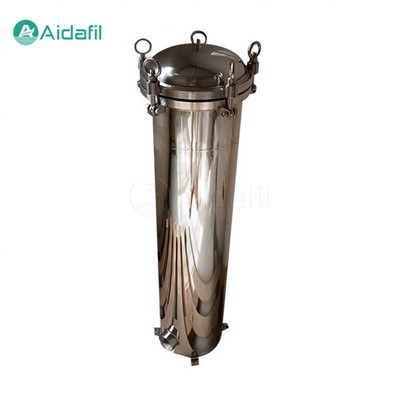

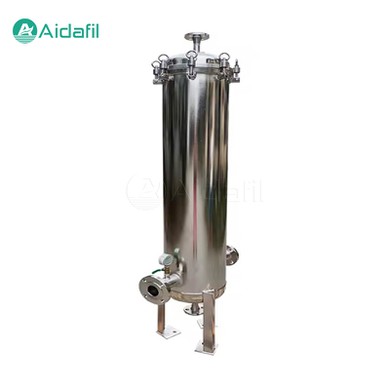

Efficient Water Filtration Stainless Steel Bag Filter

The efficient water filtration stainless steel bag filter is a water treatment equipment that uses a combination of stainless steel material and bag filtration technology. It uses a high-strength stainless steel mesh basket as a support structure, and a special filter bag is installed inside, which realizes the interception and removal of impurities in water through the liquid flowing in from the inlet and flowing out from the outlet after being filtered by the filter bag. This filter has the advantages of high filtration accuracy, long service life, easy cleaning and maintenance, and is widely used in various water treatment occasions.



Parameters

Flange standard	HG, GB, SH, HGJ, J8, ANSI, JIS
Connections	Thread, Flange, Clamp
Drain outlet specification	1/4
Filtering precision	0.5 - 800 μm
Design pressure	0.6 - 1.0 Mpa
Design temperature	90°C for PP filter bag, 130°C for PE filter bag, 240°C for PTFE filter bag
Surface treatment	Sand blasting, polishing
Housing material	20#, 304, 316L, 2205/2507, titanium
Sealing gasket material	Silica gel, NBR, PTFE
Filter bag material	Polyester, polypropylene, nylon, PTFE, glass fiber



Features

1. High-strength stainless steel net basket

The efficient water filtration stainless steel bag filter adopts high-strength stainless steel mesh basket as the support structure, which has high mechanical strength and compressive strength. This design enables the filter to withstand greater pressure and impact force, ensuring the stability and reliability of the filtration process.

2. High filtration accuracy

The stainless steel bag filter uses a special filter bag as the filter medium, which has high filtration accuracy. By selecting filter bags of different specifications and materials, impurities of different particle sizes and properties can be intercepted and removed to meet various water treatment needs.

3. Easy to clean and maintain

The stainless steel bag filter adopts the bag design, which makes the replacement and cleaning of the filter bag convenient and fast. When the filter bag reaches the service life or needs to be replaced, it is only necessary to take out the old filter bag and replace the new filter bag, without downtime or disassembly of the entire equipment. In addition, the filter also has excellent cleaning performance, and can be cleaned by various methods such as countercurrent water, filtrate, ultrasonic, melting, and melting to ensure the long-term stable operation of the filter.

4. High efficiency and energy saving

The efficient water filtration stainless steel bag filter has a large filtration area and low pressure drop, which can reduce energy consumption and operating costs. At the same time, its unique flow channel design and filtration mechanism make the filtration process more efficient and stable, improving the efficiency and quality of water treatment.

5. Wide range of applications

The stainless steel bag filter is suitable for a variety of water quality conditions and filtration needs. Whether it is clean water, sewage or corrosive media, you can choose the appropriate filter bag and stainless steel mesh basket for filtration. In addition, the filter can also be customized and modified according to different use environments and needs to meet the special needs of different customers.



Application

The efficient water filtration stainless steel bag filter is widely used in various water treatment applications, including but not limited to the following aspects:

1. Industrial water treatment

In the petrochemical, electric power, pharmaceutical and other industries, industrial water needs to be deeply treated to remove suspended matter, particulate matter and other impurities. Stainless steel bag filters can effectively meet these needs and improve the quality and stability of industrial water.

2. Drinking water treatment

In waterworks, residential water supply and other occasions, raw water needs to be filtered and disinfected to ensure the safety of drinking water. Stainless steel bag filters can effectively remove impurities and microbial contaminants from water and improve the quality and taste of drinking water.

3. Wastewater treatment

In the environmental protection and wastewater treatment industries, pretreatment and advanced treatment of wastewater are required to remove pollutants such as suspended solids and oil stains. Stainless steel bag filters can effectively remove these pollutants and reduce the turbidity and color of wastewater, providing favorable conditions for subsequent treatment.

4. Desalination

In the process of seawater desalination, seawater needs to be pretreated to remove impurities such as suspended solids and sediment. Stainless steel bag filters can effectively remove these impurities and reduce the turbidity of seawater, providing favorable conditions for the subsequent seawater desalination process.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
