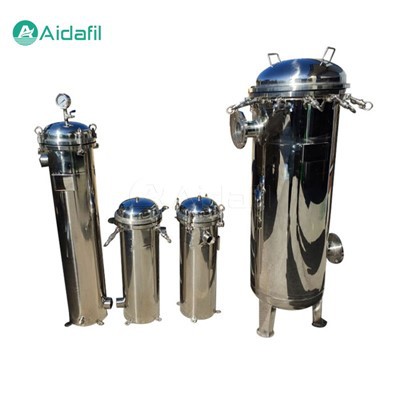

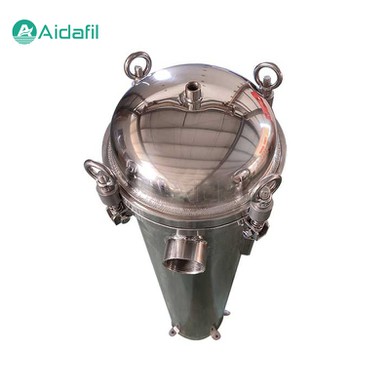

Good Reliable Bag Filter

The good reliable bag filter is a kind of precision filtration equipment widely used in industrial production and daily life. It has won the favor of the majority of users with its unique design concept, efficient filtration performance and convenient maintenance.



When it comes to material selection, the good reliable bag filter is usually made of corrosion-resistant stainless steel to ensure their stability and durability in different environments. At the same time, the materials of filter bags are also diverse, and the appropriate filter bag can be selected according to different filtration requirements and liquid characteristics to ensure the best filtration effect.



In addition, the bag filter also has the characteristics of simple structure, good sealing and strong flow capacity. The smooth treatment of the inner and outer surfaces makes it easy to clean and maintain, further prolonging the service life of the equipment. In terms of filtration accuracy, the bag filter can accurately ensure the filtration accuracy and effectively reduce the possibility of side leakage, which is especially important for environments with strict requirements on filtration quality.



Filtration Process

The filtration process begins with the introduction of liquid into the bag filter through the inlet. As the liquid flows through the filter bag, it is separated from impurities and particulate matter. The filter bag, made of high-quality material, effectively traps these impurities, allowing only the filtered liquid to pass through. The filtered liquid then exits the filter through the outlet, ready for further use or processing.



The efficiency of the filtration process depends on the type and size of the filter bag used. The bag filter offers a range of high-performance filter bags that can be tailored to meet specific filtration requirements. These bags are designed to capture even the smallest particles, ensuring a high level of filtration accuracy.



Product Features

1. Easy to install and maintain. The design of the bag filter is usually very user-friendly, and the replacement of filter bags is quick and easy, reducing the complexity of operation.

2. Efficient filtration. The filter bags made of high-quality filter materials can effectively capture tiny particles and achieve high-precision filtration.

3. Diversified filter bag selection. According to different filtration requirements, filter bags of different materials and precision can be selected, with a wide range of applications.

4. Cost savings. Replacing filter bags is less expensive and more hygienic than some other filtration systems that require regular dismantling and washing.

5. Wide application field. Can be used in drinking water treatment, industrial water treatment, food and beverage industry, pharmaceutical industry and other scenarios.



Parameters

Optional filter bags	PP / PE / NO
Flow for single unit	1 - 1000 m3/h
Precision	0.5 - 1250 micron
Filter bag number for single unit	1 - 24
Filter area	0.1 - 24 m2
Material of housing	304, 316L, CMF
Recommended viscosity	1 - 20000 cp
Working pressure	0.6 - 1.0 Mpa



Application

The good reliable bag filter is not only widely used in industrial fields, such as in chemical, metallurgy, electronics and other industries, but also gradually expanded to food and beverage, medicine, automotive, electronics and other industries with high product quality and environmental requirements. Especially in the field of water treatment, bag filters play an important role in ensuring water quality safety and health because they can effectively remove impurities and harmful substances in water.



Maintenance and upkeep

In order to maintain the best working condition of the bag filter, it is necessary to regularly maintain and maintain it. This includes checking whether the connecting pipes are firm, whether there is leakage and damage; ensuring that they are opened without pressure inside the filter to prevent loss or danger caused by the discharge of residual liquid; checking whether the inlet and outlet valves are closed tightly, and after confirming that the internal pressure is zero, the lid opening operation can be carried out. In addition, the status of the O-type sealing ring should be checked regularly. If there are deformation, scratches, ruptures or problems in the joint part, it should be replaced in time.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
