Good-Performance Leaf Filter

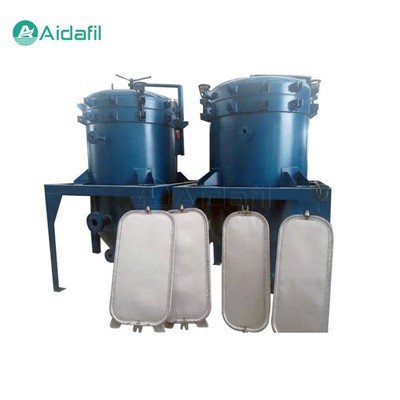

The good-performance leaf filter is a kind of precision clarification filter equipment with high efficiency, energy saving and fully automatic closed work, which adopts the vertical design of vibration slag removal. It is mainly used for precision filtration of fluid materials in petroleum, paint, pigment, food, beverage, pharmaceutical, grease, chemical and other industries, as well as decolorization filtration of various liquids. The leaf filter is composed of stainless steel airtight cylinder and double-sided filter plate. It has the characteristics of vibration slag removal and environmental protection cleaning.



Structural Characteristics

1. Stainless steel sealed cylinder. The cylinder of the leaf filter is made of stainless steel, which has the characteristics of corrosion resistance, high temperature resistance, high pressure resistance, etc., which can ensure the tightness of the filtration process and prevent external pollution.

2. Double-sided filter plate. The filter plate of the leaf filter adopts a double-sided design, which increases the filtration area and improves the filtration efficiency. The filter plate material can be selected according to the needs of different industries, such as stainless steel, polypropylene, etc.

3. Vibrating slag removal system. The leaf filter adopts a vibrating slag removal system, which makes the filter cake fall off through vibration to achieve a continuous and automatic filtration process. The vibration system can be driven by pneumatic or electric means.

4. Fully automatic control system. The leaf filter is equipped with a fully automatic control system, which can realize automatic control of filtration, washing, dehydration, unloading, etc., reducing labor intensity and improving production efficiency.



Working Processes

The working principle of the good-performance leaf filter mainly includes four processes: filtration, washing, dehydration and unloading.

1. Filtration. The material to be filtered enters the filter from the feed port, passes through the filter medium of the filter plate, and the solid particles are trapped on the filter plate to form a filter cake, and the clear liquid flows out from the liquid outlet.

2. Washing. After the filtration is completed, the filter cake is washed to remove impurities in the filter cake. The washing liquid enters from the washing port and passes through the filter plate to dissolve or wash away the impurities in the filter cake.

3. Dehydration. After washing is completed, the filter cake is dehydrated to reduce the moisture content of the filter cake. The moisture in the filter cake is pumped out by compressed air or vacuum pump to achieve the purpose of dehydration.

4. Discharge. After the dehydration is completed, start the vibrating slag removal system to make the filter cake fall off the filter plate and discharge from the discharge port.



Parameter Data

Model	Filtering area (m2)	Cylinder diameter (mm)	Inlet	Outlet	Overflow port	Slag outlet (mm)	Height (mm)	Weight (kg)
ADYP-4	4	550	DN50	DN80	DN40	300	2010	600
ADYP-8	8	700	DN50	DN80	DN40	400	2425	800
ADYP-10	10	800	DN50	DN80	DN40	400	2630	900
ADYP-15	15	900	DN50	DN80	DN40	400	2650	1100
ADYP-20	20	1100	DN50	DN80	DN40	400	3000	1500
ADYP-30	30	1200	DN50	DN80	DN40	500	3050	1750
ADYP-40	40	1300	DN65	DN80	DN50	500	3280	2100
ADYP-50	50	1400	DN65	DN80	DN50	600	3450	3000
ADYP-60	60	1500	DN65	DN80	DN50	600	3630	3100
ADYP-80	80	1600	DN65	DN80	DN50	700	3860	3600



Advantages

1. High efficiency. Double-sided filter plate design increases the filtration area and improves the filtration efficiency.

2. Energy saving and environmental protection. Closed operation, reducing environmental pollution; vibration slag removal system, reducing energy consumption.

3. Fully automatic. Fully automatic control system to achieve automatic control of filtration, washing, dehydration, unloading and other processes, reducing labor intensity and improving production efficiency.

4. Precision clarification. Using high-precision filter media to achieve accurate interception of tiny particles and ensure filtration quality.

5. Widely used. Suitable for a variety of industries to meet the filtration requirements of different materials.



Suitable Materials

- Petrochemical: polyether, diesel, lubricating oil, white oil, transformer oil

- Mineral oils and base oils: dibutyl ester, dioctyl ester

-Oils and fats: crude oil, bleached soil, hydrogenated oil, winterized oil, stearyl, fatty acids, etc

- Food: gelatin, salad oil, starch, sugar juice, monosodium glutamate, milk, vinegar, etc. - Pharmaceutical: hydrogen peroxide, vitamin C, glycerin, etc

- Coatings: varnish, tree fat paint, dyes, 685 varnish, etc. - Organic chemicals: various organic acids, alcohols, esters, benzene, aldehyde, etc

- Inorganic chemicals: bromine water, potassium cyanide, fluorite, etc



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
