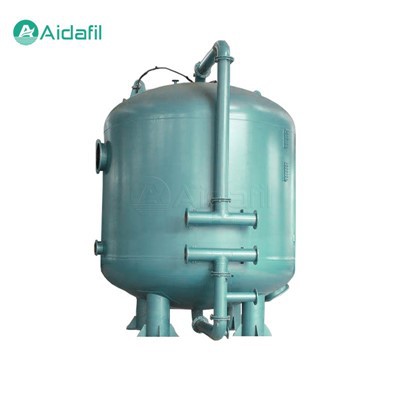

Highly Efficient Manganese Sand Filter For Iron And Manganese Removal

The Highly Efficient Manganese Sand Filter For Iron And Manganese Removal is a filter device used to remove iron and manganese impurities in water. It uses the principle of combining oxidation and filtration to effectively remove dissolved iron and manganese ions in water and improve water quality.



The filter material in the manganese sand filter is usually manganese sand. Manganese sand is a natural mineral with catalytic oxidation. It catalyzes the oxidation of iron and manganese ions in water and adsorbs oxide particles.



Working principle

The working principle of the Highly Efficient Manganese Sand Filter For Iron And Manganese Removal is divided into the following stages:

1. Oxidation. When water flows through the filter, it comes into contact with oxidants, such as sodium hypochlorite or potassium permanganate. Oxidants oxidize dissolved iron and manganese ions into insoluble oxides.

2. Adsorption. The oxidized iron and manganese oxide particles are adsorbed with the sand layer in the filter to form an attachment.

3. Filtration. When water passes through the sand layer, the iron-manganese oxide adhesives are trapped, thereby removing iron-manganese impurities from the water.

4. Backwashing. Backwashing the filter regularly to rinse off the iron and manganese oxides adsorbed on the sand layer to restore the filtration capacity.



Design and construction

The Highly Efficient Manganese Sand Filter For Iron And Manganese Removal is usually composed of the following components:

1. Filter tank. A cylindrical container containing filter media, usually made of stainless steel.

2. Sand layer. A filter layer composed of manganese sand.

3. Water distribution system. Evenly distribute water flow to prevent the loss of filter material.

4. Water Collection System. Collect filtered water.

5. Backwash system. Backwash filter material regularly to remove adsorbed iron and manganese oxides.



Technical parameters

Handling Capacity	Outline Dimension	Connecting Diameter	Cylinder Thickness
2m³	φ600×2150mm	DN50	6mm
5m³	φ800×2750mm	DN50	8mm
10m³	φ1000×2850mm	DN50	8mm
15m³	φ1200×2850mm	DN65	8mm
20m³	φ1400×3250mm	DN65	10mm
30m³	φ1600×3450mm	DN80	10mm
40m³	φ1800×3750mm	DN80	12mm
50m³	φ2000×3750mm	DN100	12mm
70m³	φ2200×3850mm	DN125	12mm
100m³	φ2400×4150mm	DN150	14mm
120m³	φ2600×4450mm	DN150	14mm
150m³	φ2800×4650mm	DN150	14mm
170m³	φ3000×4850mm	DN200	14mm
200m³	φ3200×5100mm	DN200	14mm



Application

The Highly Efficient Manganese Sand Filter For Iron And Manganese Removal is widely used in the following fields:

1. Drinking water treatment. Remove iron and manganese impurities from water, improve drinking water quality, and meet national drinking water hygiene standards.

2. Industrial water treatment. Remove iron and manganese impurities from water, prevent corrosion and blockage of pipelines and equipment, and ensure the quality of industrial production water.

3. Agricultural water treatment. Removes iron and manganese impurities from water, promotes crop growth, and increases crop yield.

4. Surface water purification. Remove iron and manganese impurities from surface water, improve water quality, and reduce pollution.



Advantage

1. High removal efficiency. It can effectively remove dissolved iron and manganese ions from water, meeting the national drinking water hygiene standards.

2. Low operating costs. Long service life of filter media, less backwash water consumption, and lower maintenance costs.

3. Simple operation. High degree of automation, simple and convenient operation, no need for professional technicians.

4. Environmental protection. The removal process does not produce harmful substances and does not pollute the environment.



Choose

When selecting a manganese sand filter, consider the following factors:

1. Water quality. Iron and manganese content, pH value, turbidity, etc.

2. Processing flow. The amount of water to be treated.

3. Removal efficiency. Desired iron and manganese removal rate.

4. Filter tank size. Determined according to the processing flow and the thickness of the filter material layer.

5. Backwashing frequency. Determined according to the iron and manganese content in the water and the blockage of the filter material.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
