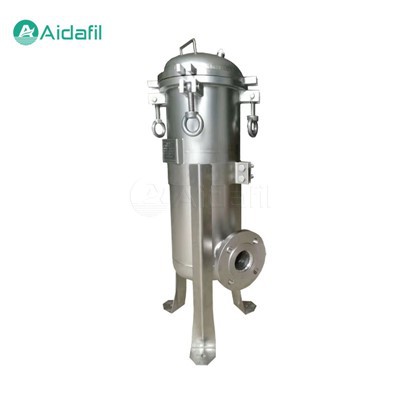

High-Strength Security Filter System

The high-strength security filter system is a meticulously engineered device composed of two primary components: a stainless steel housing and a high-performance filter cartridge. The outer shell, fabricated from corrosion-resistant and durable stainless steel, provides structural integrity and protection against environmental factors, including temperature fluctuations and chemical exposure. Its compact design allows for seamless integration into existing systems and facilitates ease of maintenance.



At the heart of the filter lies the filter cartridge, which is the workhorse responsible for capturing impurities. Constructed using advanced materials capable of withstanding elevated temperatures without compromising their filtration properties, these cartridges can be tailored to meet specific micron ratings, ensuring the retention of particles ranging from coarse to ultrafine.



Specifications

Filter flow : 3-246m³/h

Filter element quantity : 3-123

Material : Cylindrical shell, 304 or 316L stainless steel; Equipped with multiple filter elements

Use : Used to filter out fine substances after multi-media filtration (such as tiny quartz sand, activated carbon particles, etc.)



Operating Principle

The working principle of the high-strength security filter system relies on the pressure-driven flow of liquid or gas through the filter medium. As the process fluid enters the filter housing, it is forced through the intricately designed filter cartridge. Under the influence of pressure, contaminants are trapped on the surface or within the pores of the filter media, while the purified fluid passes through and exits the filter at its central outlet. This efficient separation process is maintained by the precise pore size distribution and depth filtration characteristics of the chosen filter cartridge.



The high temperature resistance nature the security filter boasts is achieved through the careful selection of materials that exhibit minimal thermal expansion, excellent dimensional stability, and resistance to thermal degradation. These properties ensure consistent filtration performance even under extreme temperature conditions, preventing premature failure due to thermal stress and maintaining the structural integrity of the filter components.



Functionality and Role in Industrial Processes

The high-strength security filter system is typically deployed as a pre-treatment measure in high-temperature fluid streams, particularly those feeding into sensitive downstream equipment like reverse osmosis (RO) membranes, ultrafiltration (UF) systems, or precision machinery. Its primary function is twofold:

1. Fine Particle Removal: Acting as a barrier against fine particulate matter that may have escaped preliminary filtration stages, the security filter captures contaminants. By doing so, it ensures that the final feed to the membrane-based or precision devices remains free of particles that could cause physical damage, clogging, or reduced performance.

2. Membrane Protection: In membrane filtration applications, the security filter serves as a crucial safeguard, preventing larger particles from reaching and potentially damaging the delicate and expensive membrane elements. Membranes, especially those used in RO and UF systems, can be highly susceptible to fouling and irreversible damage when exposed to even small amounts of particulate contamination. The security filter effectively extends the lifespan of these membranes and reduces the frequency of costly maintenance interventions.



Customization and Applications

Given the diverse range of industries and operating conditions that require high-strength high-temperature-resistance filtration solutions, manufacturers offer a wide array of customization options. Factors such as flow rate, temperature tolerance, chemical compatibility, and filtration efficiency can be tailored to suit specific applications, including:

1. Power Generation - In power plants, the security filter is employed to protect turbine lubrication systems, steam generators, and cooling water circuits from particulate contamination, which can cause accelerated wear, corrosion, and reduced efficiency.

2. Chemical Processing - In the production of specialty chemicals, the security filter is essential for safeguarding reactors, heat exchangers, and sensitive instrumentation against contamination by catalyst fines, polymer particles, or other process byproducts.

3. Pharmaceuticals and Biotechnology - In sterile manufacturing environments, the security filter plays a vital role in purifying process fluids and gases, ensuring product purity and preventing contamination of sensitive bioreactors, chromatography columns, and final filling equipment.

4. Food and Beverage - For thermal processing steps in food and beverage manufacturing, such as pasteurization or UHT treatment, the security filter protects processing equipment and maintain product quality by removing impurities that could affect taste, color, or shelf life.

5. Semiconductor Manufacturing - In the fabrication of microelectronics, the security filter is integral to maintaining the cleanliness of ultrapure water and specialty gases used in etching, cleaning, and deposition processes, preventing defects and ensuring the reliability of semiconductor devices.



Choosing the Right Filter Rating

The filter rating of a Security Filter is determined by the size of the particles it can capture. Different applications require different filter ratings to ensure the removal of particles of specific sizes. For instance, in pharmaceutical manufacturing, a higher filter rating might be necessary to remove even the smallest particles, whereas in water treatment, a slightly lower filter rating might suffice.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
