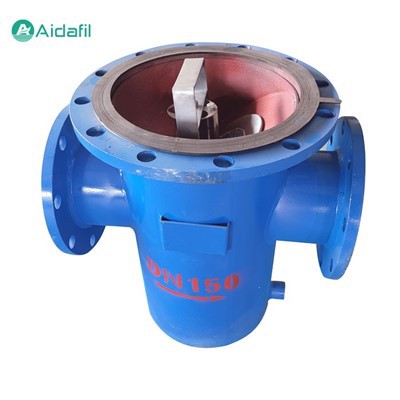

Magnetic Basket Filter

AIDA can offer a Magnetic Insert to most types of strainers and filters manufactured. Magnetic Inserts help remove iron content in the fluid and filter elements particles up-to 1 microns. We offer magnets up-to 10,500 Gauss. We can help select the right magnet for your application along with filtration efficiency.
Magnetic Inserts Flow basket or screen can be mesh lined to trap very small particles in the fluid being strained. However, there are fluids that may contain microscopic metallic filings. The finest mesh will not catch these particles. This can be a problem in applications with parts that have metal to metal contact.

An effective solution to the problem of excessive and premature wear of pump seals, wear rings, bearings, gears, etc. is a magnetic screen assembly. A standard strainer basket or screen is fitted with magnets which are removable for cleaning. They are arranged to create a magnetic field around the interior of the screen or basket. The magnets attract the fine ferrous particles which would pass through the mesh and could damage the downstream equipment.
Magnets can be incorporated into most types of strainers, including y type, basket, and temporary cone strainers.
Magnetic filters are used for removing iron particles in liquid / slurry form. They are essentially used in chemical, food, pharma and oil industries. The filter magnets are made up of high intensity rare earth magnets. Magnets are fully cladded by very thin pipes of SS316L / SS304. The magnetic elements used in the filter have gauss value of 10,000, gauss.

Standard ASA 150# flanges of 25 NB, 50 NB, 80 NB are used. However on customer request, flanges or end connection of required size can be used.
