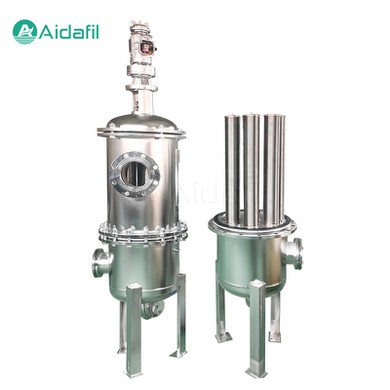

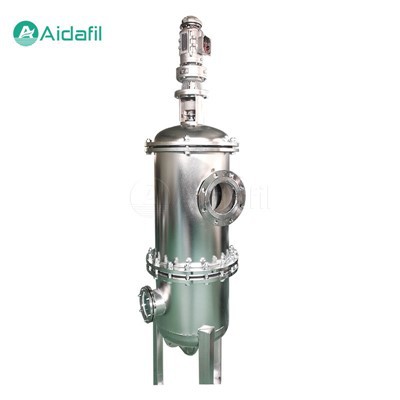

Automatic Backwash Filter With Good Filtering Effect

The automatic backwash filter with good filtering effect marks an essential component in various industrial and commercial applications, providing reliable and efficient filtration of particulate contaminants. It aims to remove particulate contaminants from high-flow, high-velocity, low-viscosity fluids. This self-cleaning filtration device is widely used in various industrial and commercial applications, including water treatment, chemical processing, food and beverage manufacturing, and more.



The automatic backwash filter operates on the principle of depth filtration. As the fluid enters the filter through the inlet, it passes through a filter element, which traps the particulate contaminants. The filtered fluid then exits the filter through the outlet.



Automatic Backwash Mechanism

The automatic backwash mechanism is triggered when the pressure drop across the filter element reaches a predetermined setpoint. This pressure drop indicates that the filter element has accumulated a significant amount of contaminants and needs to be cleaned.



The backwash process initiates by opening a valve that directs a portion of the filtered fluid back through the filter element in the opposite direction. This reverse flow dislodges the accumulated contaminants from the filter element and flushes them out through a dedicated drain port.



Control System

The automatic backwash filter is equipped with a control system that monitors the pressure drop across the filter element and initiates the backwash process as needed. This control system can be programmed to operate on a timed interval or differential pressure basis.



Technical Parameters

Filtration precision	20 - 400 microns
System working pressure	0.2 - 1.0 Mpa
Water pressure required for backwashing	≥0.18 Mpa
Medium temperature	<60 degrees centigrade
Power supply voltage	AC 220V 1A
Control output voltage	DC 24V 1A per channel
Control mode	Differential pressure, timing, manual
Pipe material	Carbon steel, stainless steel, HDPE, etc.



Data Parameters

Model	Inlet & outlet caliber	Filtration area (m2)	D1	X (mm)	Y (mm)	H (mm)	Weight (kg)	water treatment volume (m3/h)
AF202	DN50	1100	DN250	177	174	480	34	30
AF202S	DN50	1630	DN250	177	174	625	36	30
AF203	DN80	1100	DN250	192	188	495	34	40
AF203S	DN80	1630	DN250	192	188	640	36	50
AF204	DN100	1630	DN250	220	210	650	50	80
AF204S	DN100	3000	DN250	220	315	890	72	100
AF206	DN150	4500	DN250	220	400	1095	86	130
AF208	DN200	5780	DN400	305	450	1190	161	200



Advantages of Automatic Backwash Filters

Our automatic backwash filter with good filtering effect offers several advantages over manual filters:

1. Continuous operation. It can operate continuously without the need for manual intervention, ensuring uninterrupted filtration.

2. Reduced downtime. The automatic backwash process minimizes downtime for filter cleaning, improving productivity.

3. Improved efficiency. The automatic backwash mechanism ensures that the filter element is always clean, maintaining optimal filtration efficiency.

4. Lower maintenance costs. By eliminating the need for manual cleaning, automatic backwash filters reduce maintenance costs.



Applications

Our automatic backwash filter with good filtering effect is suitable for a wide range of applications, including:

1. Water treatment. Removing sediment, turbidity, and other contaminants from water sources.

2. Chemical processing. Filtering chemicals, solvents, and other process fluids.

3. Food and beverage manufacturing. Removing contaminants from food and beverage products.

5. Oil and gas industry. Filtering drilling fluids, production fluids, and other petroleum-based fluids.

5. Pharmaceutical industry. Filtering pharmaceuticals, biopharmaceuticals, and other sensitive fluids.



Selection Criteria

When selecting an automatic backwash filter, the following factors should be considered:

1. Flow rate. The flow rate of the fluid to be filtered.

2. Particle size. The size of the particles to be removed.

3. Viscosity. The viscosity of the fluid.

4. Pressure drop. The allowable pressure drop across the filter element.

5. Backwash frequency. The desired frequency of the backwash process.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
