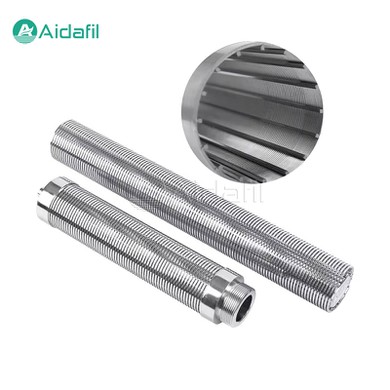

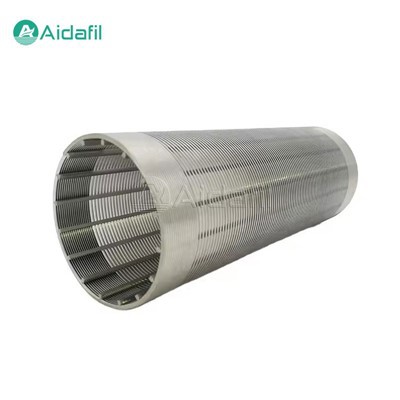

Sturdy Stainless Steel High Quality Wedge Wire Screen Pipe

The design of the the sturdy stainless steel high quality wedge wire screen pipe is based on a unique wedge wire structure, and through precise manufacturing processes, it achieves the comprehensive advantages of excellent filtration efficiency, low maintenance cost and long life.



The core of the sturdy stainless steel high quality wedge wire screen pipe is its unique wedge wire structure. These wires are usually made of high-quality stainless steel, such as 304 or 316L stainless steel, and sometimes other special alloys are selected according to specific corrosion resistance or high temperature resistance requirements. Each wedge wire is carefully designed, and its cross-section gradually changes from one end to the other, forming a continuous, gradually narrowing or widening gap. These wires are wound or welded on the central support frame at precise spacing to form a filter structure that is both strong and highly efficient.



Materials and Manufacturing

The material selection of the sturdy stainless steel high quality wedge wire screen pipe is crucial and directly affects its applicable environment and service life. Stainless steel is the most commonly used material, suitable for most working conditions due to its excellent corrosion resistance and mechanical strength. For more severe environments, such as strong acid and alkali or high temperature conditions, high-performance materials such as Hastelloy and titanium alloy may need to be selected.

The manufacturing process involves precise wire winding and welding technology to ensure that the welding points between each wire are both firm and uniform, thus forming a screen pipe with a stable overall structure and high filtration accuracy. In addition, according to application requirements, the diameter, length, gap size, etc. of the screen pipe can be customized to meet the specific filtration requirements of different industries.



Performance Characteristics

1. High strength and durability

Due to the use of high-quality stainless steel or other corrosion-resistant alloy materials and fixed by precise welding technology, the wedge wire screen pipe has extremely high structural strength and durability, can withstand high pressure and harsh working environment, and is suitable for long-term uninterrupted operation.

2. High porosity and large filtration area

The wedge wire design allows the wedge wire screen pipe to have a higher open porosity, up to 60%, which means a larger filtration area, which helps to improve filtration efficiency and processing capacity, while reducing the resistance of fluid passage and reducing energy consumption.

3. Accurate filtration accuracy

The gap size between the wedge wires is precisely controllable and can be customized according to actual needs, from 0.015 mm or more, suitable for different filtration accuracy requirements, and effectively removes particles of different sizes.



Parameters

Material	Stainless steel 304, 316L, 904L, Hastelloy
Gap	Minimum 0.015mm
Diameter	Customized
Filtering direction	Customized (from inside to outside, or from outside to inside)



Application Areas

1. Water treatment

In drinking water treatment, sewage treatment, seawater desalination and other links, the sturdy stainless steel high quality wedge wire screen pipes are used to remove suspended matter, organic matter, bacteria, etc. in water to ensure water quality safety.

2. Oil and gas

In oil extraction, the sturdy stainless steel high quality wedge wire screen pipes are used for solid-liquid separation of geothermal wells and oil wells to prevent solid particles such as sand and gravel from entering the pump and pipeline system and protect equipment from damage.

3. Chemical industry

In the chemical production process, the sturdy stainless steel high quality wedge wire screen pipes are used to filter reaction media to ensure product quality and equipment operation safety, especially in the filtration of products such as resins, dyes, and coatings.

4. Food and Beverages

In the production of food and beverages such as juice, beer, and dairy products, the sturdy stainless steel high quality wedge wire screen pipes are used to remove impurities and ensure product purity and taste.

5. Pharmaceuticals and Biotechnology

In the pharmaceutical and biotechnology fields, the sturdy stainless steel high quality wedge wire screen pipes are used for raw liquid filtration, fermentation broth clarification, and other application scenarios with extremely high requirements for filtration accuracy.
