Customized Stainless Steel Powder Sintered Filter Disc

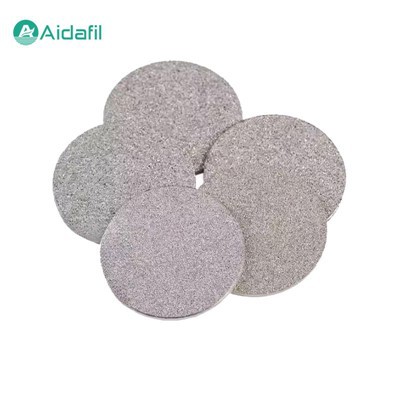

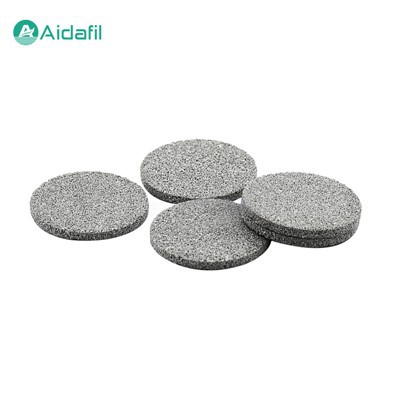

The customized stainless steel powder sintered filter disc is a kind of filter material with special structure and performance. It is mainly made of stainless steel powder through a specific sintering process, presenting a round sheet structure. This filter disc plays an important role in many fields and provides a reliable solution for various filtering needs. It can effectively filter impurities and particles in gas and liquid. The stainless steel material makes it have good corrosion resistance and can be used for a long time in a variety of environments.



Characteristics of customized stainless steel powder sintered filter disc

1. High strength

After sintering, it has high mechanical strength and can withstand certain pressure and impact.

2. Good corrosion resistance

Stainless steel material gives it excellent corrosion resistance and can work stably in corrosive media.

3. Precise filtering performance

The pore size can be controlled as needed to achieve filtering of different precisions.

4. High temperature resistance

It can work normally at higher temperatures and adapt to a variety of high temperature environments.

5. Reusability

It can be reused after cleaning to reduce the cost of use.



Filtering principle of customized stainless steel powder sintered filter disc

When the fluid passes through the filter disc, the impurity particles in it are intercepted because the particle size is larger than the pore size of the disc, thereby achieving the purpose of filtering and purification. Its filtering effect depends not only on the pore size, but also on the thickness, porosity and other factors of the disc.



Advantages of customized stainless steel powder sintered filter disc

1. Stable and reliable performance, not easy to deform and damage after long-term use.

2. Strong adaptability to various complex fluid environments.

3. Can effectively remove tiny particle impurities and ensure filtration quality.



Parameters of customized stainless steel powder sintered filter disc

Value of particles blocked in liquid		Permeability (no less than)
Filtration efficiency (98%)	Filtration efficiency (99.9%)	Permeability (10-12m2)	Relative permeability	MPa
1	3	0.05	5	3
3	5	0.18	18	3
5	9	0.45	45	3
10	15	0.9	90	3
15	24	2	200	3
25	35	4	400	3
30	40	5.83	580	2.5
50	80	7.5	750	2.5
80	120	12	1200	2.5



Manufacturing process of customized stainless steel powder sintered filter disc

1. Powder selection

Carefully select high-quality stainless steel powder to ensure that its composition is uniform and the particle size is appropriate.

2. Mixing and pressing

After mixing the powder with appropriate additives, press it in a mold to form a preliminary disc shape.

3. Sintering process

Sintering is carried out under high temperature environment to connect and fuse the powder particles to each other to form a solid overall structure.

4. Subsequent processing

It may include surface treatment, trimming and other processes to optimize its performance and appearance.



Application fields of customized stainless steel powder sintered filter disc

1. Petrochemical industry

Used for oil filtration, chemical raw material filtration, etc.

2. Pharmaceutical industry

Filter liquid medicine, extract, etc. To ensure the quality of medicines.

3. Food and beverage industry

Filter beverages, alcohol, etc. To ensure food safety.

4. Environmental protection field

Play a role in sewage treatment, waste gas treatment, etc.

5. Electronic industry

Used in fine filtration scenarios such as high-purity gas filtration.



Maintenance and care of customized stainless steel powder sintered filter disc

1. Regular cleaning

According to the use situation, choose a suitable cleaning method to remove attached impurities.

2. Check integrity

Regularly check whether the disc is damaged, deformed, etc., and replace it in time.

3. Avoid excessive extrusion

During installation and use, prevent damage caused by excessive extrusion.

4. Correct storage: When not in use, it should be properly stored to avoid moisture, contamination, etc.
