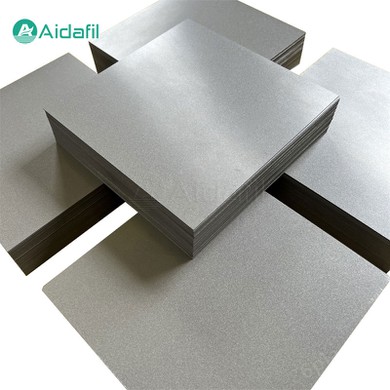

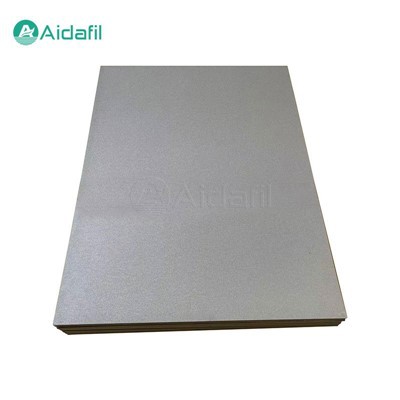

Good Chemical Stability Titanium Powder Sintered Plate

The good chemical stability titanium powder sintered plate is a filter plate made of titanium powder through sintering process. titanium, as an important metal material, has many excellent properties. Its density is relatively low, but its strength is high, and it has excellent corrosion resistance, which can resist the erosion of a variety of corrosive media, including acids, alkalis, salt solutions, etc. This allows the good chemical stability titanium powder sintered plates to maintain stable performance in various harsh environments.



Material characteristics

1. The excellent properties of titanium

Titanium has excellent corrosion resistance and can resist the erosion of most corrosive media, whether it is strong acid, alkali or various salt solutions. The perfect combination of its low density and high strength gives the filter plate the ability to operate stably in a variety of complex environments.

2. Excellent temperature resistance

Titanium is capable of maintaining good performance over a wide temperature range, working reliably from low temperature to high temperature environments, and adapting to temperature changes in different industrial processes.



Manufacturing process and structure

1. Powder sintering process

Through a precisely controlled sintering process, titanium powders are tightly bonded together to form a filter plate with a specific pore structure. This process requires strict temperature, pressure and time control to ensure the quality and performance of the filter plate.

2. Unique pore structure

The pore structure is highly controllable, allowing the pore size, distribution, and porosity to be adjusted according to actual needs, thus achieving filtration effects of different accuracy levels.



Parameters

Value of particles blocked in liquid		Permeability (no less than)
Filtration efficiency (98%)	Filtration efficiency (99.9%)	Permeability (10-12m2)	Relative permeability	MPa
1	3	0.05	5	3
3	5	0.08	8	3
5	10	0.3	30	3
10	14	0.8	80	3
15	20	1.5	150	3
20	32	2	200	3
35	52	4	400	2.5
60	85	6	600	2.5
80	124	10	1000	2.5



Performance advantages

1. High filtration accuracy

The good chemical stability titanium powder sintered plate can effectively trap tiny particles and impurities, providing a pure filtrate that meets the requirements of various industries for high-quality products.

2. Excellent chemical stability

It can still work stably in corrosive environments, ensuring long service life and reliable filtration performance.

3. High strength and wear resistance

It has sufficient strength to withstand working pressure and fluid impact, and at the same time has good wear resistance, reducing the frequency of maintenance and replacement.



Wide range of application fields

1. Chemical industry

In the chemical production process, the good chemical stability titanium powder sintered plate is used to filter various chemical raw materials, reaction products, etc., to ensure product quality and production continuity.

2. Oil and gas sector

It is used in key links such as oil and gas separation and purification to ensure the purity and safe exploitation of oil and gas.

3. Pharmaceutical industry

Fine filtration of the drug solution is carried out to remove impurities and microorganisms to ensure the safety and effectiveness of the drug.

4. Food and beverage industry

It is used for the filtration of liquids such as juice and alcohol to improve the taste and quality of products.

5. Environmental protection

It plays an important role in wastewater treatment, waste gas purification, and other aspects, contributing to environmental protection and sustainable development.



Selection and use precautions

1. Clear filtering requirements

According to the specific filtration requirements, such as particle size, flow rate, etc., choose the appropriate filter plate specifications and performance parameters.

2. Consider the work environment

Take into account the temperature, pressure, corrosiveness and other factors of the working environment to ensure that the filter plate can adapt to the actual working conditions.

3. Proper installation and maintenance

During the installation process, it is necessary to operate strictly according to the specifications, and perform regular cleaning and maintenance to prolong the service life of the filter plate.



Future development trends

1. Technological innovation

With the continuous advancement of science and technology, the manufacturing process of titanium powder sintered plates will become more advanced and intelligent, further enhancing product quality and performance.

2. Expand the application field

We will find more application opportunities in emerging fields such as new energy and biotechnology, and provide support for the development of these fields.

3. Environmental protection and sustainable development

With the continuous improvement of environmental protection requirements, its application in the field of environmental protection will continue to deepen, making greater contributions to reducing environmental pollution.
