Smooth Surface Wedge Wire Filter Tube

The smooth surface wedge wire filter tube is an efficient and versatile filtering equipment widely used in various industrial fields. Its design and manufacturing take into account multiple aspects such as filtration efficiency, durability and cost-effectiveness. It is mainly made of high-precision wedge wire spirally wound on the axial support ribs. The support ribs and the surface wire are firmly welded into one by resistance welding. It boasts smooth surface without edges and corners.



Structure and principle

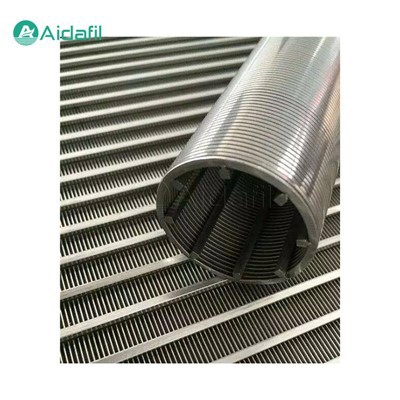

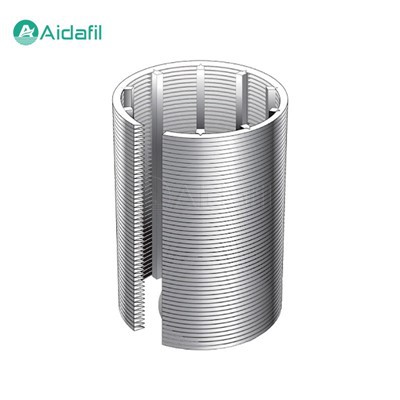

The structure design of smooth surface wedge wire filter tube is unique. It is made of high-precision wedge wire spirally wound on axial support ribs. This structure makes the filter tube have high strength and good pressure bearing capacity. The support ribs and surface wire are firmly welded into one by resistance welding, ensuring the stability and reliability of the product. The shape of the wedge wire helps to form uniform gaps, which are a key part of the filtration process. They determine the filtration accuracy and efficiency of the filter tube.



Material and manufacturing

The smooth surface wedge wire filter tube is usually made of stainless steel materials, such as 304, 316L, 904L stainless steel, or even more corrosion-resistant materials such as Hastelloy. The choice of these materials depends on the environment and medium where the filter tube will be used. For example, in the chemical industry, more corrosion-resistant materials may be required to resist the erosion of chemicals. During the manufacturing process, the quality and processing accuracy of the materials will be strictly controlled to ensure the performance and service life of the filter tube.



Application fields

The smooth surface wedge wire filter tubes are widely used in many industries due to their efficient filtering performance and stable physical properties, including but not limited to:

1. Water treatment. Used to remove suspended matter, silt and other impurities in water.

2. Petrochemical. Used to filter raw materials and products in oil refining and chemical production processes.

3. Pharmaceutical. Used to filter liquid medicine and solvents in pharmaceutical production.

4. Beverages and food. Used to clarify liquids and remove suspended particles.

5. Biotechnology. Used for filtering cell culture and fermentation broth in laboratory and industrial-scale production.

6. Solid-liquid separation. Used to separate solid and liquid mixtures in various industrial processes.



Parameters

Material	Stainless steel 304, 316L, 904L, Hastelloy
Gap	Minimum 0.015mm
Diameter	Customized
Filtering direction	Customized (from inside to outside, or from outside to inside)



Features and benefits

1. Precision Filtration

The gap of the wedge wire filter tube can be very small, as small as 0.02mm, which enables it to achieve high-precision filtration. This is very important for applications that need to remove tiny particles or impurities.

2. Self-cleaning function

Due to its unique V-shaped wire winding design, the wedge wire filter tube has a self-cleaning function. This means that impurities are easily washed away during backwashing, reducing the clogging and maintenance frequency of the filter tube.

3. Strength and durability

The self-supporting welded skeleton structure of the wedge wire filter tube provides high strength and good pressure bearing capacity. This allows the filter tube to work in a high-pressure environment without deformation or damage.

4. Corrosion resistance

The wedge wire filter tube made of corrosion-resistant materials such as stainless steel has good corrosion resistance and can be used for a long time in harsh environments, extending the service life of the product.

5. Customization

The gap range and diameter of the wedge wire filter tube can be customized according to the specific requirements of the customer to meet different filtration needs. This flexibility allows the wedge wire filter tube to adapt to a variety of different application scenarios.
