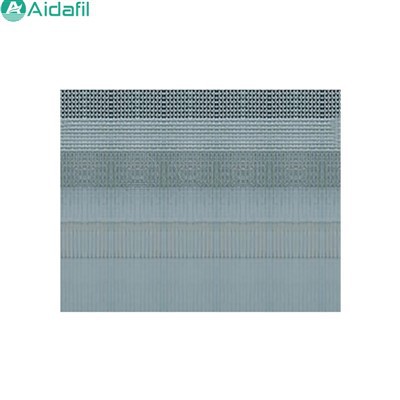

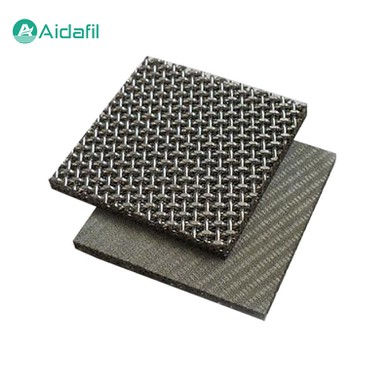

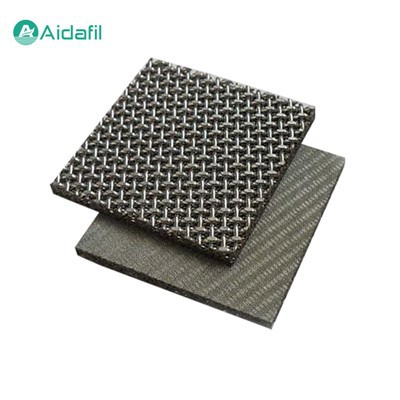

Good Rigidity Six-Layer Metal Sintered Wire Mesh

The good rigidity six-layer metal sintered wire mesh is a filter material made of six-layer metal woven wire mesh through a special process. It combines the high precision of metal mesh and the stability of sintering technology to form a new type of material with high strength, high rigidity and good filtration performance.



In practical applications, the good rigidity six-layer metal sintered wire mesh can be used in a variety of occasions, such as filtration, separation and purification processes in chemical, petroleum, pharmaceutical, food and other industries. Due to its excellent performance, the six-layer metal sintered wire mesh has received extensive attention and application in the market.



Characteristics

The main characteristics of the good rigidity six-layer metal sintered wire mesh include:

1. High strength and pressure resistance

Due to the use of multi-layer metal mesh stacking and sintering process, the six-layer metal sintered wire mesh has extremely high mechanical strength and compressive strength, capable of maintaining structural integrity under high pressure environments.

2. Easy to clean

The surface filter material design of the six-layer metal sintered wire mesh makes it easy to clean, making it particularly suitable for cleaning methods such as backwashing, thus prolonging the service life.

3. Ease of processing

The material is suitable for cutting, bending, stamping, stretching, welding and other processing processes, making it easy to customize the shape and size according to actual needs.

4. High temperature resistance

The six-layer metal sintered wire mesh can withstand temperatures up to 480 ° C, which makes it possible to apply it in high-temperature environments.

5. Precise aperture control

By precisely controlling the weaving density and sintering parameters of each layer of wire mesh, precise control of filtration accuracy can be achieved.



Manufacturing process

The manufacturing process of the good rigidity six-layer metal sintered wire mesh mainly includes the following steps:

1. Material selection

Choose the right metal wire, usually stainless steel or other corrosion-resistant metals, to ensure the durability and adaptability of the product.

2. Weaving

Wire is woven into a mesh structure, and the structure and aperture of each layer of mesh can be adjusted according to the requirements of the final application.

3. Laminated pressing

Stacking multiple layers of woven wire mesh in a certain order and binding them tightly together through a pressing process.

4. Vacuum sintering

Sintering is performed in a vacuum environment to eliminate air and impurities between layers, while making the bonding between the wire mesh stronger.

5. Post-processing

After sintering, the product may undergo post-processing processes such as cutting and grinding to meet specific size and shape requirements.



Parameters

Model number	Nominal precision (μm)	Absolute precision (μm)	Gases permeability (L/min · dm2 · kPa)	Bubbling pressure (pa)
ADBSW1	1	6-7	180	5300-6000
ADBSW2	2	8-9	240	4300-5000
ADBSW5	5	11-13	260	3000-3700
ADBSW10	10	16-18	310	2700-3300
ADBSW15	15	24-26	350	2000-2600
ADBSW20	20	28-32	450	1800-2300
ADBSW25	25	34-36	620	1400-1900
ADBSW30	30	40-45	690	1200-1700
ADBSW40	40	50-55	720	1000-1500
ADBSW50	50	71-80	850	900-1200
ADBSW70	70	89-95	900	700-1100
ADBSW100	100	110-120	1080	650-1000
ADBSW150	150	180-200	2600	550-800
ADBSW200	200	260-280	2800	450-600



Application field

The application field of the good rigidity six-layer metal sintered wire mesh is very wide, mainly including:

1. Chemical industry: used for catalyst support, fluid distribution in chemical reactors, filtration and separation of gases and liquids, etc.

2. Oil and gas industry: used for sand control, oil-water separation, gas purification, etc. in oil and gas fields.

3. Pharmaceutical industry: used for fine filtration in the pharmaceutical process to ensure the purity of medicines.

4. Food and beverage industry: used for liquid filtration during food processing, such as purification of edible oils, clarification of fruit juices, etc.

5. Environmental protection field: used for environmental protection projects such as wastewater treatment and air purification.

6. New energy field: used for battery separators, fuel cell gas diffusion layers, etc.
