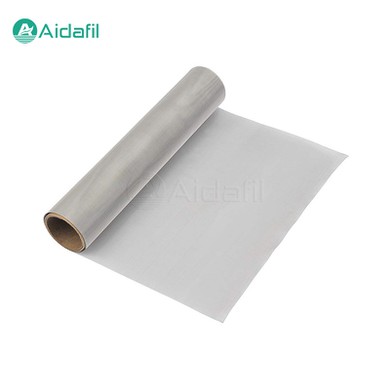

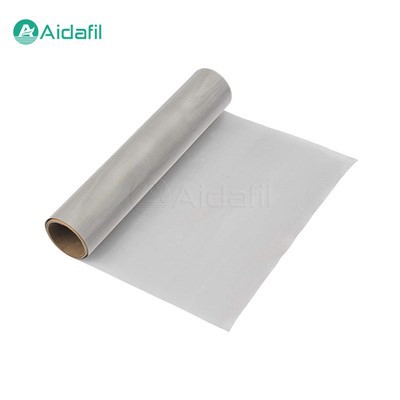

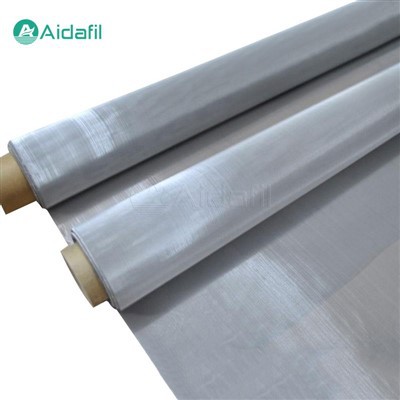

High Strength Monel Sintered Mesh

The high strength monel sintered mesh marks a sintered mesh made of Monel alloy, which is a copper and nickel-based alloy with good acid and alkali resistance, corrosion resistance and high temperature resistance. It can effectively trap tiny solid particles, suspended solids and other impurities, achieve fine filtration, and ensure the purity of the filtered fluid. Its stable structure makes it possible to maintain reliable filtration performance during long-term use, bringing consistent filtration effect.



The high strength monel sintered mesh has a standard common size of 500mm × 1000mm, 600 × 1200mm, 1000mm × 1200mm. Its standard thickness is 1.7mm.



Characteristics

The high strength monel sintered mesh usually has the following characteristics:

- Corrosion resistance. It is chemically stable in various highly corrosive media, such as hydrofluoric acid, sulfuric acid, hydrochloric acid, organic acid and alkali solution.

- High temperature resistance. It is able to maintain its performance in high temperature environments.

- High strength. It is has high mechanical strength and rigidity.

- High-precision filtration. The filtration accuracy can reach 1μm-200μm, which can effectively filter particulate impurities.

- Good permeability. The porosity design is high, reducing the flow resistance and ensuring good permeability.

- Easy to process. Easy to process, shape, have certain weldability, can achieve single-piece and special-shaped parts production.



Function

The high strength monel sintered mesh has the following main functions:

1. Filtration function. It can filter out solid particles, impurities, etc. in liquids or gases with high precision, effectively purifying the medium and ensuring the purity and quality of the fluid.

2. Separation function. Substances of different particle sizes or phases can be separated to achieve fine sorting of mixtures.

3. Blocking function. It can prevent larger particles, fibers, etc. from entering the subsequent system to protect the normal operation of equipment and processes.

4. Stabilizing fluid function. It can remove impurities through filtration to make fluid flow more stable and uniform, reducing fluctuations and unstable factors.

5. Even passing function. It can ensure that the fluid passes through the mesh evenly, avoiding local blockage or uneven flow.



Model parameters

Model number	Nominal precision (μm)	Absolute precision (μm)	Gases permeability (L/min · dm2 · kPa)	Bubbling pressure (pa)
ADBSW1	1	6-7	180	5300-6000
ADBSW2	2	8-9	240	4300-5000
ADBSW5	5	11-13	260	3000-3700
ADBSW10	10	16-18	310	2700-3300
ADBSW15	15	24-26	350	2000-2600
ADBSW20	20	28-32	450	1800-2300
ADBSW25	25	34-36	620	1400-1900
ADBSW30	30	40-45	690	1200-1700
ADBSW40	40	50-55	720	1000-1500
ADBSW50	50	71-80	850	900-1200
ADBSW70	70	89-95	900	700-1100
ADBSW100	100	110-120	1080	650-1000
ADBSW150	150	180-200	2600	550-800
ADBSW200	200	260-280	2800	450-600



Application

The high strength monel sintered mesh is mainly used in the following fields:

- Chemical industry. Used in filtration, separation and purification processes in chemical production.

- Petrochemical industry. Such as oil mist removal, nuclear energy refining and separation, etc.

- Power industry. E.g. Steam filtration in power plants.

- Seawater treatment. Can be used for seawater slag removal, etc.

- Food and beverage. Filtration and separation in food and beverage production.

- Pharmaceutical industry. Used for filtration and separation in pharmaceutical processes.



Notes

When using the high strength monel sintered mesh, the following matters need to be taken into account:

- Cleaning and maintenance. Clean regularly to prevent impurities from clogging the mesh. When cleaning, follow the correct method to avoid damage to the sintered mesh.

Avoid mechanical damage. During installation and use, avoid causing mechanical damage to the sintered mesh to avoid affecting its performance.

- Pay attention to the use environment. Select the appropriate Monel sintering mesh according to the specific use environment to ensure that it can work normally under the corresponding conditions.
