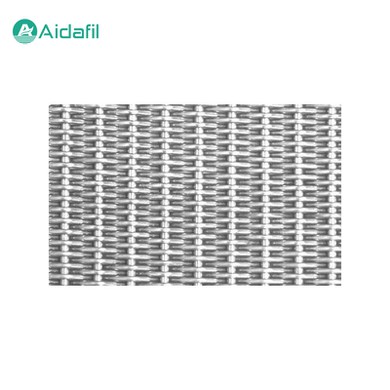

Mat-Type Sintered Mesh

The mat-type sintered mesh is a new type of filter material made by stacking two or more layers of metal wire mesh together through sintering, pressing, rolling and other processes. It has the advantages of high strength, strong rigidity, uniform and stable mesh, wear resistance, pressure resistance, heat resistance, corrosion resistance, etc. It can filter out water molecules and harmful impurities and play a role in the protection system. The layers of wire mesh are staggered to form a uniform and ideal filter structure, with high porosity and uniform airflow distribution.



The material of the mat type sintered mesh is usually stainless steel, such as SUS304, SUS316, SUS316L, etc. Common specifications are 500 × 1000mm, 600 × 1200mm, 1000 × 1200mm, etc., and the filtration accuracy range is 1-200μm. It can be processed into sintered mesh filters, sintered mesh filter cartridges, sintered mesh filter elements, sintered mesh plates and other products, which are widely used in electronics, chemical industry, steel, medical and other fields.



Model parameters

Model number	Nominal precision (μm)	Absolute precision (μm)	Gases permeability (L/min · dm2 · kPa)	Bubbling pressure (pa)
ADBSW1	1	6-7	180	5300-6000
ADBSW2	2	8-9	240	4300-5000
ADBSW5	5	11-13	260	3000-3700
ADBSW10	10	16-18	310	2700-3300
ADBSW15	15	24-26	350	2000-2600
ADBSW20	20	28-32	450	1800-2300
ADBSW25	25	34-36	620	1400-1900
ADBSW30	30	40-45	690	1200-1700
ADBSW40	40	50-55	720	1000-1500
ADBSW50	50	71-80	850	900-1200
ADBSW70	70	89-95	900	700-1100
ADBSW100	100	110-120	1080	650-1000
ADBSW150	150	180-200	2600	550-800
ADBSW200	200	260-280	2800	450-600



Application

The following are some specific cases of using mat-type sintered mesh:

1. Chemical Industry

In the chemical production process, mat-type sintered mesh can be used to filter impurities in chemical reaction liquid and improve product quality.

2. Petroleum industry

Used to remove impurities and protect equipment during oil extraction, refining and transportation.

3. Pharmaceutical industry

Filter tiny particles and bacteria in liquid medicine to ensure the purity and safety of medicine.

4. Food and beverage industry

Filter impurities and microorganisms in food and beverages to improve product quality and hygiene standards.

5. Electronic industry

Used for high-purity water filtration in the production process of electronic products to prevent impurities from damaging electronic components.

6. Automotive industry

Applied to the air intake system, fuel system and lubrication system of automobile engines to filter impurities in the air and particulate matter in the oil to protect the engine.

7. Environmental protection industry

In environmental protection equipment such as wastewater treatment and waste gas purification, mat-type sintered mesh can effectively remove pollutants.

8. Metallurgical industry

Filter impurities in metallurgical melts to improve the purity of metals.

9. Power industry

Used in water treatment systems in power plants to filter impurities and suspended matter in water.

10. Aerospace industry

In aerospace equipment, mat-type sintered mesh can be used to filter media such as fuel, hydraulic oil and air.



Performance in filtering water molecules

The mat-type sintered mesh has the following performance characteristics in filtering water molecules:

1. High precision filtration

It can effectively trap tiny water molecules and other impurities, ensuring that the filtered water is relatively pure.

2. Good stability

During the long-term filtration of water molecules, the structure can be maintained stable, and the filtration performance is not easily affected.

3. Good permeability

It allows water molecules to pass through more smoothly while blocking other unwanted substances.

4. Strong water resistance

It can be exposed to water for a long time without significant damage or performance degradation.

5. Anti-pollution ability

Even if the water contains certain contaminants or impurities, it can maintain effective filtration of water molecules to a certain extent.



Ways extending the service life

The following are some methods that can extend the service life of the mat-type sintered mesh:

1. Correct installation and operation

Ensure that the installation is firm and the position is accurate, and use it according to the specified operating procedures and pressure range.

2. Regular cleaning and maintenance

Regular cleaning is carried out according to the use situation to remove attached impurities, and appropriate cleaning methods and reagents are used to avoid damage to the filter.

3. Control the nature of the filter material

Try to avoid filtering materials that are highly corrosive, highly viscous, or contain a large number of hard particles.

4. Avoid overload

Do not keep the filter in a working state of overpressure or overflow for a long time.

5. Prevent shock and vibration

Reduce the impact of abnormal external forces on the filter.

6. Do a good job of pretreatment

Appropriate pretreatment of the materials entering the filter to reduce the impurity content and damage to the filter.

7. Environmental management

Keep the use environment clean and dry to avoid the erosion of the filter screen by adverse environmental factors.

8. Regular inspection

Regularly check the status of the filter screen to detect and deal with problems in a timely manner.
