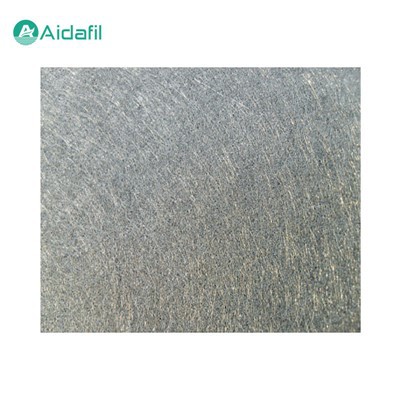

Stainless Steel Sintered Fiber Felt Without Protective Net

The stainless steel sintered fiber felt without protective net is mainly made of stainless steel fiber sintered at high temperature, and has excellent physical and chemical properties. This filter material has a three-dimensional mesh, porous structure with high porosity, large surface area and uniform pore size distribution. This structure makes the stainless steel sintered felt without mesh have excellent filtration performance.



Compared with that with protective net, the stainless steel sintered fiber felt without protective net lacks an additional net layer in structure. It has the characteristics of large dirt holding capacity, high filtration accuracy, slow pressure rise, and long replacement cycle. At the same time, it also has high porosity and excellent penetration rate, small pressure loss and large flow rate. In addition, the material can also be pleated to increase the filtration area, and can be welded. It can be cleaned and regenerated and can be used multiple times.



Parameters

Model	Filter precision (μm)	Bubbling point pressure (pa)	Air permeability (L/min, dm2, kpa)	Porosity (%)	Containment capacity (mg/cm2)	Thickness (mm)	Fracture strength (Mpa)
		Basic value	Basic value	Basic value	Basic value	Basic value	Basic value
ADZB-5	5	6800	47	75	5	0.3	32
ADZB-7	7	5200	63	76	6.5	0.3	36
ADZB-10	10	3700	105	75	7.8	0.37	32
ADZB-15	15	2450	205	79	8.6	0.4	23
ADZB-20	20	1900	280	80	15.5	0.48	23
ADZB-25	25	1550	355	80	19	0.62	20
ADZB-30	30	1200	520	80	26	0.63	23
ADZB-40	40	950	670	78	29	0.68	26
ADZB-60	60	630	1300	85	36	0.62	28
Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%



Application

The following are a few main application scenarios of the stainless steel sintered fiber felt without protective net:

1. High temperature filtration and separation

The stainless steel sintered fiber felt has excellent stability in high temperature environments, so it is widely used in the filtration and separation of high-temperature gases. For example, in metallurgy, chemical industry, electric power and other industries, when high-temperature gases or soot need to be treated, the stainless steel sintered fiber felt can effectively remove impurities, ensure the purity of the gas and the normal operation of the system.

2. Liquid filtration

In the water treatment, pharmaceutical, food and beverage industries, the stainless steel sintered fiber felt is used for liquid filtration. It can filter out fine particles, suspended solids, bacteria, etc. in water, improving the cleanliness and safety of liquids. In addition, due to its corrosion resistance, it can also be used for the filtration of corrosive liquids such as chemicals and acid-base solutions.

3. Precision filtration

The high-precision filtration performance of the stainless steel sintered fiber felt makes it suitable for precision filtration. For example, in the semiconductor, electronics, pharmaceutical and other industries, high-precision filtration is required to ensure the quality and purity of products, and the stainless steel sintered fiber felt can provide an effective solution.

4. Other applications

In addition, the stainless steel sintered fiber felt can also be used for filtration and separation in special fields such as aerospace and nuclear industries. In these fields, the requirements for filter materials are more stringent, and the stainless steel sintered fiber felt can meet these requirements due to their excellent performance and stability.



Characteristics

The performance characteristics of the stainless steel sintered fiber felt without protective net mainly include the following aspects:

1. Large pollution capacity and high filtration accuracy

It has a large dirt holding capacity, which means it can effectively capture and contain more impurities and particles.

At the same time, its filtration accuracy is also very high, capable of filtering out tiny particles and contaminants, ensuring that the filtered medium has a high degree of purity.

2. Slow pressure rise and long replacement cycle:

During use, its pressure rises more slowly, which means it can maintain stable filtration performance for a long time.

Therefore, its replacement cycle is relatively long, reducing the cost of use and maintenance frequency.

3. Corrosion resistance and high temperature resistance

It has good corrosion resistance and can resist the corrosion of acids, alkalis, organic solvents and chemicals such as pharmaceuticals.

At the same time, it also has high temperature resistance and can be used for a long time in high temperature environments, making it suitable for a variety of harsh working environments.

4. High porosity and excellent penetration rate

It has a high void ratio and excellent penetration rate, which makes it possible to maintain a small pressure loss and a large flow rate during the filtration process.

A high porosity also means a large surface area, allowing for more efficient capture and filtration of impurities.

5. Easy to process and clean for regeneration:

It is easy to process and shape, and can be customized according to user requirements.

At the same time, it can also be cleaned and regenerated, allowing it to be used multiple times, reducing the cost of use.
