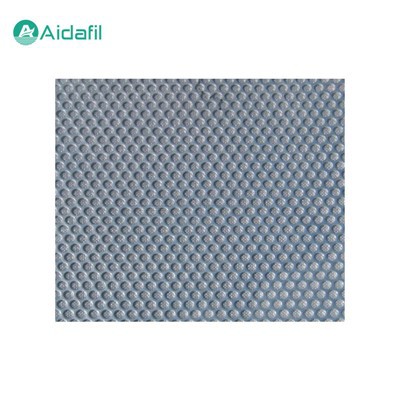

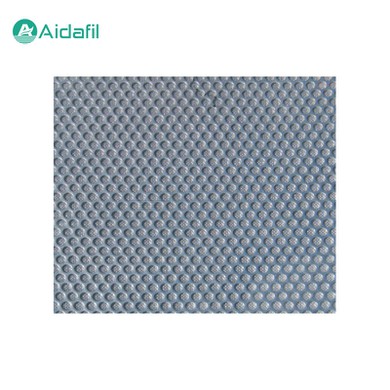

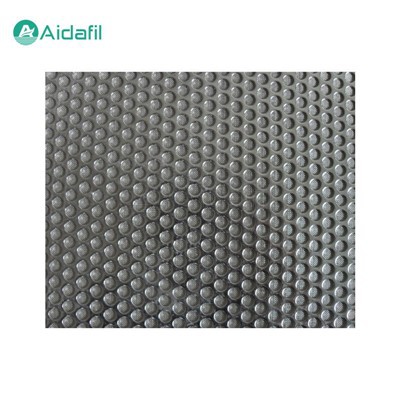

Perforated Plate Composite Sintered Mesh

The perforated plate composite sintered mesh is a composite material comprising a perforated plate made of standard 304 stainless steel and several layers of square mesh or fine mesh sintered into a unified structure. This composite design is tailored to specific use conditions and applications, with the number of layers and mesh sizes varying accordingly. The integration of the pressure-resistant skeleton and filter mesh results in a material that is not only mechanically robust but also highly efficient in filtration.



The perforated plate composite sintered mesh as a multi-faceted and highly efficient filtering material has emerged as a crucial component in various industries due to its exceptional properties and diverse applications.



Characteristics

1. Large Filtration Range

The perforated plate composite sintered mesh offers a filtration precision range spanning from 1μ to 100μ, ensuring reliable filtering performance across various applications.

2. Stable Filtration Accuracy

The dual-layer mesh protection, combined with the diffusion-solidification sintering process, ensures that the filter layer mesh holes remain undeformed, maintaining consistent filtration accuracy over extended periods.

3. Excellent Mechanical Strength

Supported by additional layers, the perforated plate composite sintered mesh boasts high pressure resistance and mechanical strength, enabling it to withstand harsh operating conditions.

4. Ease of Cleaning

The surface filtration material facilitates effortless cleaning, particularly suitable for backwashing operations, ensuring extended service life and reduced maintenance costs.

5. High Temperature Resistance

Withstanding temperatures up to 480°C, the composite sintered mesh is suitable for extreme operating environments.

6. Corrosion Resistance

The utilization of stainless steel material ensures excellent corrosion resistance, making it suitable for corrosive environments.

7. Versatile Processing

The perforated plate composite sintered mesh is suitable for various processing techniques, including cutting, bending, punching, stretching, and welding, allowing for customization to specific application requirements.



Advantages

The perforated plate composite sintered mesh offers numerous advantages that contribute to its widespread adoption in various industries:

1. Its smooth mesh channels enhance the anti-cleaning regeneration function, enabling repeated cleaning and reuse.

2. High mechanical strength and pressure resistance allow for use in high-temperature environments and as dispersion cooling materials.

3. Excellent filtration performance, stability, and resistance to high temperatures and corrosion make it suitable for pharmaceutical applications, including material filtration, washing, and drying.

4. Easy cleaning and resistance to deformation reduce the need for extensive manpower and lower operational costs.



Applications

The perforated plate composite sintered mesh finds extensive use in various industries:

1. Water Treatment

Used as a filtering material in various water treatment equipment, it effectively removes suspended solids, particles, and impurities, improving water quality.

2. Beverage and Food Industry

In the production of beverages, beer, and juice, it filters liquids to remove impurities and particles, ensuring product purity and taste.

3. Chemical and Pharmaceutical Industries

It filters liquids and gases in chemical processes, removes harmful substances, and ensures product quality. In pharmaceutical applications, it filters pharmaceutical liquids, ensuring product purity and safety.

4. Metallurgy and Mining

Used in the filtration and separation of useful components from ores, improving production efficiency.

5. Construction and Decoration

As a soundproofing material in construction, it reduces noise pollution. In decoration, it is used to create screens, partitions, and other elements with an aesthetic appearance and good ventilation.

6. Environmental Protection and Air Purification

It filters exhaust gases, smoke, and other pollutants, contributing to environmental protection. In air purification equipment, it filters air to remove dust, bacteria, and other harmful substances, improving air quality.



Parameters

Model number	Nominal precision (μm)	Absolute precision (μm)	Gases permeability (L/min · dm2 · kPa)	Bubbling pressure (pa)
ADBSW1	1	6-7	180	5300-6000
ADBSW2	2	8-9	240	4300-5000
ADBSW5	5	11-13	260	3000-3700
ADBSW10	10	16-18	310	2700-3300
ADBSW15	15	24-26	350	2000-2600
ADBSW20	20	28-32	450	1800-2300
ADBSW25	25	34-36	620	1400-1900
ADBSW30	30	40-45	690	1200-1700
ADBSW40	40	50-55	720	1000-1500
ADBSW50	50	71-80	850	900-1200
ADBSW70	70	89-95	900	700-1100
ADBSW100	100	110-120	1080	650-1000
ADBSW150	150	180-200	2600	550-800
ADBSW200	200	260-280	2800	450-600
