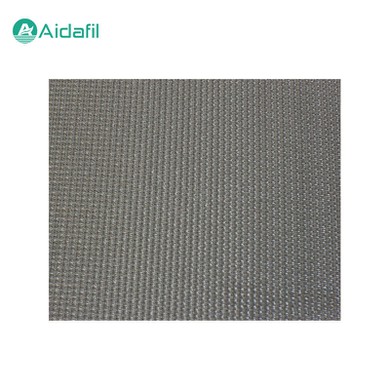

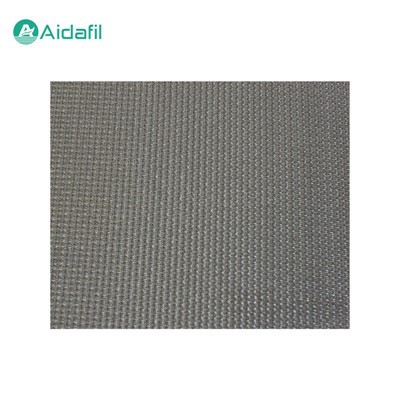

High Strength Five-Layer Sintered Mesh

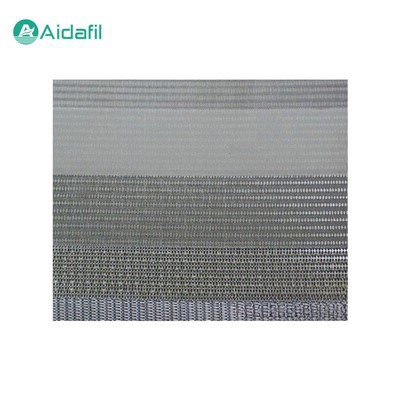

The high strength five-layer sintered mesh represents a common filter material made of five layers of stainless steel wire mesh superimposed and sintered. This structure usually includes protective layer, filter layer, dispersion layer, and skeleton layer. Each layer has a specific function to achieve an efficient filtering effect.

1. Protective layer: located on the outermost layer, the main function is to protect the inner layer from wear and corrosion.

2. Filter layer: also called the control layer, responsible for the main filtering work, removing particulate matter in the liquid or gas.

3. Dispersion layer: helps to disperse the pressure so that the fluid passes through the filter medium evenly, thereby improving the filtration efficiency.

4. Skeleton layer: also called the support layer, reinforcement layer, provides the necessary support, increases the strength and rigidity of the sintered mesh, and plays a role in stabilizing the entire structure.



Features

Product features of the high strength five-layer sintered mesh include:

1. High strength and rigidity

Due to its multi-layer structure and sintering process, the five-layer sintered mesh has high mechanical strength and compressive strength, capable of withstanding high pressure and high load conditions.

2. Stable filtration accuracy

The five-layer structure makes the filtration accuracy more uniform and stable, and is suitable for occasions with strict requirements on filtration particle size.

3. Good corrosion resistance

Usually made of stainless steel, the five-layer sintered mesh has good corrosion resistance and can be used in acid-base environments for a long time.

4. Higher porosity

The porosity of the five-layer sintered mesh is high, which makes it good in flow performance and suitable for handling large flow rates of liquids or gases.

5. Easy to clean and regenerate

Due to its unique structure, the five-layer sintered mesh can be easily backcleaned, prolonging its service life.

6. Heat resistance

The high temperature resistance of stainless steel allows the five-layer sintered mesh to operate normally at higher temperatures and has strong adaptability.

7. Versatility

The five-layer sintered mesh is suitable for filtration requirements in a variety of industrial fields, such as chemical, pharmaceutical, and petroleum processing.

8. Long service life

The durability of the five-layer sintered mesh gives it a long service life, reducing replacement frequency and maintenance costs.



These characteristics make the high strength five-layer sintered mesh an ideal filter material, especially for applications that require high compressive strength and filter particle size.



Model parameters

Model number	Nominal precision (μm)	Absolute precision (μm)	Gases permeability (L/min · dm2 · kPa)	Bubbling pressure (pa)
ADBSW1	1	6-7	180	5300-6000
ADBSW2	2	8-9	240	4300-5000
ADBSW5	5	11-13	260	3000-3700
ADBSW10	10	16-18	310	2700-3300
ADBSW15	15	24-26	350	2000-2600
ADBSW20	20	28-32	450	1800-2300
ADBSW25	25	34-36	620	1400-1900
ADBSW30	30	40-45	690	1200-1700
ADBSW40	40	50-55	720	1000-1500
ADBSW50	50	71-80	850	900-1200
ADBSW70	70	89-95	900	700-1100
ADBSW100	100	110-120	1080	650-1000
ADBSW150	150	180-200	2600	550-800
ADBSW200	200	260-280	2800	450-600



Application

The high strength five-layer sintered mesh has a wide range of application fields, covering many important fields such as petrochemical, metallurgical machinery, energy and environmental protection, textile power, aerospace and pharmaceutical industries.

1. Petrochemical industry

In the petrochemical industry, the five-layer sintered mesh is used for precision filtration of liquids and gases, especially when high temperatures or corrosive media are involved. The mesh can withstand temperatures up to 480°C and is suitable for filtering various chemical solutions and petroleum products, ensuring the safety and efficiency of the filtration process.

2. Metallurgical Machinery Industry

The metallurgical industry requires the use of the five-layer sintered mesh to filter coolant or other fluids to protect machinery from damage from contaminated particles. The high strength and pressure resistance of sintered mesh make them ideal for handling high pressure systems.

3. Energy and environmental protection industry

In the field of energy and environmental protection, the five-layer sintered mesh is widely used in water treatment and wastewater treatment facilities for efficient removal of suspended solids and other pollutants. Its excellent corrosion resistance and heat resistance ensure reliability and long-term performance in extreme environments.

4. Textile and power industry

The five-layer sintered mesh is used in the textile industry to remove impurities from dyes and other chemicals to ensure product quality. The power industry uses sintered mesh for systematic cooling and filtration to ensure the normal operation of power generation equipment.

5. Aerospace industry

The aerospace industry requires extremely high performance of materials. The five-layer sintered mesh is often used in the hydraulic systems of aircraft and spacecraft due to its high temperature and high pressure resistance, ensuring the cleanliness of the system and the accuracy of its function.

6. Pharmaceutical industry

In the pharmaceutical process, the five-layer sintered mesh is used to ensure the purity of raw materials and final products, remove impure substances through effective filtration, and meet strict pharmaceutical industry standards.
