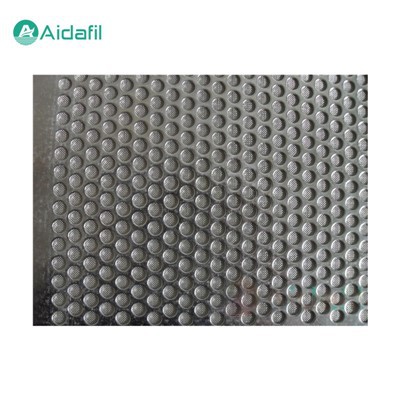

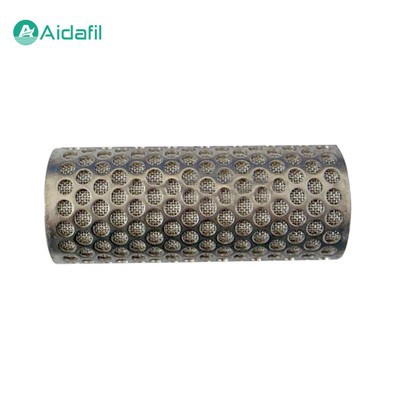

Top Quality Punching Plate Sintered Mesh

The top quality punching plate sintered mesh is a special filter material made of metal punching plates and metal woven mesh through high temperature sintering. It is formed by sintering the punching plate and the basic flat-woven mesh together. It can choose different thicknesses of punching plates and flat-woven mesh according to needs, and the flat-woven mesh can be one or more layers. Due to the combination of punching plates and flat-woven mesh, the sintered webs of punched plates have high mechanical strength and compression resistance.



Characteristics and advantages

The characteristics and advantages of the top quality punching plate sintered mesh mainly include the following points:

1. High strength and rigidity

Due to the combination of punching plate and metal woven mesh, the punching plate sintered mesh has high mechanical strength and overall rigidity, and can withstand greater pressure and impact force.

2. Precise filtration

The mesh size of the punching plate sintered mesh is uniform, which can provide accurate filtration effect and ensure the accuracy and efficiency of filtration.

3. Corrosion resistance

Due to the use of corrosion-resistant materials such as stainless steel, titanium, and nickel, the punching plate sintered mesh has good corrosion resistance and is suitable for various corrosive environments.

4. High temperature resistance

The punching plate sintered mesh can work normally at higher temperatures, up to 800 degrees Celsius, suitable for high temperature operating environments.

5. Easy to clean and maintain

The surface of the punching plate sintered mesh is smooth and not easy to hang, which can be easily backwashed to prolong its service life.

6. Wear resistance

The surface of the punching plate sintered mesh has been specially treated to have good wear resistance, suitable for high flow and high wear conditions.

7. Diversity

According to different application requirements, punching plates and flat webs of different materials, specifications and precision can be selected to meet diverse needs.



These characteristics and advantages make the punching plate sintered mesh widely used in chemical, pharmaceutical, water treatment, food industry and other fields.



Application

Due to its unique structure and characteristics, the punching plate sintered mesh is widely used in many fields, including:

1. Chemical industry

In the chemical production process, it is often used to filter corrosive chemicals, such as acids, alkalis, salts, etc., and to recover catalysts.

2. Pharmaceutical industry

In the production of pharmaceuticals, it is used for fine filtration of pharmaceuticals to ensure their purity and safety.

3. Water treatment

In the fields of urban water supply and sewage treatment, it is used to filter suspended solids, sediments and other impurities in water.

4. Food industry

In the food processing process, it is used to filter food raw materials to ensure the safety and taste of the food.

5. Oil and gas industry

In oil fields, it is used for cementing, sand control and other operations in oil wells, as well as filtration and recovery of catalysts in petrochemical processes.

6. Machining

In metal cutting, grinding and other processing processes, it is used to filter coolant and abrasive.

7. Electronics industry

In the production of semiconductors and integrated circuits, it is used to filter high-purity chemical liquids and gases.

9. Other fields

Including aerospace, medical apparatus, nuclear power plants and other high-end fields, it is often necessary to use perforated plate sintered mesh for precision filtration.



Model parameters

Model number	Nominal precision (μm)	Absolute precision (μm)	Gases permeability (L/min · dm2 · kPa)	Bubbling pressure (pa)
ADBSW1	1	6-7	180	5300-6000
ADBSW2	2	8-9	240	4300-5000
ADBSW5	5	11-13	260	3000-3700
ADBSW10	10	16-18	310	2700-3300
ADBSW15	15	24-26	350	2000-2600
ADBSW20	20	28-32	450	1800-2300
ADBSW25	25	34-36	620	1400-1900
ADBSW30	30	40-45	690	1200-1700
ADBSW40	40	50-55	720	1000-1500
ADBSW50	50	71-80	850	900-1200
ADBSW70	70	89-95	900	700-1100
ADBSW100	100	110-120	1080	650-1000
ADBSW150	150	180-200	2600	550-800
ADBSW200	200	260-280	2800	450-600
