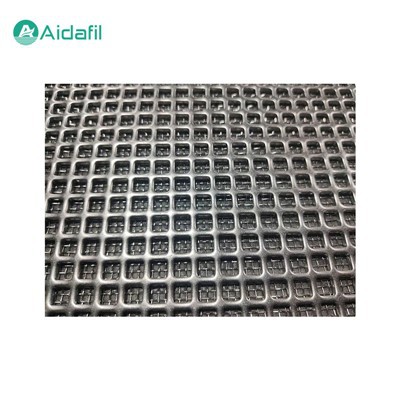

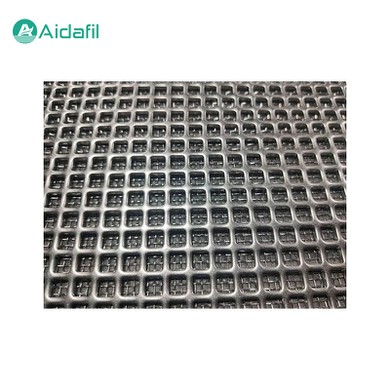

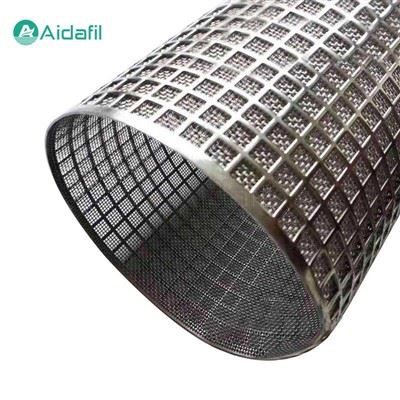

Square Hole Punching Plate Composite Sintered Mesh

The square hole punching plate composite sintered mesh is composed of a layer of punching plate and several layers of square hole mesh sintered together. The number of layers and the mesh size of the wire mesh are determined according to different use conditions and purposes. Because it sintered the pressure-resistant skeleton and the filter mesh into one, it has a better backwashing effect and a small pressure drop loss. It is now widely used in water treatment, beverage, food, metallurgy, chemical and pharmaceutical industries.



Characteristics of square hole punching plate composite sintered mesh

1. Wide range of filtration accuracy

From 1μ-200μ, there is reliable filtration performance;

2. Stable filtration accuracy

Due to the protection of the upper and lower layers of wire mesh, coupled with the diffusion solid fusion sintering process, the mesh of the filter layer is not easy to deform;

3. Good strength

Due to the support of the fourth and fifth layers, it has high pressure resistance and mechanical strength;

4. Easy to clean

The surface filter material is used, which is easy to clean and is particularly suitable for backwashing;

5. High temperature resistance

Can withstand a high temperature of 480°C;

6. Corrosion resistance

Due to the use of SUS316L material, it has high corrosion resistance;

7. Easy to process

Suitable for cutting, bending, stamping, stretching, welding and other processing conditions.



Application fields of square hole punching plate composite sintered mesh

1. Mines: used for screening and filtering in mines;

2. Filtration: used for filtering in water treatment, beverage, food, metallurgy, chemical and pharmaceutical industries;

3. Medicine: used for filtering and separation in the pharmaceutical industry;

4. Grain screening: used for grain screening and grading;

5. Indoor sound insulation: used for indoor sound insulation and silencing;

6. Grain depot ventilation: used for grain depot ventilation and heat dissipation;

7. Mechanical protection: used for mechanical protection and isolation.



Advantages of square hole punching plate composite sintered mesh

1. The mesh hole is smooth and has excellent backwashing and regeneration function. It can be used repeatedly after cleaning. It is an extremely suitable choice for continuous and automated operation procedures.

2. The mechanical strength of the punching plate composite sintered mesh is extremely high, and the pressure resistance is good. The punching plate is used as support during the use process, and the rigidity is good. It can be used as a dispersed cooling material in a high temperature environment, and even used as a fluidizing plate in the steel industry.

3. The filtering effect is good and it is relatively stable when working. At the same time, the punching plate composite sintered mesh is resistant to high temperature and corrosion. It can be used for boring filtering, washing, drying and other work in the pharmaceutical industry.

4. The punching plate composite sintered mesh is easy to clean and not easy to deform, so it does not require too much manpower, which can effectively reduce the manufacturer's low cost investment.



Parameters

Nominal precision (μm)	Absolute precision (μm)	Gases permeability (L/min · dm2 · kPa)	Bubbling pressure (pa)
1	6-7	180	5300-6000
2	8-9	240	4300-5000
5	11-13	260	3000-3700
10	16-18	310	2700-3300
15	24-26	350	2000-2600
20	28-32	450	1800-2300
25	34-36	620	1400-1900
30	40-45	690	1200-1700
40	50-55	720	1000-1500
50	71-80	850	900-1200
70	89-95	900	700-1100
100	110-120	1080	650-1000
150	180-200	2600	550-800
200	260-280	2800	450-600



Precautions for square hole punching plate composite sintered mesh

1. When using the square hole punching plate composite sintered mesh, the appropriate aperture and number of layers should be selected according to the actual situation to ensure the filtering effect and service life.

2. During installation and use, collision and damage to the square hole punching plate composite sintered mesh should be avoided to avoid affecting its filtering effect and service life.

3. When cleaning the square hole punching plate composite sintered mesh, appropriate cleaning methods and cleaning agents should be used to avoid damage to it.

4. During use, the square hole punching plate composite sintered mesh should be inspected and maintained regularly to detect and deal with problems in time to ensure its normal operation.
