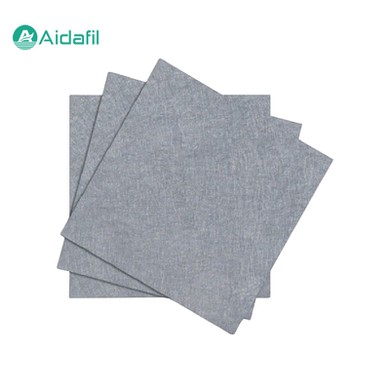

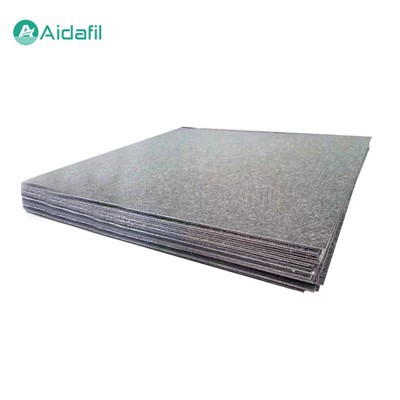

Excellent Performance Stainless Steel Sintered Fiber Felt

The excellent performance stainless steel sintered fiber felt is made of stainless steel fibers which have excellent corrosion resistance, high temperature resistance and high strength. These fibers are formed into a felt with a complex three-dimensional network structure through non-woven paving and stacking processes, and then sintered at high temperature, so that the fibers are fused and connected to each other to obtain a stable structure.



As an advanced filter material, stainless steel sintered fiber felt plays an important role in many fields. With its unique performance and advantages, it has become an indispensable part of modern industry.



Characteristics of stainless steel fiber

Stainless steel fiber has many outstanding characteristics, such as excellent corrosion resistance, which can resist the erosion of various corrosive media, ensuring its long-term stable use in harsh environments. At the same time, it also has good high temperature resistance, which can keep its physical and chemical properties unchanged under high temperature conditions. High strength is also one of its remarkable features, enabling it to withstand greater pressure and mechanical loads.



Structure of stainless steel sintered fiber felt

The excellent performance stainless steel sintered fiber felt has a three-dimensional mesh porous structure. This special structure gives it an extremely high porosity, and a large number of micropores are evenly distributed, forming an effective filtration channel. This porous structure not only facilitates the passage of fluids, but also achieves efficient interception of particles of different particle sizes.



Parameters

Model	Filter precision (μm)	Bubbling point pressure (pa)	Air permeability (L/min, dm2, kpa)	Porosity (%)	Containment capacity (mg/cm2)	Thickness (mm)	Fracture strength (Mpa)
		Basic value	Basic value	Basic value	Basic value	Basic value	Basic value
ADZB-5	5	6800	47	75	5	0.3	32
ADZB-7	7	5200	63	76	6.5	0.3	36
ADZB-10	10	3700	105	75	7.8	0.37	32
ADZB-15	15	2450	205	79	8.6	0.4	23
ADZB-20	20	1900	280	80	15.5	0.48	23
ADZB-25	25	1550	355	80	19	0.62	20
ADZB-30	30	1200	520	80	26	0.63	23
ADZB-40	40	950	670	78	29	0.68	26
ADZB-60	60	630	1300	85	36	0.62	28
	Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%



Performance advantages of stainless steel sintered fiber felt

1.High filtration accuracy and dirt holding capacity

It can accurately filter out tiny impurities and particles, and at the same time has a large dirt holding capacity, which can accommodate more pollutants without affecting its filtration effect, thereby extending its service life.

2. Low pressure loss and large flow

While ensuring the filtration effect, its pressure loss is relatively small, and the fluid can pass through more smoothly, ensuring the flow demand of the system and improving work efficiency.

3. Strong corrosion resistance and high temperature resistance

Whether facing corrosive substances such as acids, alkalis, and salts, or high temperature environments, it can show excellent stability and adapt to various complex and harsh working conditions.

4. Good mechanical strength

It has high mechanical strength and is not easy to be damaged or deformed during use, ensuring its long-term reliable operation.



Wide application areas

1. Petrochemical Industry

In the field of petrochemical industry, the excellent performance stainless steel sintered fiber felt is used for filtering and purifying crude oil, removing impurities and particulate matter, and ensuring the quality of oil products. At the same time, in the chemical production process, it is also used for filtering and separating various chemical raw materials and products to ensure the smooth progress of the production process and the purity of the products.

2. Automobile Industry

In automobile manufacturing, it is used in key parts such as fuel filtration and air filtration of the engine to effectively filter out tiny impurities and pollutants, ensure the efficient operation and good performance of the engine, and extend the service life of the engine.

3. Electronic Industry

For the high purity requirements of the electronics industry, stainless steel sintered fiber felt can play an important role. It can be used for gas filtration and liquid filtration in the production process of electronic components, providing reliable guarantee for the high-quality production of electronic products.

4. Environmental Protection

In terms of environmental protection, it can be used for sewage treatment, waste gas treatment, etc., to help remove harmful substances in sewage and waste gas, reduce pollution to the environment, and have positive significance for the improvement of the ecological environment.

5. Food and Beverage Industry

In food and beverage processing, it is crucial to ensure the hygiene and safety of products. Stainless steel sintered fiber felt can be used for filtering liquid food, removing possible impurities and microorganisms, and ensuring the quality and taste of food.

6. Aerospace field

Due to its outstanding performance, it also has important applications in the aerospace field. For example, in the key systems of spacecraft, it is used to filter various fluids to ensure the stable operation and safety of the system.
