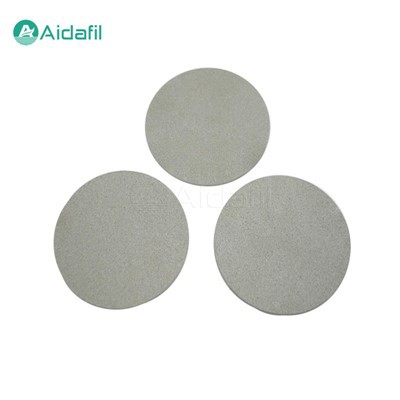

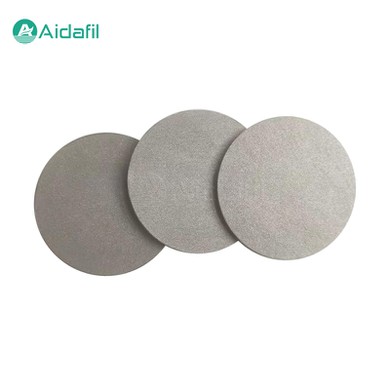

Corrosion Resistance Titanium Powder Sintered Filter Disc

The corrosion resistance titanium powder sintered filter disc is a filter material made of pure titanium powder sintered at high temperature. It has the characteristics of high porosity, low flow resistance, good corrosion resistance and high strength, and is suitable for filtration needs in chemical, electronics, medicine, food and beverage, environmental protection and other industries, such as filtering chemical liquids, gases, liquid medicines, food and beverages, etc.



Performance characteristics

1. High porosity

The titanium powder sintered filter disc has a porosity of more than 70%, which can effectively provide a large filtration area and a fast filtration speed.

2. Low flow resistance

Due to its unique porous structure, titanium powder sintered filter discs generate less resistance during filtration, which is conducive to improving filtration efficiency.

3. Good corrosion resistance

Titanium material itself has excellent corrosion resistance, especially in acid-base environments, titanium filter discs exhibit excellent stability.

4. High strength

Although the titanium powder sintered filter disc is porous, it still has high mechanical strength and can withstand certain pressure differences and backwashing processes.

5. Good high temperature resistance

It can maintain its filtration function and physical properties at higher temperatures.



Manufacturing process

The manufacturing process of the corrosion resistance titanium powder sintered filter disc mainly includes the following steps:

1. Titanium powder preparation

Spherical or irregular-shaped titanium powder is prepared by atomization, electrolysis or chemical reduction, and the particle size of the powder is usually between 10 and 100 microns.

2. Powder mixing

Mix titanium powder with an appropriate amount of binder to form a malleable mixture.

3. Forming

The mixed titanium powder is pressed through a mold into a disc of the desired shape and size.

4. Sintering

The molded titanium powder discs are sintered at high temperatures to fuse the contact points between the powders to form a strong porous structure.

5. Post-processing

The sintered disc needs to be cooled, cleaned, binder removed, and necessary machining, such as polishing, punching, etc.



Parameters

Value of particles blocked in liquid		Permeability (no less than)
Filtration efficiency (98%)	Filtration efficiency (99.9%)	Permeability (10-12m2)	Relative permeability	MPa
1	3	0.05	5	3
3	5	0.08	8	3
5	10	0.3	30	3
10	14	0.8	80	3
15	20	1.5	150	3
20	32	2	200	3
35	52	4	400	2.5
60	85	6	600	2.5
80	124	10	1000	2.5



Performance advantages

1. Long life

Due to its durability, it can be used for a long time, reducing replacement costs.

2. Reusability

After proper cleaning and treatment, it can be reused multiple times.

3. Wide applicability

It is suitable for different filtration requirements in a variety of industries and fields.



Application field

The corrosion resistance titanium powder sintered filter discs are widely used in many fields due to their excellent properties.

1. Medical industry

Used for biological fluid filtration, drug separation, and medical gas purification.

2. Pharmaceutical industry

In the pharmaceutical process, it is used for the filtration of impurities in raw materials and the clarification of pharmaceutical solutions.

3. Petrochemical

In petroleum refining and chemical production, it is used for the filtration and separation of chemicals.

4. Water treatment

Used for suspended solids and microbial filtration in drinking water, industrial water, and wastewater treatment.

5. Food and beverage

In food and beverage processing, it is used to remove impurities and clarify liquids.



Selection and maintenance of titanium powder sintered filter discs

1. Select the main points

According to the specific application scenario, consider factors such as filtration accuracy, size specification, and working pressure to make a reasonable choice.

2. Maintenance methods

Perform regular cleaning to maintain its good filtration performance; avoid excessive extrusion and collision to prevent damage.
