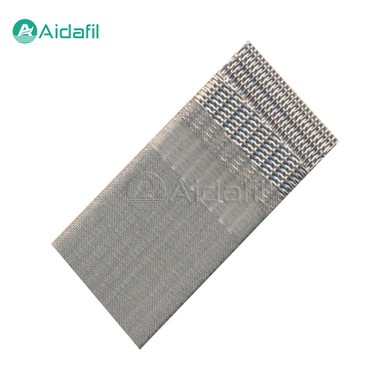

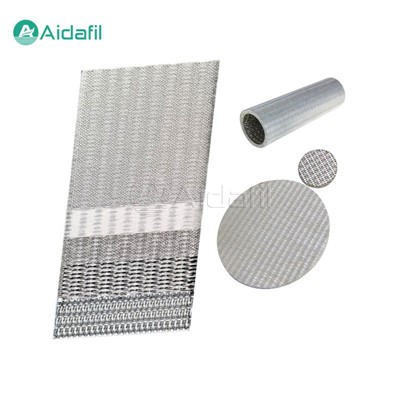

Standard 5-Layer Sintered Woven Wire Mesh

The standard 5-layer sintered woven wire mesh is a widely used filter material made of five layers of stainless steel wire mesh stacked and vacuum sintered. This five-layer structure usually includes protection layer, filtration control layer, dispersion layer, support skeleton layer and skeleton layer.

- Protective layer. Located on the outermost layer, it is used to protect the internal filter layer from the direct influence of the external environment and prolong the service life of the sintered mesh.

- Filtration control layer. Mainly responsible for the filtration function, through its fine mesh structure to achieve fluid filtration and screening.

- Dispersion layer. Located under the filtration control layer, it helps to disperse the impurities trapped by the filter layer and prevent them from clogging the filter holes.

- Support skeleton layer. Provides support for the sintered mesh to ensure the stability and strength of its overall structure.

- Skeleton layer. As the innermost layer, it is the foundation of the entire sintered mesh, withstanding the pressure and mechanical impact of the entire structure.



Characteristics

1. Good strength and rigidity

The standard 5-layer sintered woven wire mesh is specially designed and vacuum sintered to give it extremely high mechanical strength and compressive strength. This strength property guarantees stable filtration performance in a variety of complex environments.

2. High filtration accuracy and strong stability

The design of the standard 5-layer sintered woven wire mesh ensures the uniformity and stability of the filtration accuracy. The filter layer is well protected and diverted in the second layer, and the filtration accuracy range is large (from 1μ to 200μ), and it can provide reliable filtration performance.

3. Strong corrosion resistance and good heat resistance

Using SUS316L material, the standard 5-layer sintered woven wire mesh has excellent corrosion resistance and heat resistance. It can withstand continuous filtration from -200 °C to 650 °C, and is suitable for various acid and alkali environments.

4. Easy to clean

Due to the use of surface filter material, the standard 5-layer sintered woven wire mesh is easy to clean and is especially suitable for backwashing. This property ensures that it can maintain good filtration performance during long-term use.

5. Good processing performance

Suitable for cutting, bending, stamping, stretching, welding and other processing conditions, convenient for users to customize and process according to actual needs.



Parameters

Model number	Nominal precision (μm)	Absolute precision (μm)	Gases permeability (L/min · dm2 · kPa)	Bubbling pressure (pa)
ADBSW1	1	6-7	180	5300-6000
ADBSW2	2	8-9	240	4300-5000
ADBSW5	5	11-13	260	3000-3700
ADBSW10	10	16-18	310	2700-3300
ADBSW15	15	24-26	350	2000-2600
ADBSW20	20	28-32	450	1800-2300
ADBSW25	25	34-36	620	1400-1900
ADBSW30	30	40-45	690	1200-1700
ADBSW40	40	50-55	720	1000-1500
ADBSW50	50	71-80	850	900-1200
ADBSW70	70	89-95	900	700-1100
ADBSW100	100	110-120	1080	650-1000
ADBSW150	150	180-200	2600	550-800
ADBSW200	200	260-280	2800	450-600



Application

The standard 5-layer sintered woven wire mesh is widely used in various filtration and screening applications, including water treatment, petrochemical, pharmaceutical, food and beverage industries. Its stable performance and excellent filtration effect make it an indispensable filter material in these industries.



Advantages

1. Stable and reliable performance

Due to its high strength, high stability, and excellent corrosion and heat resistance, the standard 5-layer sintered woven wire mesh can maintain stable filtration performance in various complex environments, providing users with reliable filtration solutions.

2. High filtration accuracy

Through the rational design of the five-layer structure and the selection of materials, the standard 5-layer sintered woven wire mesh can provide filtration accuracy ranging from 1 μ to 200 μ, meeting the needs of users for high-precision filtration.

3. Long service life

Due to its corrosion resistance, heat resistance, and ease of cleaning, the standard 5-layer sintered woven wire mesh has a long service life, reducing maintenance costs for users.

4. Wide range of applications

The standard 5-layer sintered woven wire mesh is suitable for filtration requirements in a variety of industries and fields, such as water treatment, petrochemical, pharmaceutical, food and beverage, etc., providing users with a wide range of options.

5. Customized service

Due to its excellent processing performance, the standard 5-layer sintered woven wire mesh can be customized and processed according to the actual needs of users to meet their individual needs.
