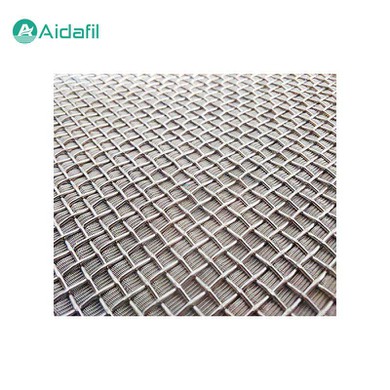

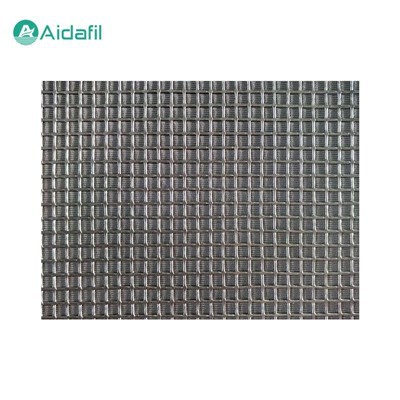

High Flow Low Resistance Sintered Mesh Filter Material

The high flow low resistance sintered mesh filter material is a new type of filter material with high mechanical strength, compressive strength, uniform and stable filtration accuracy, and excellent backwashing and regeneration performance. It combines a variety of advantages, making it widely used in many industrial fields. Its core feature is "high flow" and "low resistance", which combine to provide users with high-efficiency and low-cost filtration solutions.



Basic composition and material

1. Standard material

The high flow low resistance sintered mesh filter material is usually made of stainless steel 304 or 316L as the main material. These materials not only provide good corrosion resistance, but also ensure that the sintered mesh has high mechanical strength and compressive strength, suitable for a variety of complex industrial environments.

2. Multi-layer structure

A typical sintered mesh structure consists of protective layer, filter layer, separation layer and support layer. This multi-layer structure design not only enhances the overall rigidity and stability of the sintered mesh, but also enables the sintered mesh to achieve surface filtration, thereby improving filtration efficiency and backwashing regeneration performance.



Performance features and advantages

1. Low resistance and high volume

As the name suggests, the high flow low resistance sintered mesh filter material is designed to reduce resistance to the passage of liquids or gases while maximizing filtration flux. This property makes it excellent in applications where large amounts of fluids need to be handled, such as water treatment and chemical production processes.

2. High accuracy and stability

The precision of the high flow low resistance sintered mesh is uniform and stable, and the mesh can be kept unchanged under various conditions, which is essential for the application field requiring high-precision filtration.

3. Extensive use environment

It can operate normally in the temperature range of -200°C to 600°C and in acid-base environments, ensuring its wide applicability in different industrial processes.

4. Excellent cleaning performance

The high flow low resistance sintered mesh has excellent countercurrent cleaning effect, can be used repeatedly, and has a long service life, which is of great significance in reducing production costs and improving production efficiency.



Parameters

Nominal precision (μm)	Bubbling point pressure (Pa±10%)	Permeability (L/min · Dm2 ±20%)	Thickness (mm)	Opening ratio (%)	Porosity (%)
2	5200	300	1.5	4.2	50.3
5	3500	390		4.0	47.5
10	2800	560		8.8	48.0
15	2650	650		12.4	47.8
20	2000	1160		13.5	47.5
25	1680	1250		13.0	49.0
30	1350	1700		16.6	47.5
40	1200	2950		11.2	52.5
50	1100	3200		15.2	52.5
75	850	3300		36.0	52.0
100	650	3520		39.0	50.0



Application fields

Due to its outstanding performance, the high flow low resistance sintered mesh filter material has been widely used in a variety of fields.

1. Chemical production

In the production process of chemical products, precision filtration of raw materials and finished products is required to ensure product quality and avoid blockage of pipelines and equipment. The high flow low resistance sintered mesh can be used to filter insoluble impurities in chemical raw materials and residual catalysts in finished products.

2. Water treatment industry

In the process of industrial water and wastewater treatment, high flow low resistance sintered mesh is used to initially filter suspended solids in water and protect subsequent membrane treatment or other fine treatment equipment.

3. Food and beverage industry

In the production of beverages or alcoholic beverages, the use of the high flow low resistance sintered mesh can effectively remove insoluble impurities from the raw materials, ensuring the taste and safety of the product.

4. Pharmaceutical industry

Pharmaceutical production requires extremely high levels of environmental cleanliness, and the use of the high flow low resistance sintered mesh can pre-filter air or liquids, reducing the risk of microbial contamination.
