Mesh-Added Metal Sintered Fiber Felt

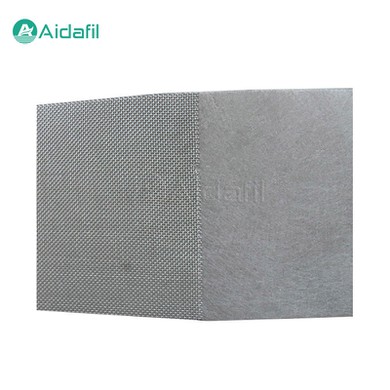

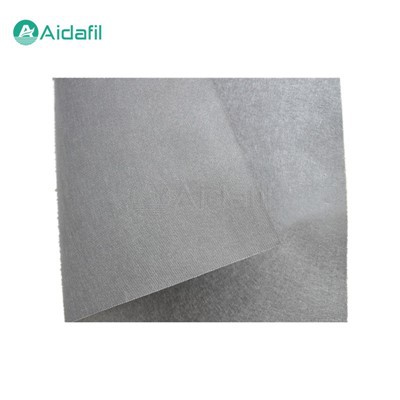

The mesh-added metal sintered fiber felt represents a special metal filter material, which is developed on the basis of ordinary sintered felt. This special material is made by laying extremely fine metal fibers non-woven, then stacking and high temperature sintering. A thin layer of metal wire mesh is rolled on the surface of the sintered felt to form a structure with protective mesh. Due to the ease of controlling the pore size and pores of metal micropores, the mesh-added metal sintered fiber felt can achieve high-precision filtration.



Characteristics

As a high-performance filter material, the mesh-added metal sintered fiber felt has several outstanding characteristics, which make it perform well in various industrial applications.



First of all, the mesh-added metal sintered fiber felt has a high-precision filtration effect. Since it is made of extremely fine metal fibers through non-woven laying, stacking and high-temperature sintering, it can form a very fine microporous structure. This structure allows it to effectively intercept tiny particles and achieve high-precision filtration.



Secondly, the mesh-added metal sintered fiber felt has high strength and good pressure resistance. A thin layer of metal wire mesh is rolled on its surface, which not only enhances the overall strength of the material, but also improves its pressure resistance. This enables the mesh-added metal sintered fiber felt to work stably in high pressure environments and is not easy to deform or damage.



In addition, the mesh-added metal sintered fiber felt also has good anti-clogging properties. Due to the special design of its microporous structure, it can effectively prevent the clogging of particulate matter, thus prolonging the service life of the filter. At the same time, it also has excellent corrosion resistance and high temperature resistance, which can maintain stable performance in harsh working environments.



Finally, the mesh-added metal sintered fiber felt also has the advantages of being washable and reusable. When the filter is clogged, its filtration performance can be restored by cleaning without the need to replace the filter with a new one. This not only reduces the cost of use, but also benefits the environment.



Parameters

Model	Filter precision (μm)	Bubbling point pressure (pa)	Air permeability (L/min, dm2, kpa)	Porosity (%)	Containment capacity (mg/cm2)	Thickness (mm)	Fracture strength (Mpa)
		Basic value	Basic value	Basic value	Basic value	Basic value	Basic value
ADZB-5	5	6800	47	75	5	0.3	32
ADZB-7	7	5200	63	76	6.5	0.3	36
ADZB-10	10	3700	105	75	7.8	0.37	32
ADZB-15	15	2450	205	79	8.6	0.4	23
ADZB-20	20	1900	280	80	15.5	0.48	23
ADZB-25	25	1550	355	80	19	0.62	20
ADZB-30	30	1200	520	80	26	0.63	23
ADZB-40	40	950	670	78	29	0.68	26
ADZB-60	60	630	1300	85	36	0.62	28
Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%



Application

As a high-efficiency filter material, the mesh-added metal sintered fiber felt is widely used in many industries due to its unique physical and chemical properties.

1. Petrochemical industry

In the process of oil refining and chemical production, this material can be used for catalyst recovery, oil-water separation, gas purification and other key links, effectively improving production efficiency and product quality.

2. Automobile manufacturing

In automotive production, especially in the manufacturing of components for fuel systems, exhaust systems, and lubrication systems, the application of this material helps to enhance the durability and reliability of components.

3. Pharmaceutical industry

In the process of pharmaceutical production, especially in the process of liquid filtration and gas sterilization, this material is widely used because of its high-precision filtration ability and good chemical stability.

4. Food and beverage industry

In food processing and beverage production, this material is used for liquid filtration and gas purification to ensure product purity and safety.

5. Environmental protection industry

In environmental protection projects such as wastewater treatment and waste gas treatment, this material can effectively remove harmful substances and protect environmental safety.

6. Aerospace sector

In the manufacture of aeronautical engine and spacecraft, this material is used for fuel filtration and gas purification to ensure the stable operation of the system.

7. Electronics industry

In precision industries such as semiconductor manufacturing and liquid crystal panel production, this material is used for filtering high-purity gases to ensure the cleanliness of the production environment.

8. Water treatment industry

In water treatment facilities, this material is used to remove suspended solids, microorganisms, and other impurities from water, providing clean water resources.

9. Nuclear industry

In the operation and maintenance of nuclear power plants, this material is used to capture and isolate radioactive substances to ensure nuclear safety.

10. Research fields

In laboratory research, this material is used for high-precision sample preparation and material separation, supporting scientific research.
