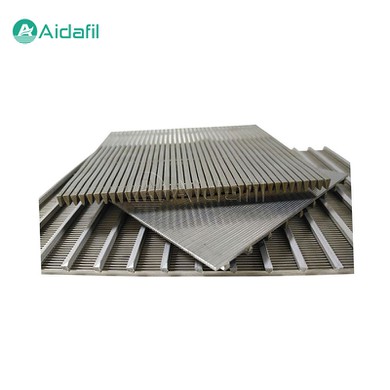

Stainless Steel Wedge Wire Screen Flat Panel

The stainless steel wedge wire screen flat panel is a metal mesh structure element that uses wedge-shaped wire as raw material and has been processed by special process. It uses high-quality stainless steel (such as 304, 316L and other materials) wedge-shaped wire, which has been welded by advanced processing technology. The process is strict to ensure product quality. The wedge wire screen panel has the advantages of small size and high screening efficiency and its processing and material selection are often inseparable from product quality.



Features

--- Structural features

The stainless steel wedge wire screen flat panel has a continuous V-groove metal wire. This structure makes the screen panel have a larger opening area, thereby improving the filtration efficiency. At the same time, the support rod extending perpendicular to the wrapping wire can strengthen and maintain the correct design configuration of the screen panel, so that it can cope with strong pressure requirements.



--- Performance features

1. High precision

The stainless steel wedge wire screen flat panel has precise screening accuracy, and can be customized with different mesh sizes according to different application requirements to meet various filtering requirements.

2. High open porosity

Compared with other traditional filter materials, the stainless steel wedge wire screen flat panel has a higher open porosity, which means that more fluid can pass through the screen, thereby improving the filtering efficiency.

3. Easy to backwash

The stainless steel wedge wire screen flat panel has a smooth surface and small gap size, which is easy to clean and maintain. When cleaning is required, backwashing can be used to easily remove dirt and impurities attached to the screen panel.

4. Long life

Made of high-quality stainless steel material, the wedge wire screen flat panel has excellent corrosion resistance and wear resistance, and can be used for a long time in harsh environments without damage.

5. Customization

The stainless steel wedge wire screen flat panel can be customized with different sizes, shapes and specifications according to customer needs to adapt to various complex application scenarios.



Parameters

Material	Stainless steel 304, 316L, 904L, Hastelloy
Gap	Minimum 0.015mm
Diameter	Customized
Filtering direction	Customized (from inside to outside, or from outside to inside)



Application scenarios

1. Environmental protection industry

- Wastewater treatment.

The stainless steel wedge wire screen flat panels are widely used in the field of sewage treatment, which can remove suspended matter, sediment, grease and other impurities in water and improve water quality. In the process of wastewater treatment and sewage filtration, wedge wire screen panels can effectively intercept and separate solid particles and harmful substances, reducing the burden on subsequent treatment equipment.

- Industrial wastewater treatment.

In chemical, petroleum, pharmaceutical and other industrial fields, the stainless steel wedge wire screen flat panels are used to filter and separate solid particles, oils, heavy metal ions and other harmful substances in wastewater. Through the filtering effect of the wedge wire screen panel, most of the pollutants in the wastewater can be removed, reducing pollution to the environment.

2. Mining and mineral processing

- Tailing recovery.

In the mining field, stainless steel wedge wire screen flat panels can be used for the recovery and reuse of tailings. Through screening and filtering, waste rock and impurities in tailings can be removed to improve the grade and recovery rate of ore.

- Ore dehydration.

During ore processing, stainless steel wedge wire screen flat panels can be used for ore dehydration. Through screening and filtering, excess water and impurities in the ore can be removed, improving the quality and processing efficiency of the ore.

3. Oil and gas industry

- Drilling mud recovery.

During oil drilling, stainless steel wedge wire screen flat panels can be used to recover useful substances in drilling mud. Through screening and filtering, solid particles and harmful substances in the mud can be removed, improving the reuse rate of the mud and reducing costs.

- Oil and gas separation.

During oil and gas extraction and processing, stainless steel wedge wire screen flat panels can be used for oil and gas separation. Through screening and filtering, liquid and solid impurities in the gas can be removed to improve the quality and purity of oil and gas.

4. Food industry:

- Food production filtration.

During food production, stainless steel wedge wire screen flat panels can be used for filtration and clarification of liquid foods. If liquid foods such as juice, beer, and dairy products need to remove solid particles and impurities in the production process to improve the taste and quality of the product. Wedge wire screen panels can effectively remove these impurities and retain the nutrients and flavor in the food.



Why Choose Us

· Professional manufacturer with many years' experience

· Good quality with competitive price

· OEM & ODM are welcome

· Various payment items are acceptable

· Good service by experienced manager
