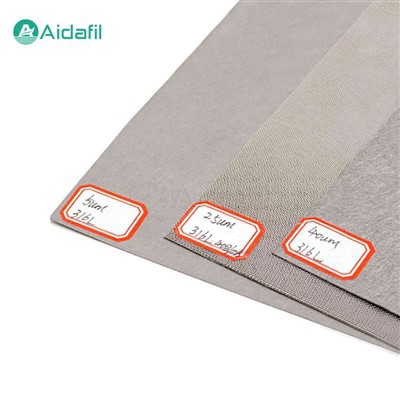

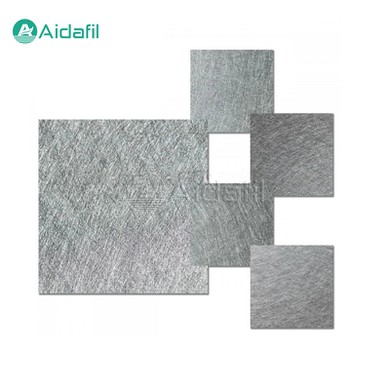

316L Stainless Steel Fiber Sintered Felt

The 316L stainless steel fiber sintered felt is a high-performance composite material made of 316L stainless steel fiber through a specific weaving, lamination and sintering process. It combines the high strength, corrosion resistance and high temperature resistance of stainless steel fiber, as well as the overall performance advantages of sintered felt, and is widely used in chemical, petroleum, pharmaceutical, food and other industries.



Characteristics of 316L stainless steel fiber

The 316L stainless steel is an alloy suitable for applications requiring high corrosion resistance. Because it contains high nickel and molybdenum components, it exhibits superior corrosion resistance in harsh environments. 316L stainless steel fiber is a new type of material made of 316L stainless steel wire through stretching, weaving and other processes. It has the following characteristics:

1. Corrosion resistance

The 316L stainless steel fiber has excellent corrosion resistance and can resist a variety of corrosive media, such as salt water, acid, alkali, etc.

2. High temperature resistance

The 316L stainless steel itself has good high temperature resistance. Therefore, 316L stainless steel fiber also has high high temperature resistance and can withstand high temperatures of about 550°C.

3. Wear resistance

The 316L stainless steel fiber has high hardness and strength, so it has good wear resistance.

4. Good electromagnetic properties

The 316L stainless steel fiber has low resistivity and high thermal conductivity, which makes it potentially useful in electrical and heat exchange applications.



Production process of sintered felt

The 316L stainless steel fiber sintered felt is a composite material made of fiber material through a sintering process, which has high structural strength and stability. The production process of 316L stainless steel fiber sintered felt mainly includes the following steps:

1. Fiber preparation

316L stainless steel wire is made into fiber through stretching, weaving and other processes.

2. Fiber lamination

The prepared 316L stainless steel fiber is laminated to form a fiber layer with a certain thickness and strength.

3. Sintering

The laminated fiber layer is sintered at high temperature to cause a chemical reaction between the fibers to form a dense sintered body.

4. Post-processing

The sintered felt is cut, shaped and other processes are performed to meet the needs of different applications.



Parameters

Filter precision (μm)	Bubbling point pressure (pa)	Air permeability (L/min, dm2, kpa)	Porosity (%)	Containment capacity (mg/cm2)	Thickness (mm)	Fracture strength (Mpa)
	Basic value	Basic value	Basic value	Basic value	Basic value	Basic value
5	6800	47	75	5	0.3	32
7	5200	63	76	6.5	0.3	36
10	3700	105	75	7.8	0.37	32
15	2450	205	79	8.6	0.4	23
20	1900	280	80	15.5	0.48	23
25	1550	355	80	19	0.62	20
30	1200	520	80	26	0.63	23
40	950	670	78	29	0.68	26
60	630	1300	85	36	0.62	28
Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%



Application

The 316L stainless steel fiber sintered felt has the advantages of corrosion resistance, high temperature resistance, and wear resistance, which makes it widely used in many fields:

1. Filter material

The 316L stainless steel fiber sintered felt has high filtration efficiency and long service life. It can be used as a high-efficiency filtration material to capture and isolate tiny particles such as dust and bacteria.

2. Sealing material

The 316L stainless steel fiber sintered felt has good sealing performance. It can allow fluid or gas to pass through it while ensuring sealing. It is suitable for sealing various containers, pipelines and other equipment.

3. Sound-absorbing material

The 316L stainless steel fiber sintered felt has a porous structure that can absorb sound waves and reduce noise. It is suitable for noise control and sound insulation.

4. Heat exchange material

The 316L stainless steel fiber sintered felt has good thermal conductivity and can be used as a heat exchange material for equipment such as heat exchangers and radiators.

5. Protective material

The 316L stainless steel fiber sintered felt has high strength and wear resistance. It can be used as a protective material to protect equipment and working environment.

6. Chemical, petroleum, pharmaceutical, food and other industries

The 316L stainless steel fiber sintered felt has broad application prospects in chemical, petroleum, pharmaceutical, food and other industries due to its excellent corrosion resistance and high temperature resistance.
