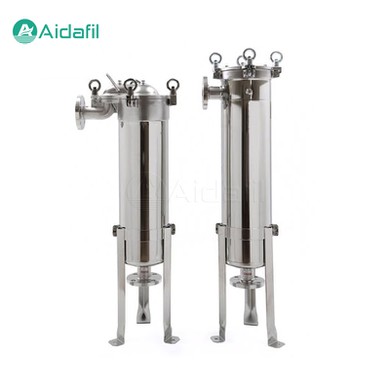

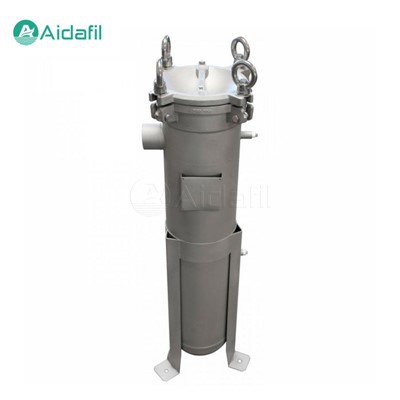

Stainless Steel Single Bag Filter

The stainless steel single bag filter is a bag filter made of stainless steel, mainly composed of three parts: filter container, support basket and filter bag. The filter has the characteristics of compact structure, easy installation, high filtration efficiency and long service life, and is widely used in liquid filtration processes in food and beverage, pharmaceutical, chemical, petroleum and other industries.



Working principle

The working principle of the stainless steel single bag filter is relatively simple. When the liquid to be filtered enters the filter through the inlet, it first passes through the supporting net basket. The function of the net basket is to intercept the solid impurities of the larger particles and prevent them from entering the filter bag. Then, the liquid continues to flow into the filter bag. At this time, fine suspended solids and particles are intercepted by the filter bag, while the clean liquid flows out through the micropores of the filter bag, thus realizing the purification of the liquid.



Highlights

1. The support basket has a high porosity, ensuring large flow and small volume of the filtration system.

2. The support basket has a high porosity, which also increases the actual use area of the filter bag and extends its service life.

3. The filter bag of the stainless steel single bag filter is easy to replace.

4. The evenly distributed streamlines of the stainless steel single bag filter make the impurities trapped in the filter bag medium evenly distributed.

5. The stainless steel single bag filter has high filtration efficiency.

6. The high-strength support basket also ensures the high mechanical strength of the filter bag.

7. The standard-specification support basket is suitable for all standard size filter bags, making the filter bags highly interchangeable.



Technical parameters

Filtering area	0.1-0.5m2
Operating pressure	1.0Mpa
Filter cylinder diameter	219mm
Flow rate	40T/H
Materials	304, 316 stainless steel
Filtering accuracy	0.1-100μm
Inlet & outlet caliber	DN25-DN80



Advantages

1. High-efficiency filtration

The stainless steel single bag filter uses high-quality filter bags with extremely high filtration accuracy, which can effectively remove tiny impurities and suspended solids in liquids.

2. Easy to clean and replace

The structure of the stainless steel single bag filter is designed to be reasonable, easy to disassemble, and professional tools are not required to clean and replace the filter bag, reducing maintenance costs.

3. Strong corrosion resistance

Stainless steel material has excellent corrosion resistance, which can adapt to the working requirements of various harsh environments and prolong the service life of the filter.

4. Energy-saving and environmentally friendly

The stainless steel single bag filter adopts a physical filtration method without adding chemicals, which saves energy and protects the environment.

5. Save space

The stainless steel single bag filter is small in size, takes up less space, and is suitable for various occasions with limited space.



Application

1. In the production process of fruit juice, alcohol, dairy products, etc., the stainless steel single bag filter can effectively remove impurities and microorganisms from liquids to ensure product quality and safety.

2. Pharmaceutical industry

In the pharmaceutical production process, the stainless steel single bag filter can be used to filter raw materials, intermediates, and finished pharmaceutical solutions to ensure the purity and stability of the drug.

3. Chemical industry

The stainless steel single bag filter can handle various chemical liquids, such as acids, alkalis, salts, etc., effectively removing solid particles and sediments.

4. Petroleum industry

In the process of oil extraction and refining, the stainless steel single bag filter can be used for the purification of crude oil, gasoline, diesel and other oils to improve the quality of the oil.

5. Other fields

In addition, the stainless steel single bag filter are also widely used in liquid filtration processes in water treatment, wastewater treatment, power generation, metallurgy, and other industries.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
