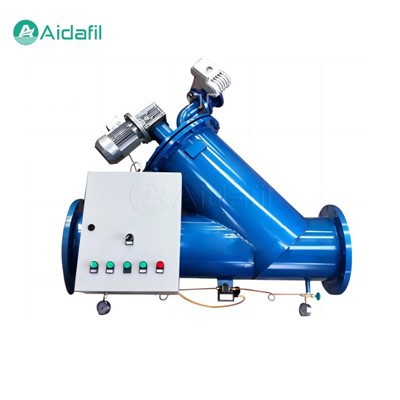

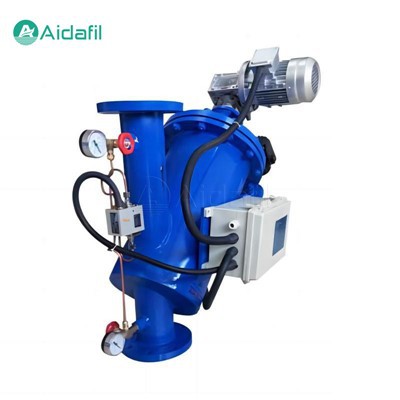

Automatic Brush Y-Type Self-Cleaning Filter

The automatic brush Y-type self-cleaning filter acts as an efficient water treatment equipment that is responsible for automatically removing impurities in the water system to ensure the continuous operation of the system and the stability of water quality. As a highly integrated and automated water filtration solution, the automatic brush Y-type self-cleaning filter has become the first choice for many industries to maintain the purity of water quality with its excellent self-cleaning ability, efficient and stable performance.



The entire enclosure of the device is shaped like a Y, hence the name.



Parameters

Rated flow	20-3000m³/h
Working pressure (minimum)	0.2MPa (customizable)
Working pressure	≤1.6MPa
Inlet & outlet	DN50-DN700
Working temperature	≤80°C (customizable)
Filtration precision	100-3000 micron
Filtering mesh	304, 316L
Equipment	Carbon steel, 304, 316L
Motor power	0.37-1.1kw
Voltage	380V 50Hz Three-phase
Self-cleaning flow	<1% of total flow
Self-cleaning duration	15s (adjustable)
Pressure differentials	0.5Kg/cm² (adjustable)



Competently constructed and fully functional system components

1. Sturdy housing

The housing of the automatic brush Y-type self-cleaning filter is usually made of high-strength corrosion-resistant materials, such as stainless steel or carbon steel, which can withstand high pressure and harsh environments, providing reliable protection for internal precision components.

2. High-efficiency filter cartridge design

The filter cartridge is the core part of filtration, with built-in multi-layer precision filters. Filters with different apertures are selected according to different filtration requirements to effectively intercept suspended solids, particulate matter and other impurities in the water and ensure that the effluent is clear.

3. Precision cleaning mechanism

The cleaning mechanism is composed of a cleaning brush and a driving device. The cleaning brush is made of various materials, such as a bristle brush or a stainless steel wire brush, which can be tightly fitted to the surface of the filter screen. By rotating, the sediment on the filter screen can be gently and thoroughly brushed away.

4. Intelligent controller hub

The advanced PLC control system is integrated to monitor the operating status of the filter in real time, such as pressure difference, flow rate, etc. Once the preset cleaning conditions are detected, the cleaning program is automatically triggered.

5. The source of power - cleaning the motor

In response to the instructions of the controller, the driving force required for the rotation of the cleaning brush is provided to ensure the efficient execution of the cleaning operation.

6. Electric ball valve for automatic sewage discharge

After receiving the cleaning instruction, the electric ball valve is quickly opened to discharge the washed dirt from the sewage outlet without manual intervention.



Intelligent operation and unattended efficient cleaning

1. Differential pressure automatic cleaning

The built-in differential pressure sensor of the system is the key to triggering the cleaning. When the impurities accumulated during the filtration process cause the differential pressure to rise to the set value, the cleaning procedure is automatically started without manual monitoring.

2. Regular cleaning and sewage discharge

In addition to pressure differential triggering, users can also set a regular cleaning mode according to actual operating conditions to ensure that the filter is automatically cleaned within a specific time period to adapt to different water quality changes and filtration requirements.

3. Manual control flexibility

In special circumstances, such as maintenance inspections or emergency treatment, the cleaning and sewage discharge process can be flexibly controlled through the manual operation mode to ensure the flexibility and controllability of the system operation.



Uninterrupted operation to ensure the continuity of production

1. Online cleaning, non-stop

The highlight of the automatic brush Y-type self-cleaning filter is that it can complete the cleaning and sewage discharge process without interrupting the water supply, ensuring the continuity and stability of the production process.

2. Improve efficiency and reduce energy consumption

Efficient and automated cleaning reduces energy consumption and production stagnation caused by frequent downtime for maintenance, improving overall work efficiency and saving costs for enterprises.

3. Extend equipment life

Regular and effective cleaning and drainage avoids damage to the filter due to the accumulation of impurities for a long time, prolonging the service life of the filter and its associated equipment.



Wide application to meet diverse needs

1. Industrial circulating water treatment

In the power, chemical, steel and other industries, it is used for pre-filtration of circulating water systems such as cooling towers and circulating pumps to maintain clean water quality and reduce equipment corrosion and scaling.

2. Sewage treatment

As a primary filtration unit, it effectively removes large particles of impurities in wastewater, reducing the burden on subsequent treatment units and improving overall treatment efficiency.

3. Drinking water treatment

In areas where high water quality standards are required, such as water plants and food and beverage processing, it is used to initially purify water sources to ensure that drinking water safety standards are met.

4. Agricultural irrigation

Protect the sprinklers, drip irrigation pipes and other precision components of the irrigation system from clogging, ensuring the uniformity and efficiency of farmland irrigation.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
