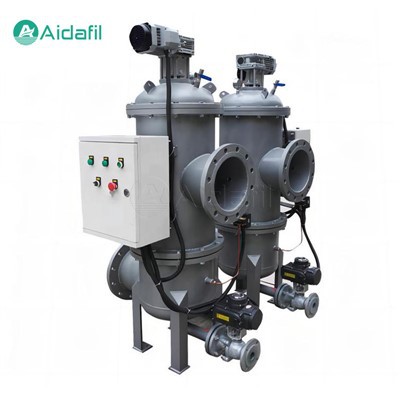

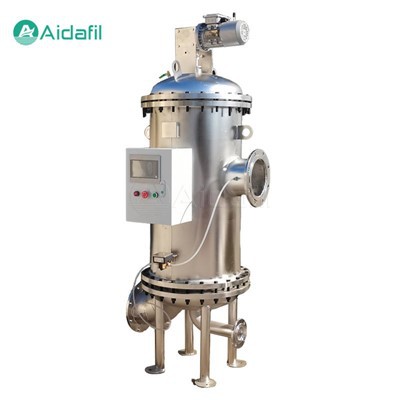

Intelligent-Operation Automatic Backwash Filter

The intelligent-operation automatic backwash filter is suitable for filtering out particulate impurities in liquids with high flow rate, high flow velocity and low viscosity. The liquid to be filtered enters the automatic backwash filter from the inlet and then enters the filter screen. The liquid flows from the inside of the filter screen to the outside, and flows out of the filter from the filter cartridge; the impurities discharged by the backwash are discharged from the sewage outlet. During the process of liquid flowing from the inside to the outside of the filter screen, solid particles are trapped inside the filter screen. With the increase of pollutants, the pressure difference between the polluted side and the cleaning side gradually increases. When the pressure difference reaches the set value, the pressure difference gauge sends a signal, and the filter starts the automatic backwashing process.



Technical parameters

Filtration precision	20 - 400 microns
System working pressure	0.2 - 1.0 Mpa
Water pressure required for backwashing	≥0.18 Mpa
Medium temperature	<60 degrees centigrade
Power supply voltage	AC 220V 1A
Control output voltage	DC 24V 1A per channel
Control mode	Differential pressure, timing, manual
Pipe material	Carbon steel, stainless steel, HDPE, etc.



"Fine filter screen to guard strategic pass" - The importance of filter screen

The filter screen of the intelligent-operation automatic backwash filter is like a solid line of defense, and its fineness directly determines the size of the impurity particles that can be intercepted. The filter screen is usually made of special materials, which have the advantages of high strength, corrosion resistance, etc., and can work stably for a long time in harsh environments. Different types of filter screens are suitable for different water quality and filtration requirements, providing accurate filtration protection for various application scenarios.



"Intelligent operation with no need to worry" - The charm of automation

Intelligent operation is a highlight of the intelligent-operation automatic backwash filter. It is equipped with an advanced control system that can monitor the water quality and the working status of the filter in real time. When backwashing is required, the system will automatically issue instructions without manual intervention. This intelligent operation not only improves work efficiency, but also greatly reduces labor costs and the risk of operational errors.



"The wonderful journey of backwashing" - A detailed explanation of the backwashing process

When the automatic backwash filter enters the backwash stage, a wonderful "journey" begins. First, the backwash mechanism will start, the direction of the water flow will change, and the impurities attached to the filter will be initialized. Then, the impurities are discharged from the filter with the water flow, and the filter is cleaned and regenerated. This process is fast and efficient, and the filter can be restored to its best working condition in a short time.



"Widely used to shows its magic" - The application field of automatic backwash filters

1. Industrial water treatment. In factories, automatic backwash filters can be used to purify production water, remove impurities and pollutants from the water, and ensure the normal operation of production equipment.

2. Sewage treatment. Helps treat solid impurities in wastewater, improve the purification effect of wastewater, and contribute to environmental protection.

3. Drinking water purification. To ensure the safety and hygiene of people's drinking water, so that people can drink water with confidence.

4. Seawater Desalination. It plays an important role in the desalination process, removing impurities and salts from seawater and providing support for the acquisition of freshwater resources.



"Maintenance for long-term youth" - How to make the automatic backwash filter work continuously and efficiently

In order for the automatic backwash filter to function stably for a long time, regular maintenance is essential. This includes regularly checking the status of the filter screen, cleaning the impurities inside the filter, and checking the operation of the control system. Through careful maintenance and maintenance, the service life of the filter can be extended to ensure that it always maintains high filtration performance.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
