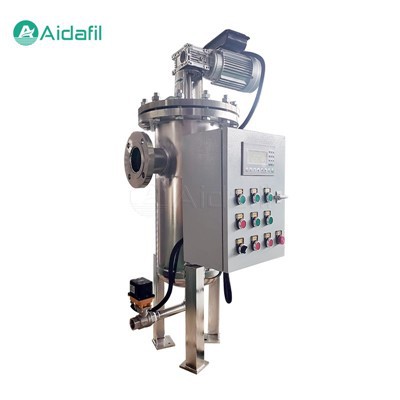

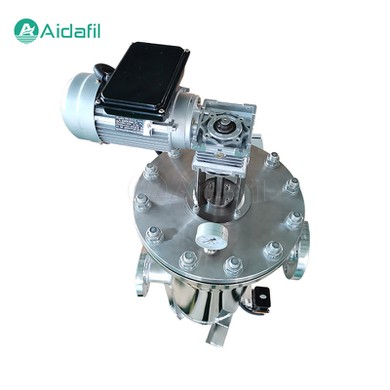

Easy Handling Automatic Self-Cleaning Filter

The easy handling automatic self-cleaning filter is a type of advanced filtration equipment designed to automatically clean the filter media, ensuring efficient removal of suspended solids, particles, and other impurities from water or other fluids. The self-cleaning process is triggered either by a pressure drop across the filter or a set time interval, enabling continuous operation without the need for manual intervention.

Parameters

Maximum flow	20-3000m³/h
Minimum working pressure	0.2MPa(g)
Maximum working pressure	1.6MPa(g)
Maximum operating temperature	80°C
Filtration accuracy	10-3000μm
Filter mesh	304, 316L stainless steel
Filter housing	Carbon steel / 304, 316L stainless steel
Motor power	0.37-1.1KW
Voltage	380V 50Hz three-phase

Fundamental Principles and Components

An easy handling automatic self-cleaning filter operates on the principle of mechanical filtration, where a barrier (filter element) captures particulate matter while allowing clean fluid to pass through. The key components of such a system include:

a. Filter Housing

A robust, corrosion-resistant enclosure that houses the filter element and other internal components, ensuring safe operation and protecting against environmental factors.

b. Filter Element

Made of materials like sintered metal, woven or pleated fabric, or stainless steel mesh, the filter element serves as the primary barrier for capturing contaminants. Its pore size determines the filter's micron rating, which specifies the smallest particles it can effectively remove.

c. Automatic Cleaning Mechanism

The core feature distinguishing self-cleaning filters from conventional ones, this mechanism triggers and executes the cleaning process without manual intervention.

d. Control System

Incorporating sensors, valves, and programmable logic controllers (PLCs), the control system monitors filter performance, detects when cleaning is necessary, and initiates the appropriate cleaning cycle.

e. Drain / Blowdown Valve

Facilitates the discharge of contaminated fluid or air during the cleaning process.

Operational Mechanisms

The easy handling automatic self-cleaning filter operates in two primary modes: filtration and cleaning.

a. Filtration Mode. In this mode, the unfiltered fluid enters the filter housing and flows through the filter element. Contaminants are captured, while clean fluid exits the system for further use or processing. The control system continually monitors pressure differential across the filter element, a parameter that increases as contamination accumulates.

b. Cleaning Mode. Once the pressure differential reaches a predetermined setpoint, indicating sufficient contamination, the control system activates the cleaning mechanism. Depending on the design, this may involve reversing the flow, activating rinse jets, rotating or oscillating the filter element, or deploying mechanical scrapers. The cleaning process lasts only a few seconds, after which the filter returns to the filtration mode. The dislodged contaminants are flushed out through the drain/blowdown valve.

Applications

The easy handling automatic self-cleaning filter finds extensive application across various industries due to their versatility, efficiency, and minimal maintenance requirements:

a. Industrial Processes

In chemical processing, petrochemicals, food and beverage, pharmaceuticals, and power generation, self-cleaning filters protect critical equipment (e.g., pumps, heat exchangers, turbines) from damage caused by suspended solids.

b. Irrigation and Agriculture

They ensure the supply of clean water for irrigation systems, reducing clogging issues and prolonging the life of sprinklers and drip emitters.

c. Municipal Water Treatment

Self-cleaning filters serve as pretreatment stages for drinking water plants, removing larger particles before finer filtration or disinfection processes.

d. HVAC Systems

They protect cooling towers, chillers, and boilers from scale formation and fouling, improving energy efficiency and system lifespan.

e. Swimming Pools and Aquatic Facilities

These filters maintain water clarity and hygiene by automatically removing debris and microorganisms.

Benefits

The adoption of the easy handling automatic self-cleaning filter offers numerous advantages over traditional, manually cleaned filters:

a. Continuous Operation

By automatically initiating cleaning cycles, self-cleaning filters minimize downtime and ensure uninterrupted fluid flow, enhancing overall process efficiency.

b. Reduced Maintenance Requirements

Eliminating the need for frequent manual cleaning or filter replacement, self-cleaning filters save time, labor, and maintenance costs.

c. Consistent Filtration Performance

The automated cleaning process maintains a stable pressure differential across the filter element, ensuring consistent filtration quality throughout its operational life.

d. Energy Efficiency

By preventing clogging and maintaining optimal flow rates, self-cleaning filters contribute to reduced energy consumption in pumping and processing systems.

e. Environmental Sustainability

By minimizing water waste associated with frequent backwashing in traditional systems, self-cleaning filters promote water conservation and reduce effluent discharge.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
