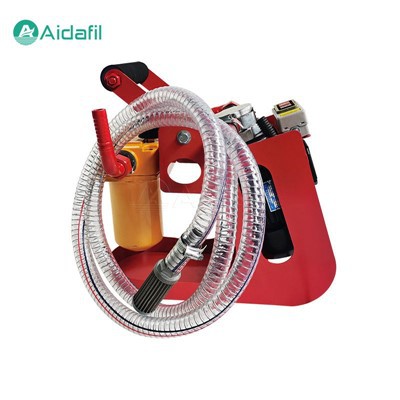

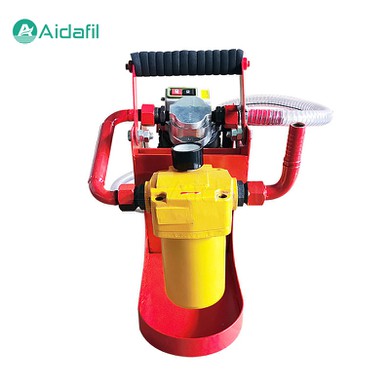

Fine Quality Small Flow Ultra-Portable Handheld Oil Purifier

The fine quality small flow ultra-portable handheld oil purifier is designed with portability in mind. Weighing only a fraction of traditional oil purifiers, this handheld device is easy to carry and can be transported to any location, whether it's a remote job site, a factory floor, or even a vehicle. Its compact size allows for convenient storage and quick deployment, eliminating the need for extensive setup and teardown processes.



Despite its small size, the small flow ultra-portable handheld oil purifier is anything but underpowered. It features a state-of-the-art filtration system that effectively removes contaminants such as particles, water, and sludge from the oil. This not only improves the oil's quality but also ensures that machinery operates at peak performance, reducing the risk of unexpected breakdowns and extending its lifespan.



The oil purifier's small flow design is particularly noteworthy. Traditional oil purifiers often require large volumes of oil to be filtered, which can be inefficient and time-consuming. The fine quality small flow ultra-portable handheld oil purifier, on the other hand, is optimized for low-flow applications, making it an ideal choice for machines with smaller oil capacities or for situations where oil needs to be filtered intermittently. Its ability to purify oil efficiently, even at low flow rates, sets it apart from competitors and provides users with unparalleled flexibility.



In addition to its advanced filtration capabilities, the small flow ultra-portable handheld oil purifier is also built to last. It features high-quality components and construction, ensuring durability and reliability even in the toughest environments. The purifier's housing is made from robust materials that can withstand rough handling and harsh conditions, while its internal components are designed for maximum efficiency and minimal maintenance. This means that users can count on the Fine Quality Small Flow Ultra-Portable Handheld Oil Purifier to provide consistent and reliable performance, year after year.



The fine quality small flow ultra-portable handheld oil purifier offers excellent value for money. Its compact size, efficient filtration system, and user-friendly design make it an investment that pays off in reduced downtime, extended equipment lifespan, and improved overall performance. Its versatility and portability also mean that it can be used across various industries and applications, providing a cost-effective solution for oil purification needs.



Parameters

Rated Pressure	0.34 Mpa
Original Pressure Loss	≤ 0.02 Mpa
Coarse Filtration Accuracy	40 meshes
Fine Filtration Accuracy	3, 5, 10, 20, 30, 40 μm
Use Temperature	6 ~ 80 °C
Recommended Viscosity	10 ~ 160 cSt
Power Supply	AC 380V three-phase, AC 220V three-phase



How to operate

1. Place the machine on a relatively flat ground or in a car box, carefully check whether the whole machine is loose, and pay special attention to the connection between the motor and the oil pump, which must be fastened and concentric.

2. Connect the power supply correctly and start the oil pump. Check whether the rotation direction is correct. Otherwise, change the power supply phase sequence.

3. Connect the oil inlet and outlet pipes and tighten them. The oil outlet pipe and oil outlet must be fastened. Otherwise, as the pressure increases, the oil outlet pipe will be washed away, adding unnecessary trouble.

4. After fixing the oil inlet and outlet pipes, start the motor button, and the oil pump starts to work normally. The oil filtered out through the third stage is the purified oil.

5. When a barrel (box) of oil has been pumped and another barrel (box) of oil needs to be pumped, it is necessary to act quickly to prevent the oil pump from idling for a long time.



Features and Benefits

1. Advanced filtration technology

2. Ultra-portable design

3. Easy to use

4. Cost-effective

5. Eco-friendly



Application

1. Manufacturing. Ensuring clean lubricants for CNC machines, robotics, and production line equipment.

2. Construction & mining. Maintaining hydraulic systems, excavators, and heavy machinery in harsh, dusty environments.

3. Marine & offshore. Purifying oils in ship engines, thrusters, and other critical marine equipment.

4. Power generation. Protecting turbines, transformers, and auxiliary systems from contamination-induced failures.

5. Agriculture. Servicing tractors, harvesters, and other farm equipment to maintain optimal performance.



FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
