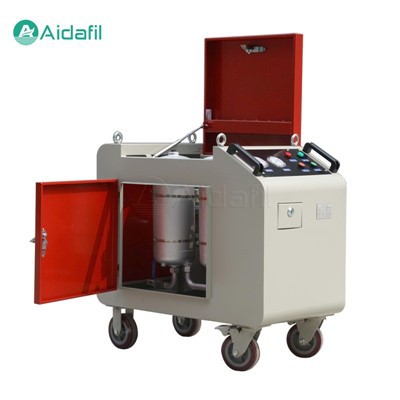

Explosion-Proof Box Type Oil Purifier

The explosion-proof box type oil purifier is a movable type of oil filter machine with its own oil tank, especially suitable for hydraulic systems with precision components such as servo valves and proportional relief valves. The box type oil purifier, compared with the conventional oil purifier, covers all equipment and components and looks similar to a box, hence the name box type oil purifier. The box-type oil purifier can isolate the environment inside and outside the box, and can protect the use site or the oil purifier itself.



The explosion-proof box type oil purifier's core functionality lies in its ability to remove contaminants from the oil, improving its quality and extending its useful life. Contaminants such as water, gases, and solid particles can significantly degrade the performance of lubricating oil, leading to increased wear and tear on machinery and reduced operational efficiency. The purifier effectively removes these impurities, restoring the oil to its optimal condition.



The explosion-proof design of the purifier is a crucial feature, particularly in industries where flammable or explosive atmospheres are a concern. The enclosure is constructed using materials that are resistant to ignition and explosion, providing a safe working environment even under extreme conditions. This ensures that the purifier can be safely operated in high-risk areas without the risk of fire or explosion.



In addition to its safety features , the explosion-proof box type oil purifier also offers exceptional performance in terms of purification efficiency. The advanced filtration system used in the purifier effectively removes even the smallest particles from the oil, ensuring a high level of cleanliness. The dehydration and degassing processes further enhance the quality of the oil, removing water and gases that can cause corrosion and oxidation.



Product parameters

Rated flow rate : 32L/min - 100 L/min

Rated pressure : 0.6MPa

Initial pressure loss : ≤0.02MPa

Fine filtration rating : 3μm, 5μm, 10μm, 20μm

Coarse filtration precision : 100μm

Differential pressure : 0.2MPa

Working temperature : 5°C - 80°C

Recommended viscosity : 10 - 160cSt

Voltage : AC 380V (Three-phase), 50Hz

Motor power : 0.75kw - 2.2kw

Weight : 135kg - 182kg



Working Principle

The working process of the explosion-proof box type oil purifier mainly includes the following steps:

1. The oil to be treated is pumped into the purifier from the oil tank.

2. The oil passes through a coarse filter, which removes larger particles and impurities.

3. The filtered oil then enters a heater, where it is heated to a specific temperature to improve its fluidity.

4. The heated oil proceeds to a vacuum separator, where water and gases are rapidly evaporated and discharged under vacuum conditions.

5. The oil is then passed through multiple stages of precision filters to remove microscopic particles and impurities.

6. Finally, the purified oil returns to the oil tank, ready for use in the equipment.



Application Fields

The explosion-proof box type oil purifier is widely used in various industries and applications, such as:

1. Power Generation Industry: For filtering and purifying transformer oil, turbine oil, and other mineral oils in power plants, ensuring the stable operation of equipment and improving the efficiency of power generation.

2. Petrochemical Industry: For purifying oils used in petrochemical processes, reducing the risk of explosions and improving the safety and efficiency of production.

3. Mining Industry: For removing impurities, water, and gases from oils used in mining equipment, prolonging the service life of the equipment and reducing maintenance costs.



Advantages and Benefits

1. Efficient removal of impurities, water, and gases, improving oil cleanliness and performance.

2. Utilizes vacuum dehydration technology for effective water removal with low energy consumption.

3. Multi-stage filtration design effectively removes microscopic particles and impurities.

4. Advanced adsorbent desulfurization technology reduces oil sulfur content, extending its service life.

5. Compact, explosion-proof design ensures safe operation in hazardous environments.



FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
