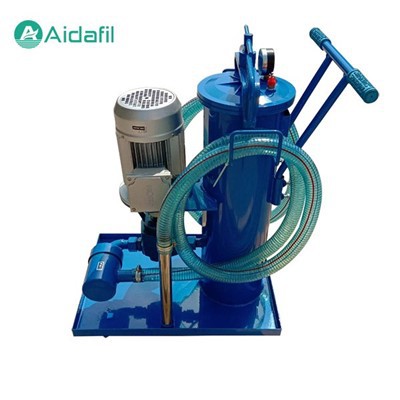

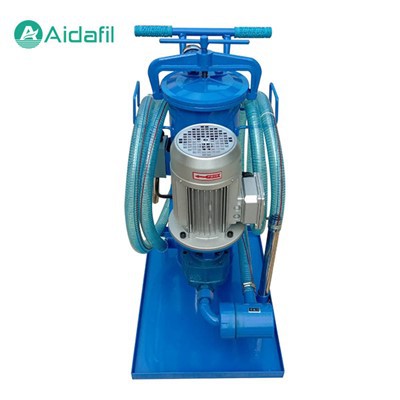

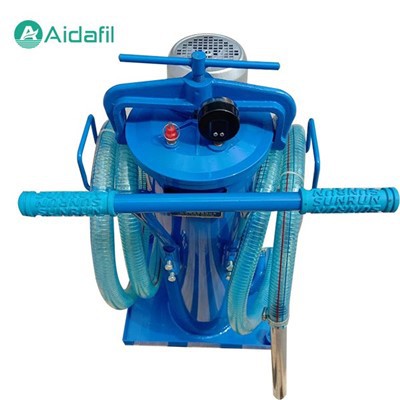

Lube Oil Purifier
Lobe Oil Purifier separates fine precipitates and free water from the lubricating oil. High gravity causes solids and water to accumulate on the purifier. Clean oil flows continuously out of the purifier from the central passage, while water flows out of a separate chamber.
Lobe Oil Purifier separates fine precipitates and free water from the lubricating oil. High gravity causes solids and water to accumulate on the purifier. Clean oil flows continuously out of the purifier from the central passage, while water flows out of a separate chamber.
Advantages:
Simultaneous separation of water and sediment
Water and sludge separation efficiency is high.
Low operating cost, no need to change media.
Automatic operation, low labor cost.
Up to 30 years service life.
Corrosion resistance of most stainless steel bowl parts.
Function:
Lobe Oil Purifier is especially designed and used for contaminated lube oil cleaning treatment, like hydraulic oil, gear oil, compressor oil, coolant oil, mechanical oil etc. And the oil purifier machine will have a heating system, electrical control system, filtering system.
Technical parameter:
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) |
25 |
50 |
100 |
150 |
200 |
400 |
| Rated pressure(MPa) | 0.6 | |||||
| Initial pressure loss (Mpa) | ≤0.1 | |||||
| Filtered water content | ≤100 | |||||
| Coarse filtration( μ m) |
100 |
|||||
| Grade 1 filter rating( μ m) | 10、20 | |||||
|
Grade 2 filter rating( μ m) |
3、5 | |||||
| Pressure differentials | 0.2Mpa | |||||
| Working temperature(°C) | 25- 80 | |||||
| Recommended viscosity(cSt) | 10-120 | |||||
| Voltage(V) | AC 380V(Three-phase)、50Hz | |||||
| Motor power(kw) |
0.75 |
1.1 |
2.2 |
4 |
5.5 |
13 |
| Weight(kg) |
150 |
200 |
300 |
520 |
860 |
2860 |
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
