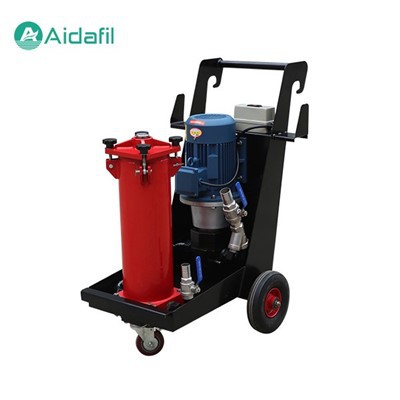

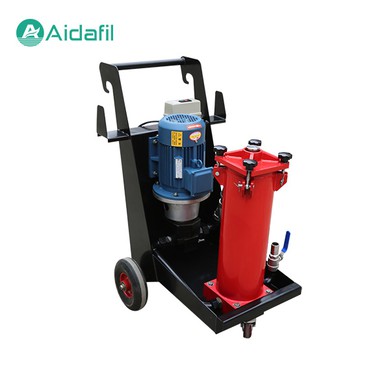

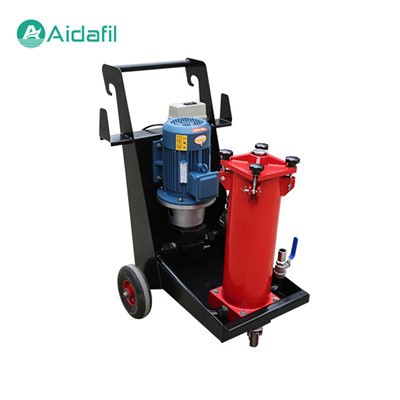

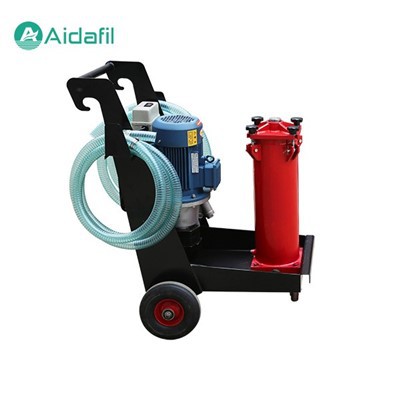

Mobile Oil Filter Machine
Mobile Oil Filter Machine is compact and convenient in structure and light in weight. It filters minerals and synthetic base oils, including hydraulic oil, gear oil and turbine oil.
Mobile Oil Filter Machine is compact and convenient in structure and light in weight. It filters minerals and synthetic base oils, including hydraulic oil, gear oil and turbine oil.
Functions:
To remove harmful particulates, water and varnish.
Filtering new and used oil.
Transferring filtered oil.
Cleaning & transferring lubricants.
Draining used oil.
Contamination control.
Appplications:
Transfer and filter new oil.
Dehydration.
Clean stored oil.
System drainage.
Pipeline flushing.
Maintenance and equipment reconstruction flushing.
Flushing during commissioning of equipment.
Parameters
| Model | AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) | 25 | 32 |
40 |
50 | 63 | 100 | 150 |
| Rated pressure(MPa) | 0.6 | ||||||
| Mpa(MPa) | ≤0.02 | ||||||
| Coarse filter precision(μm) | 100 | ||||||
| Grade 1 filter rating(μm) | 10、20、40 | ||||||
| Grade 2 filter rating(μm) | 3、5、 10、S-W | ||||||
| Differential pressure | 0.2Mpa | ||||||
| Working temperature(°C) | 5-80 | ||||||
|
Recommended viscosity(cSt) |
10- 160 | ||||||
|
Voltage(V) |
AC 380V(Three-phase)、50Hz | ||||||
| Motor power(kw) | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 | 3.0 |
| Weight(kg) | 46 | 78 | 90 | 96 | 102 | 120 | 160 |
| Dimensions(mm) | 520x350 x950 | 520 x350x950 | 720x 680 x 1020 | 720 x<680 x 1020 | 720 x 680x 1020 | 720x 750x 1020 | 720x750x 122 |
