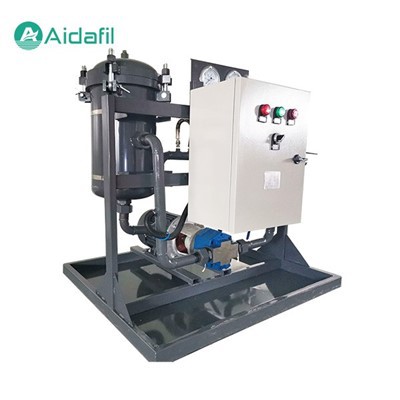

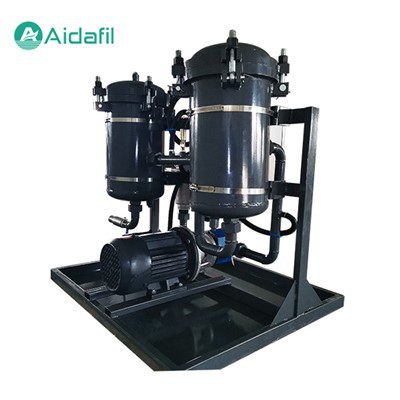

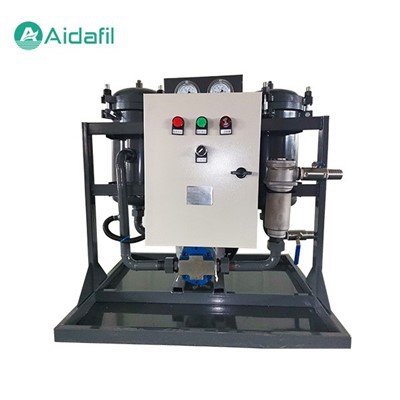

Machine Oil Purifier
The oil purifier removes impurities such as dust, metal particles, carbon deposits and soot particles from the oil to protect the engine.
The oil purifier removes impurities such as dust, metal particles, carbon deposits and soot particles from the oil to protect the engine.
Features:
● Use coalescence oil mist separator to completely remove gas from oil.
● Low noise and long life oil transportation system.
● Adopt thermal radiation mode and constant temperature control.
● Adopt float valve and photoelectric oil level control, without manual supervision.
● Adopt French vacuum defoaming technology to avoid oil leakage.
Applications:
This oil purifier is widely used in machinery manufacturing, oil production and processing, oil, hydraulic equipment, such as large oil pump stations, construction machinery hydraulics, power facilities construction preparation, lifting and transportation machinery, machine tools, metallurgy, chemical industry, agricultural machinery and so on. Purify and filter the hydraulic oil, lubricating oil and cutting oil of the machine.
Parameters
| Model | AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) | 25 | 32 |
40 |
50 | 63 | 100 | 150 |
| Rated pressure(MPa) | 0.6 | ||||||
| Mpa(MPa) | ≤0.02 | ||||||
| Coarse filter precision(μm) | 100 | ||||||
| Grade 1 filter rating(μm) | 10、20、40 | ||||||
| Grade 2 filter rating(μm) | 3、5、 10、S-W | ||||||
| Differential pressure | 0.2Mpa | ||||||
| Working temperature(°C) | 5-80 | ||||||
|
Recommended viscosity(cSt) |
10- 160 | ||||||
|
Voltage(V) |
AC 380V(Three-phase)、50Hz | ||||||
| Motor power(kw) | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 | 3.0 |
| Weight(kg) | 46 | 78 | 90 | 96 | 102 | 120 | 160 |
| Dimensions(mm) | 520x350 x950 | 520 x350x950 | 720x 680 x 1020 | 720 x<680 x 1020 | 720 x 680x 1020 | 720x 750x 1020 | 720x750x 122 |
