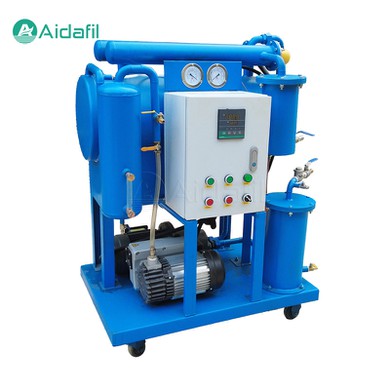

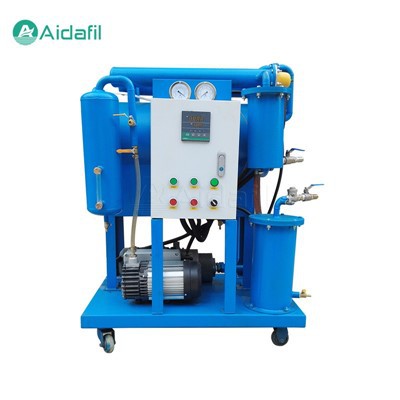

High Viscosity Vacuum Oil Purifier

The AOP series high viscosity vacuum oil purifier handles oils with higher resistance to flow, commonly referred to as "high viscosity." High-viscosity fluids do not flow as easily as their lower viscosity counterparts, making them more challenging to filter. The high viscosity vacuum oil purifier is designed with stronger pumps and specialized filter elements that can cope with the increased resistance without clogging or becoming ineffective.



The AOP series high viscosity vacuum oil purifier is used in machinery, metallurgy, mining, petroleum, chemical industry, electric power, railway and other fields to purify various high viscosity lubricants. It can quickly remove moisture, impurities and volatiles (such as ammonia) and other harmful components in the oil, improve the quality of the oil and restore its performance.



Product features

1. Use a special oil pump to transport oil.

2. Unique degassing and dehydration system quickly separates moisture and gas from oil.

3. Multi-stage filtration, large pollution capacity and long service life of the filter element, automatic detection of filter element pollution.

4. The heating system adopts an optimized piping design to ensure uniform heating and stable oil temperature.

5. Automatic constant temperature control system, automatic liquid level control system, automatic defoaming control system, automatic pressure protection system and excellent configuration ensure high-performance operation of the equipment.

6. This machine features user-friendly design, low noise, simple operation, long maintenance intervals, low energy consumption, and cost savings.

7. Equipped with filter element replacement index, filter element saturation shutdown device.

8. Equipped with leakage and overload load shutdown devices to protect the motor.



Technical parameters

Item		Unit	AOP-20	AOP-30	AOP-50	AOP-100	AOP-150	AOP-200	AOP-300
Flow rate		L/min	20	30	50	100	150	200	300
Working Vacuum		MPa	-0.08 ~ -0.098	-0.08 ~ -0.098	-0.08 ~ -0.098	-0.08 ~ -0.098	-0.08 ~ -0.098	-0.08 ~ -0.098	-0.08 ~ -0.098
Working Pressure		MPa	≤ 0.5	≤ 0.5	≤ 0.5	≤ 0.5	≤ 0.5	≤ 0.5	≤ 0.5
Working Temperature		°C	20 ~ 80	20 ~ 80	20 ~ 80	20 ~ 80	20 ~ 80	20 ~ 80	20 ~ 80
Power Supply		V	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Working Noise		dB(A)	≤ 78	≤ 78	≤ 78	≤ 78	≤ 78	≤ 78	≤ 78
Total power		kw	24+3	24+3	30+5	40+5	3*30+5	3*40+6	3*60+10
Inlet / Outlet		mm	25	25	32	40	50	50	65
Weight		kg	400	450	550	700	850	1000	1200
Dimensions - Length		cm	107	107	120	152	175	175	180
Dimensions - Width		cm	100	100	115	140	155	155	170
Dimensions - Height		cm	160	160	175	200	220	220	225
Oil treatment index	water content in oil	%	None	None	None	None	None	None	None
	Gas content in oil	%	≤ 0.1 (GB/T423)	≤ 0.1 (GB/T423)	≤ 0.1 (GB/T423)	≤ 0.1 (GB/T423)	≤ 0.1 (GB/T423)	≤ 0.1 (GB/T423)	≤ 0.1 (GB/T423)
	Mechanical impurities	%	None	None	None	None	None	None	None



Benefits

The benefits of using a high viscosity vacuum oil purifier are manifold:

1. Extended Oil Life: By removing impurities and contaminants, the lifespan of the oil is extended, reducing the need for frequent oil changes and saving on maintenance costs.

2. Improved Fluid Performance: Cleaner oil maintains its intended properties better, leading to more efficient machinery operation and reduced wear on moving parts.

3. System Protection: Removing particulates and moisture helps prevent corrosion and damage to critical components, ensuring the longevity of the system.

4. Energy Efficiency: A well-maintained fluid system operates more efficiently, which can lead to energy savings over time.

5. Environmentally Friendly: Reducing the frequency of oil changes and disposing of used oil responsibly can significantly reduce the environmental impact of industrial processes.



FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
