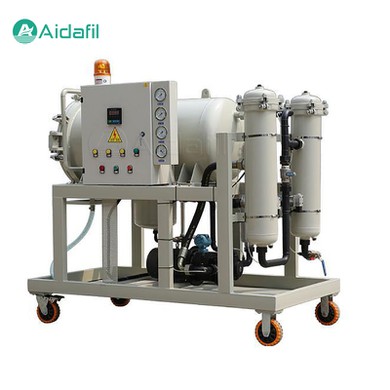

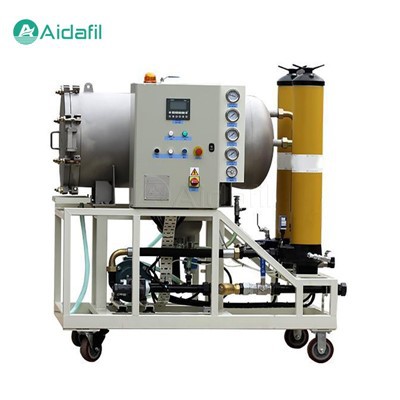

Coalescence Dehydration Oil Purifier

The AOP-D series coalescence dehydration oil purifier is optimized and designed by using a coalescing filter element made of special hydrophilic materials and a dehydration filter element made of hydrophobic materials, configured in a certain proportion. According to the different physical effects of water mixed in the oil, the free water and emulsified water in the oil are coalesced into larger diameter water droplets after passing through the coalescing filter element, and then a large number of water droplets are separated through the dehydration filter element, and are automatically discharged under the action of gravity. This system integrates functions such as automatic demulsification, high-efficiency dehydration, and precision filtration. It can effectively filter out moisture and impurities in the oil and is suitable for online automatic filtration of turbine oil and lubricating oil systems, and is especially effective for online filtration of leaking units.



Product highlights

1. The whole machine is specially designed, with beautiful appearance, low power and low operating cost.

2. Integrate two functions: precision filtration and high-efficiency dehydration.

3. Continuous treatment based on large flow, strong purification capacity, high dehydration efficiency.

4. Absolutely physical purification, which does not change the physical and chemical properties of the oil, prolonging the service life of the oil.

5. Automatic drainage, which means that the machine could be totally independent of operators.

6. The impurities are filtered in multiple layers. and the coarse filter element, protective filter element and fine filter element are all made from imported high-grade materials, which could reach a better control performance of particle sizes.



Product features

1. Improved oil quality: By removing water and impurities, the coalescence dehydration oil purifier improves the oil's quality, prolonging its service life and enhancing its performance.

2. Reduced equipment wear: The removal of water and impurities from the oil reduces equipment wear and tear, extending the lifespan of machinery and equipment using the treated oil.

3. Cost-effective: The use of a coalescence dehydration oil purifier reduces the need for frequent oil replacements, resulting in cost savings for businesses.

4. Environmental benefits: By promoting oil recycling and reducing waste, the coalescence dehydration oil purifier contributes to a more sustainable and environmentally friendly industrial operation.



Product parameters

Index		Unit	AOP-D1	AOP-D2	AOP-D3	AOP-D5	AOP-D8	AOP-D10
Flow Rate		L/H	600	1200	1800	3000	4800	6000
Working Pressure		MPa	≤ 0.3
Working Power Supply			380V 50HZ, 3Ph (or according to customers' need)
Working Noise		dB(A)	≤ 65~ 80
Total Power		Kw	0.75	0.75	0.75	2.2	2.2	3
Weight		kg	350	380	420	550	650	700
Dimensions	Length	mm	1300	1300	1500	1500	1650	1650
	Width	mm	750	750	950	1050	1200	1300
	Height	mm	1450	1450	1500	1500	1550	1550
After Purification	Demulsification value	min	≤ 15/min (GB/F7035)
	Water Content	ppm	≤ 100
	Cleanness		≤ NAS 6



Optional configuration

1. PLC (Intelligent Programmable Logic Control System): Touch screen man-machine dialogue interface with dynamic display.

2. Imported parts including imported brand vacuum pump set, motor oil pump set, filter elements, electrical components, instruments.

3. Flowmeter

4. Online micro water meter with suitable explosion-proof grade, selected from Ex d II,Ex d I,BT4,CT4 according to actual working conditions.



Product application

1. Purification of steam turbine oil and transformer oil

2. Water removal and impurity removal of hydraulic lubrication system oil

3. Comprehensively improve the cleanliness of the system by connecting to the hydraulic lubrication system



FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
