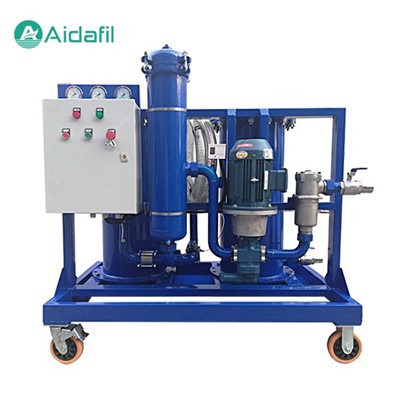

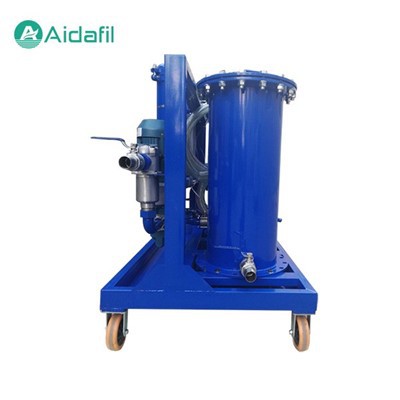

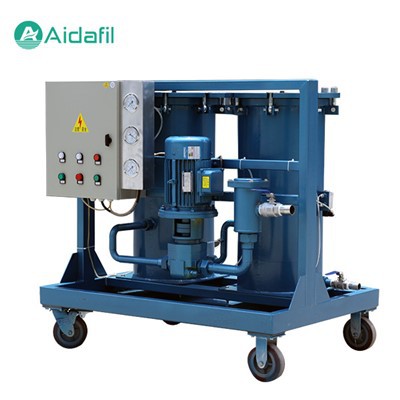

Used Hydraulic Oil Filtration Machine
Used hydraulic oil filtration machine is used to treat and regenerate high precision oils such as unqualified hydraulic oil, lubricating oil, refrigerator oil, antiwear hydraulic oil, heat conduction oil, quenching oil, cleaning oil, antirust oil, etc.
Used hydraulic oil filtration machine is used to treat and regenerate high precision oils such as unqualified hydraulic oil, lubricating oil, refrigerator oil, antiwear hydraulic oil, heat conduction oil, quenching oil, cleaning oil, antirust oil, etc.
Features:
Effectively remove iron, scales, dust, impurities, moisture and organic matter from inferior oil.
The demulsification ability is strong, it is easy to separate a large amount of moisture, and it is also easy to remove small moisture from the oil.
It is especially suitable for high viscosity lubricating oil, freezing machinery oil, hydraulic oil, gear oil and so on.
Advantages:
Strong ability to filter impurities, large area and deep precision filter material can remove fine particles in engine oil.
Automatic backwashing function: automatically clean the filter and capture a lot of impurities.
Using high-quality filter material, it has the characteristics of large scale inhibition ability, corrosion resistance, high temperature resistance, high mechanical strength, high impurity removal accuracy and long service life.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) |
25 |
50 |
100 |
150 |
200 |
400 |
| Rated pressure(MPa) | 0.6 | |||||
| Initial pressure loss (Mpa) | ≤0.1 | |||||
| Filtered water content | ≤100 | |||||
| Coarse filtration( μ m) |
100 |
|||||
| Grade 1 filter rating( μ m) | 10、20 | |||||
|
Grade 2 filter rating( μ m) |
3、5 | |||||
| Pressure differentials | 0.2Mpa | |||||
| Working temperature(°C) | 25- 80 | |||||
| Recommended viscosity(cSt) | 10-120 | |||||
| Voltage(V) | AC 380V(Three-phase)、50Hz | |||||
| Motor power(kw) |
0.75 |
1.1 |
2.2 |
4 |
5.5 |
13 |
| Weight(kg) |
150 |
200 |
300 |
520 |
860 |
2860 |
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
